Fuel Pump And Sender Assembly Connector End View

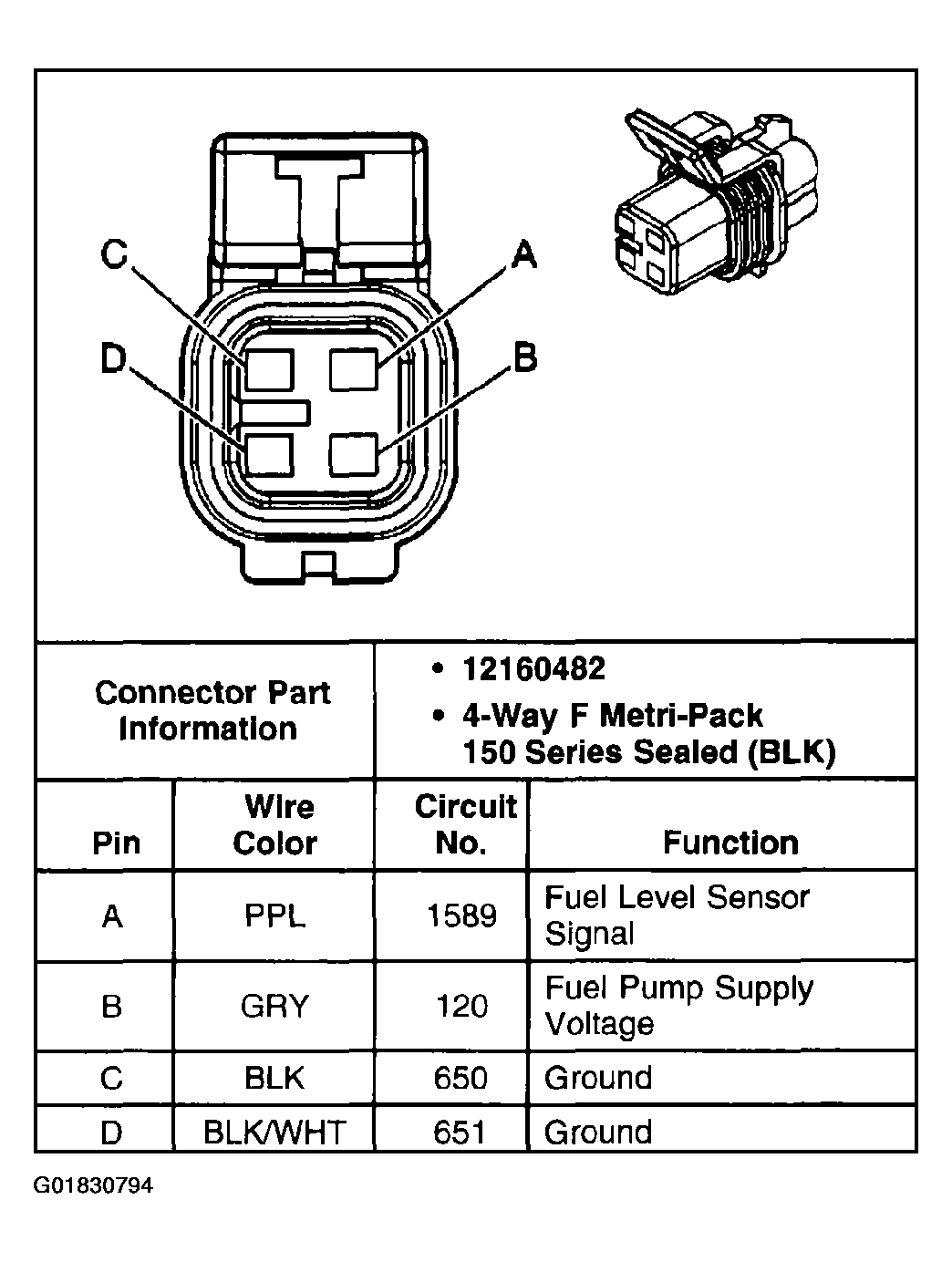

Fig 1: Fuel Pump And Sender Assembly
G01830794Courtesy of GENERAL MOTORS CORP.
