Sunroof Module Connector End View C1 (2 Of 2)

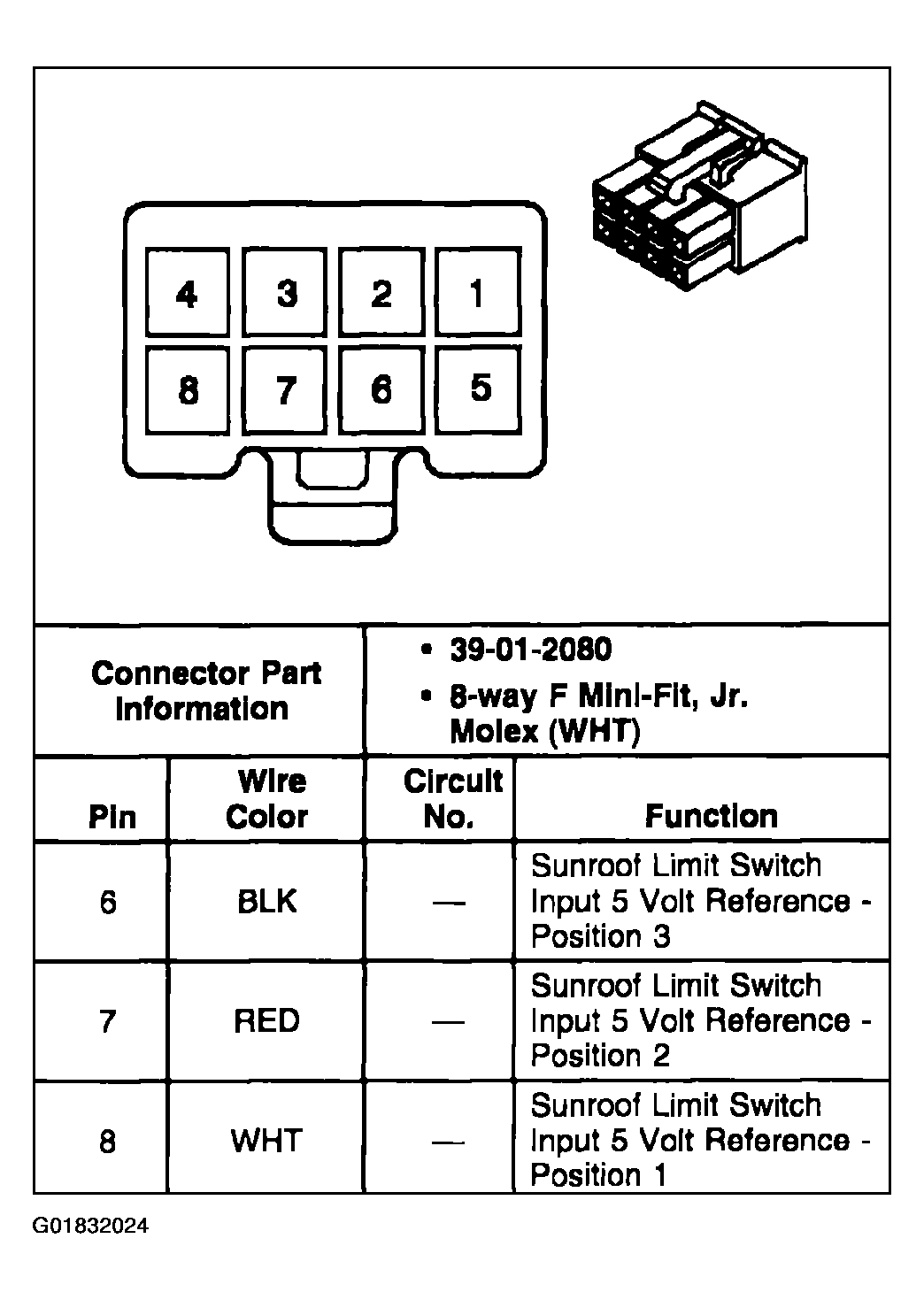

Fig 1: Sunroof Module C1 (2 Of 2)
G01832024Courtesy of GENERAL MOTORS CORP.
