Trip Odometer Reset Switch Connector End View
Trip Odometer Reset Switch Connector End View

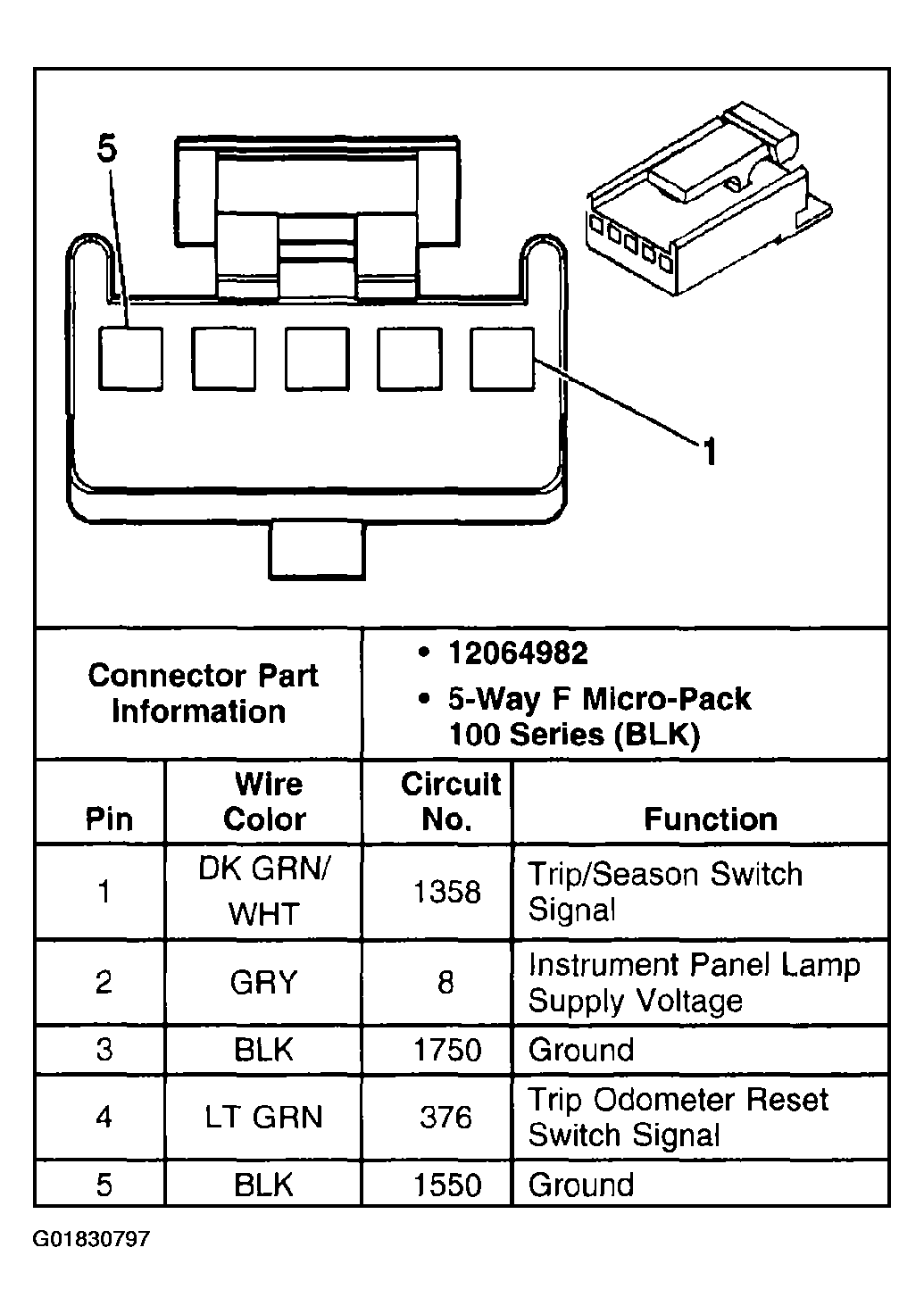

Fig 1: Trip Odometer Reset Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
