Retained Accessory Power (RAP) Component Views
Retained Accessory Power (RAP) Component Views

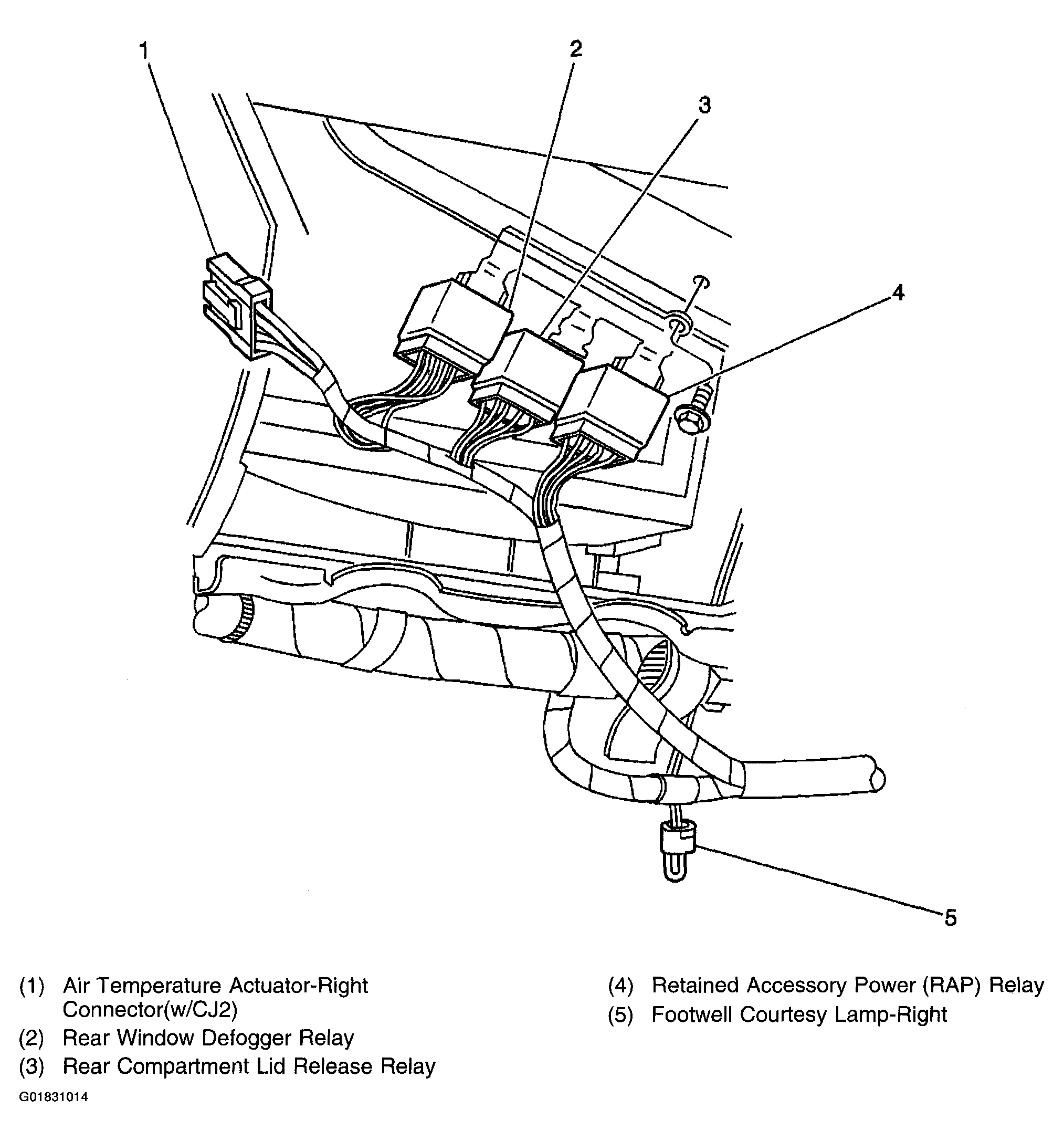

Fig 1: Right Side Of Instrument Panel Component View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
