Horns Component Views

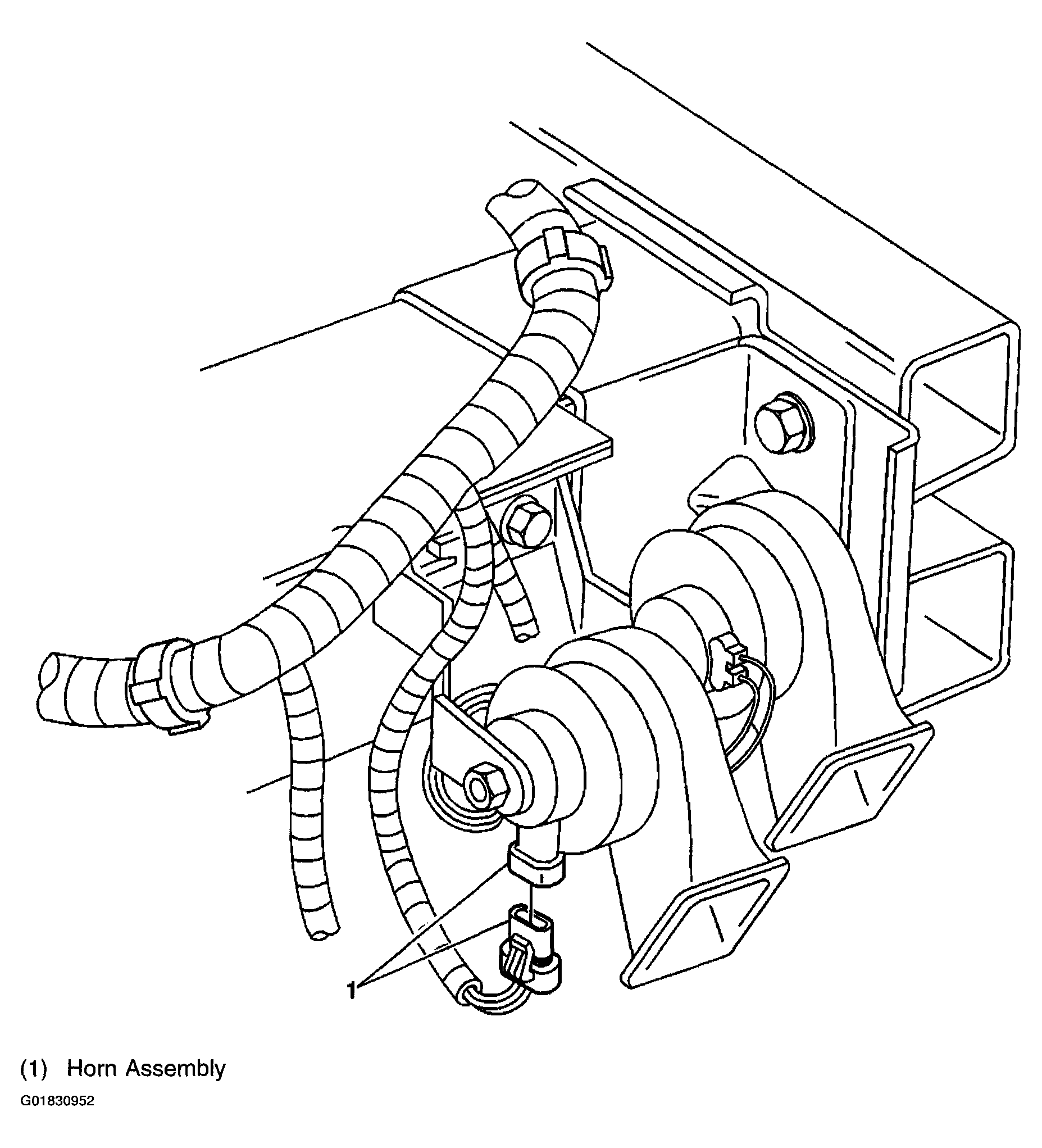

Fig 1: Right Front Frame Rail, Near Fender Component View
G01830952Courtesy of GENERAL MOTORS CORP.

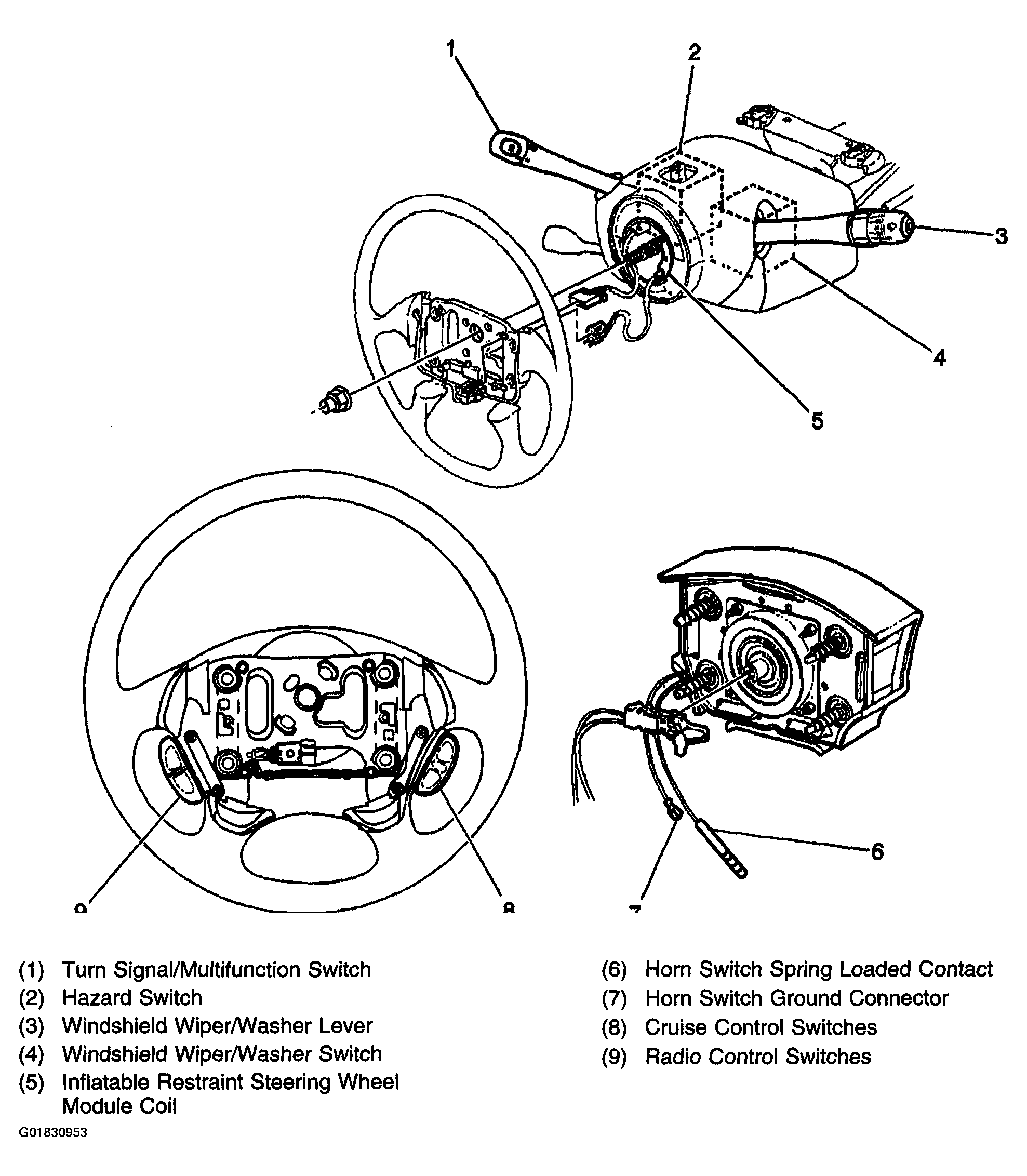

Fig 2: Left Side Of Instrument Panel Component View
G01830953Courtesy of GENERAL MOTORS CORP.
