Cellular Communication Connector End Views

Fig 1: Identifying Cellular Communication Connector End View

Courtesy of GENERAL MOTORS CORP.

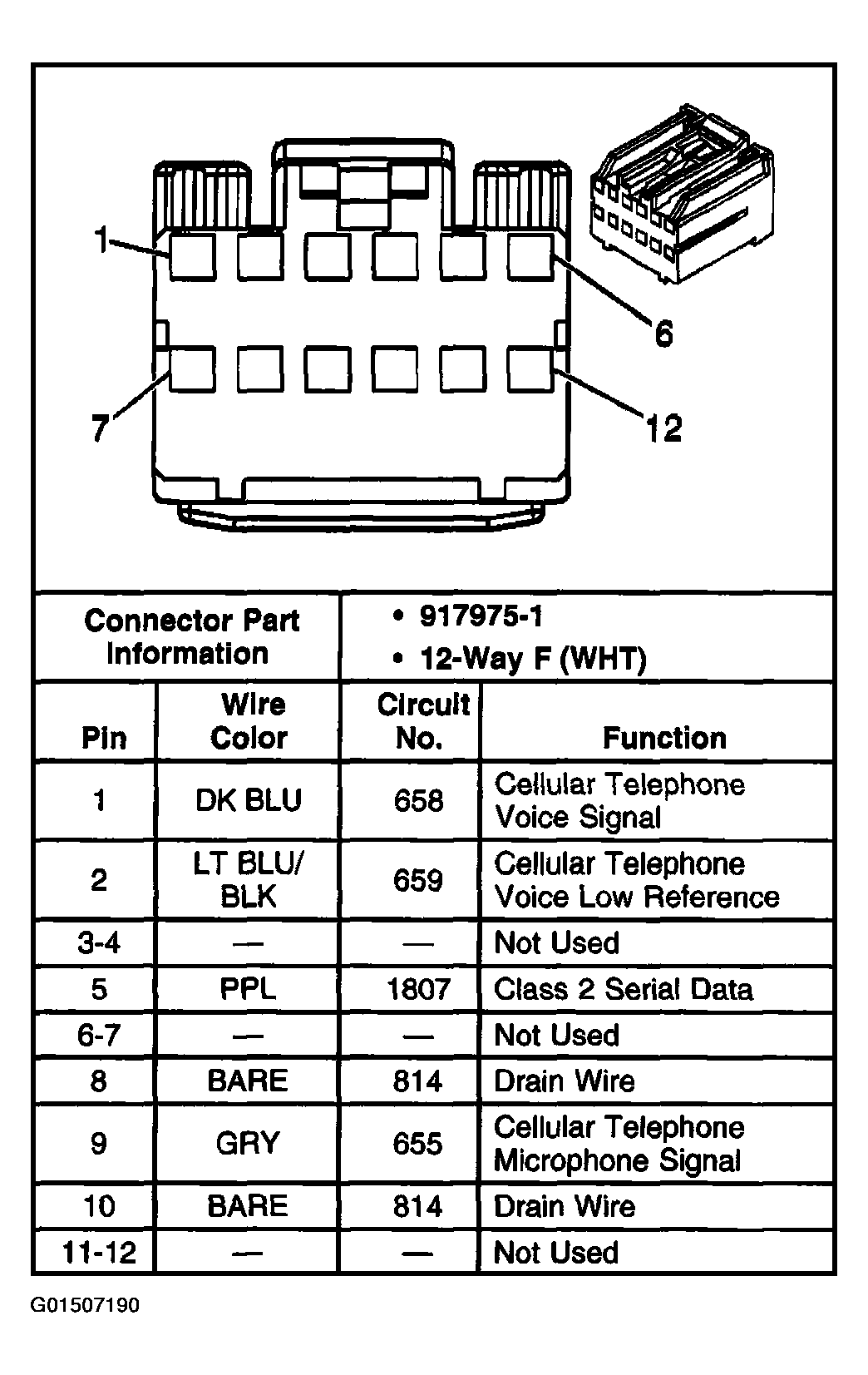

Fig 2: Identifying Vehicle Communication Integration Module Connector End View

Courtesy of GENERAL MOTORS CORP.
