Installation Procedure

Position the heated seat module (2) to the bottom of the seat cushion.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

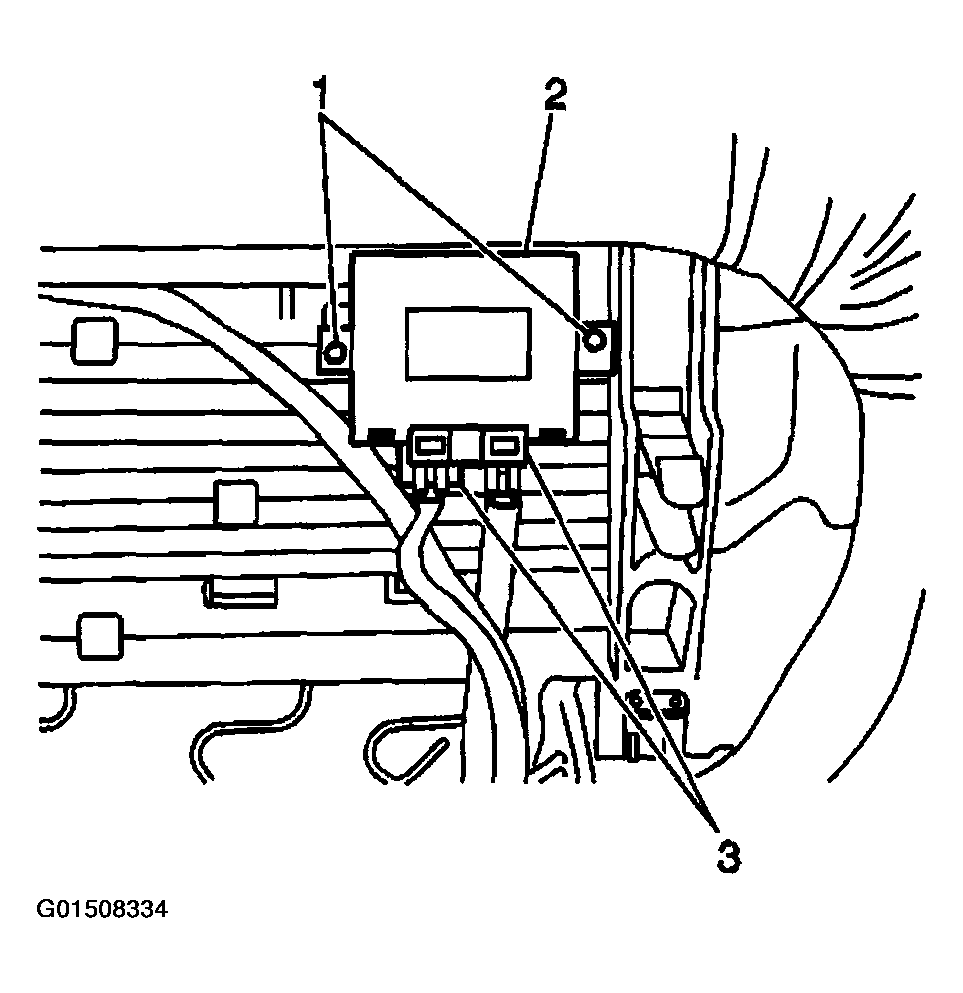

Fig 1: Installing Front Heated Seat Control Module
Courtesy of GENERAL MOTORS CORP.
Install the heated seat module fasteners.
Tighten

Tighten the fasteners to 2 N.m (18 lb in).
Install the electrical connectors (3) to the heated seat module (2).
Ensure the wiring harness is positioned in the same location in which it was removed.
Install the seat cushion. Refer to SEAT CUSHION REPLACEMENT - FRONT .
Enable the SIR system. Refer to SIR Disabling and Enabling Zone 7 or SIR Disabling and Enabling Zone 9 .
