Removal Procedure
- Lower the window to the full down position.
- Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
- Remove the door module. Refer to DOOR CONTROL MODULE REPLACEMENT .
- Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR .
- Remove the window inner belt sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT INNER .
- Connect a power source to the window motor and position the window half way down.
- Loosen the window regulator to window clamps.

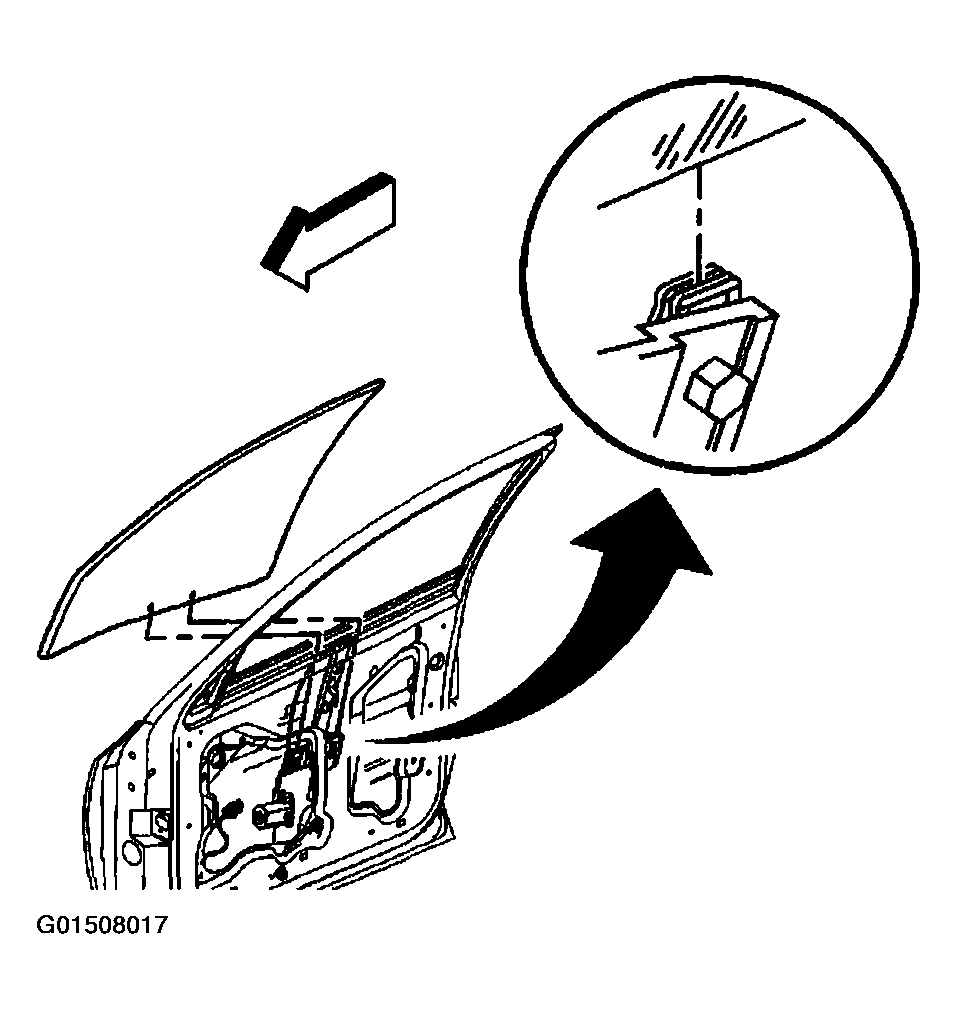

- Remove the window by tilting window forward then pulling the window up and out of the door.
