Power Window Schematics

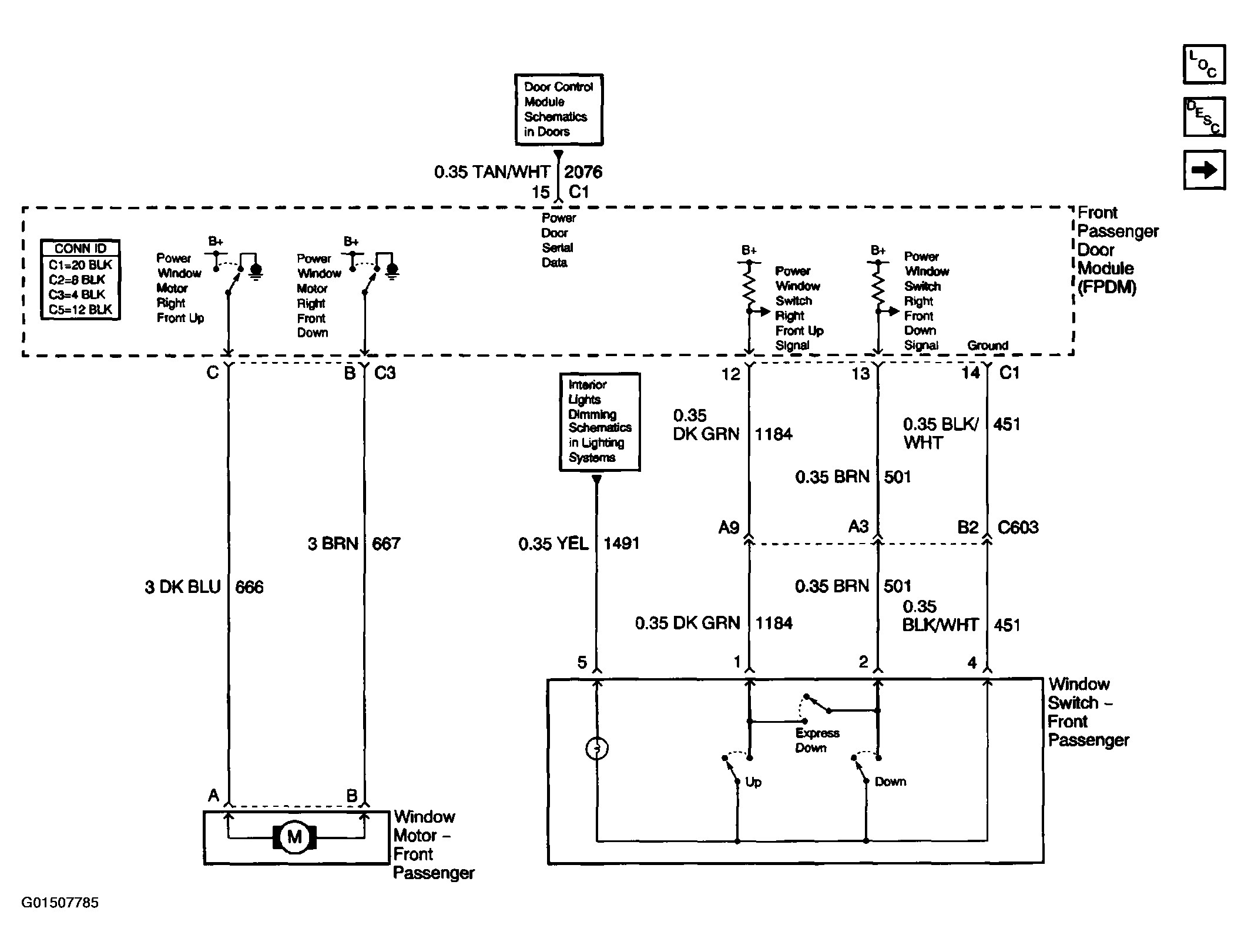

Fig 1: Power Window Wiring Schematic - Front Passenger Window Switch & Window Motor

Courtesy of GENERAL MOTORS CORP.

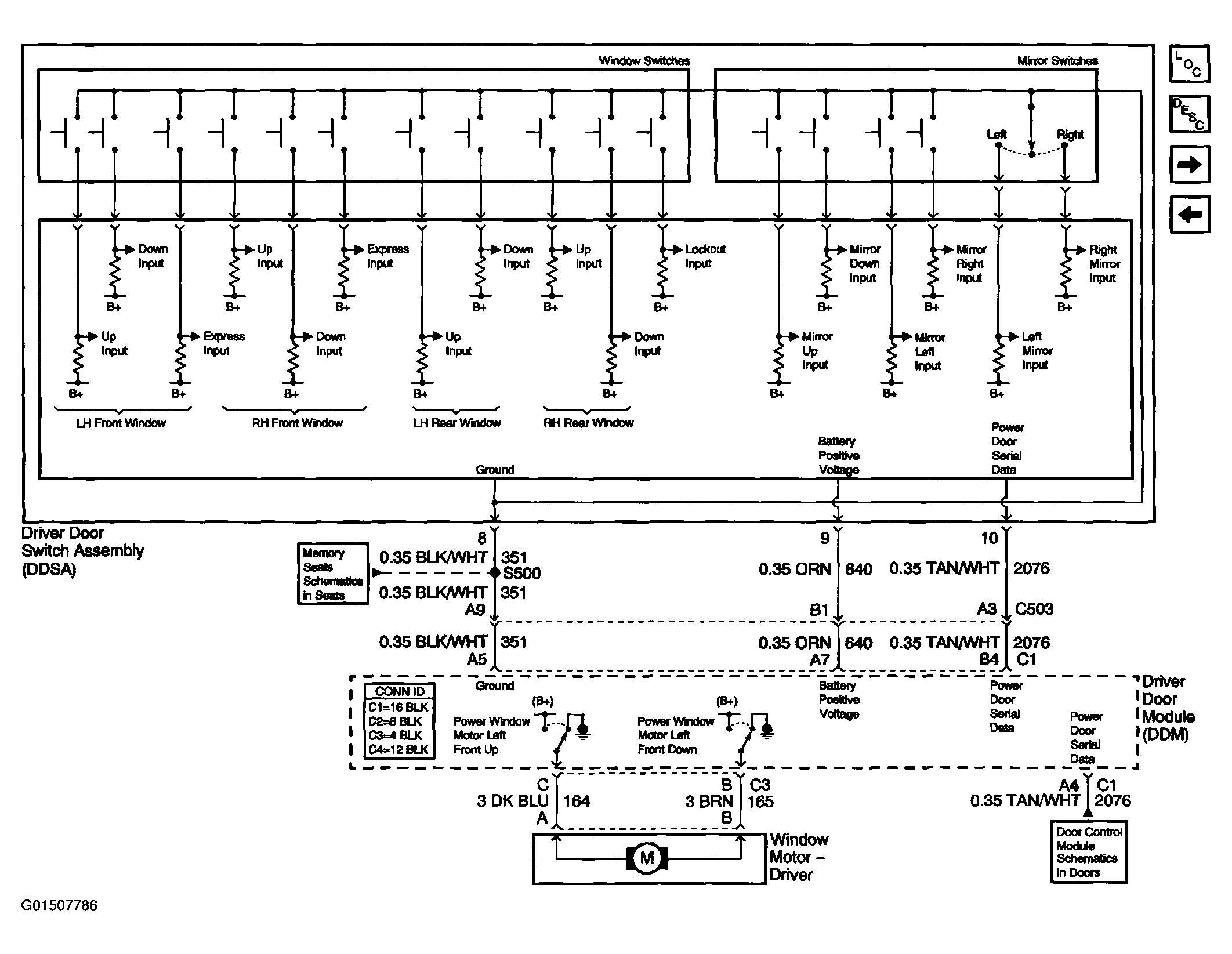

Fig 2: Power Window Wiring Schematic - Driver Door Switch Assembly

Courtesy of GENERAL MOTORS CORP.

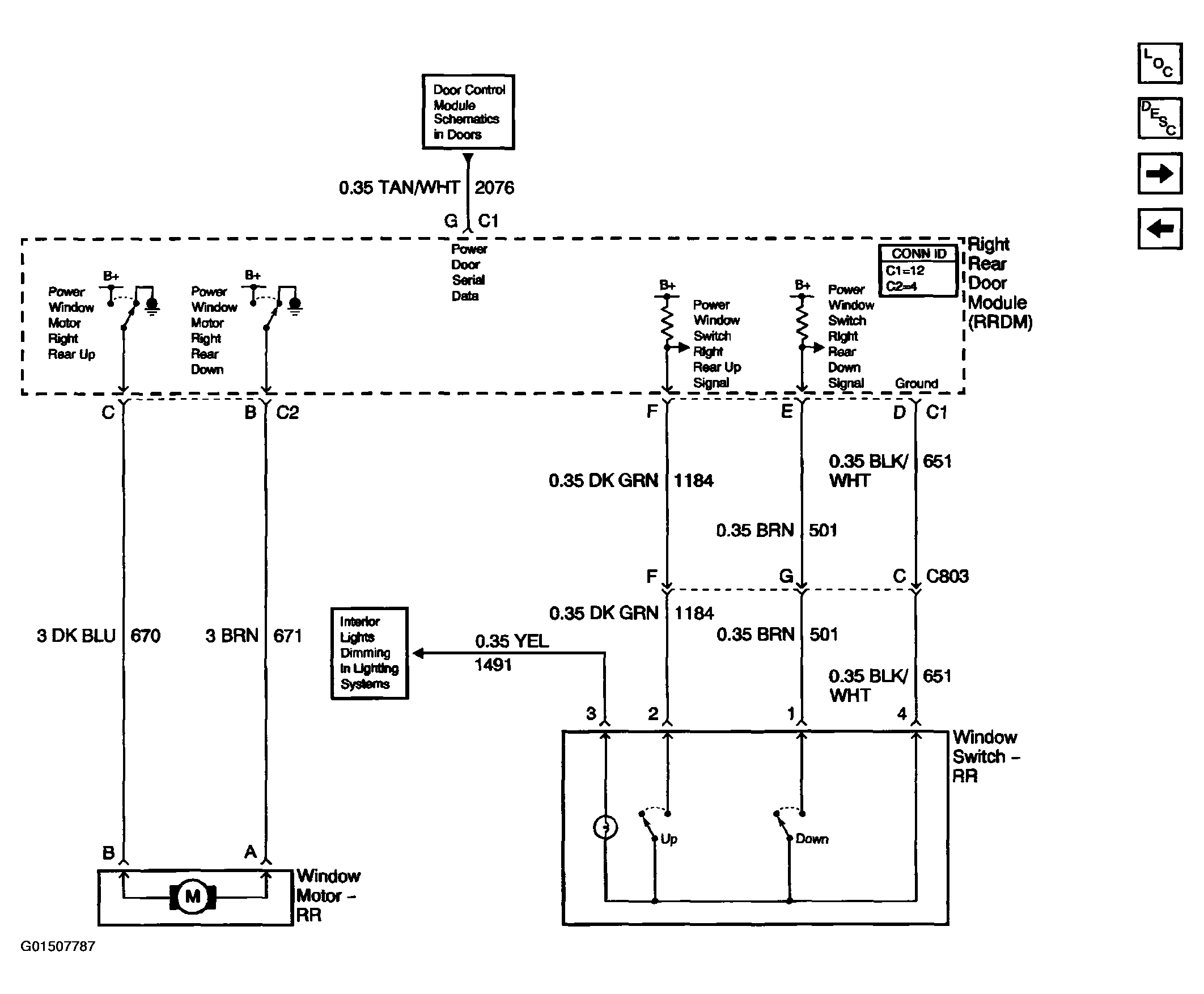

Fig 3: Power Window Wiring Schematic - Right Rear Window Switch & Window Motor

Courtesy of GENERAL MOTORS CORP.

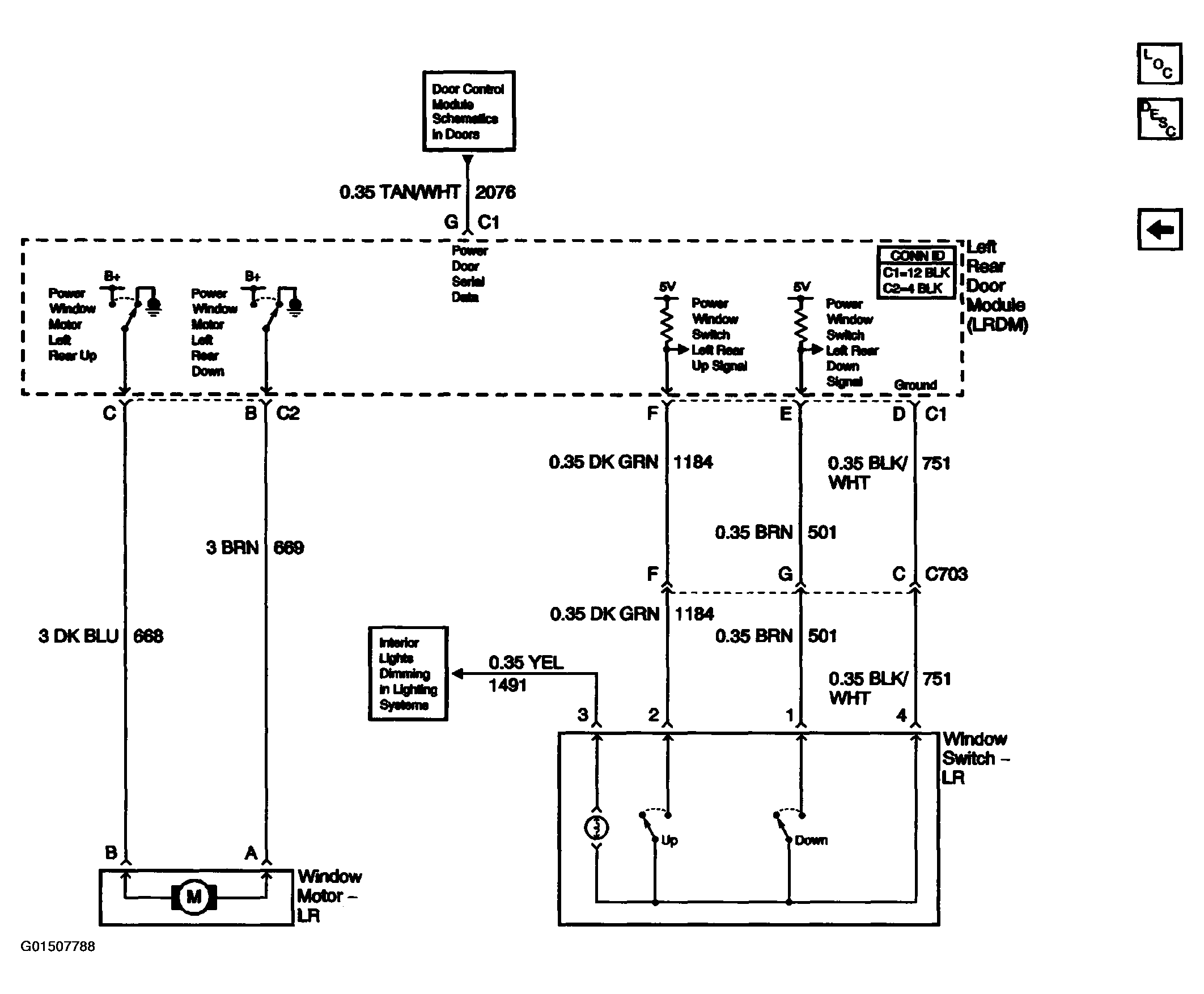

Fig 4: Power Window Wiring Schematic - Left Rear Window Switch And Window Motor

Courtesy of GENERAL MOTORS CORP.
