Stationary Windows Connector End Views

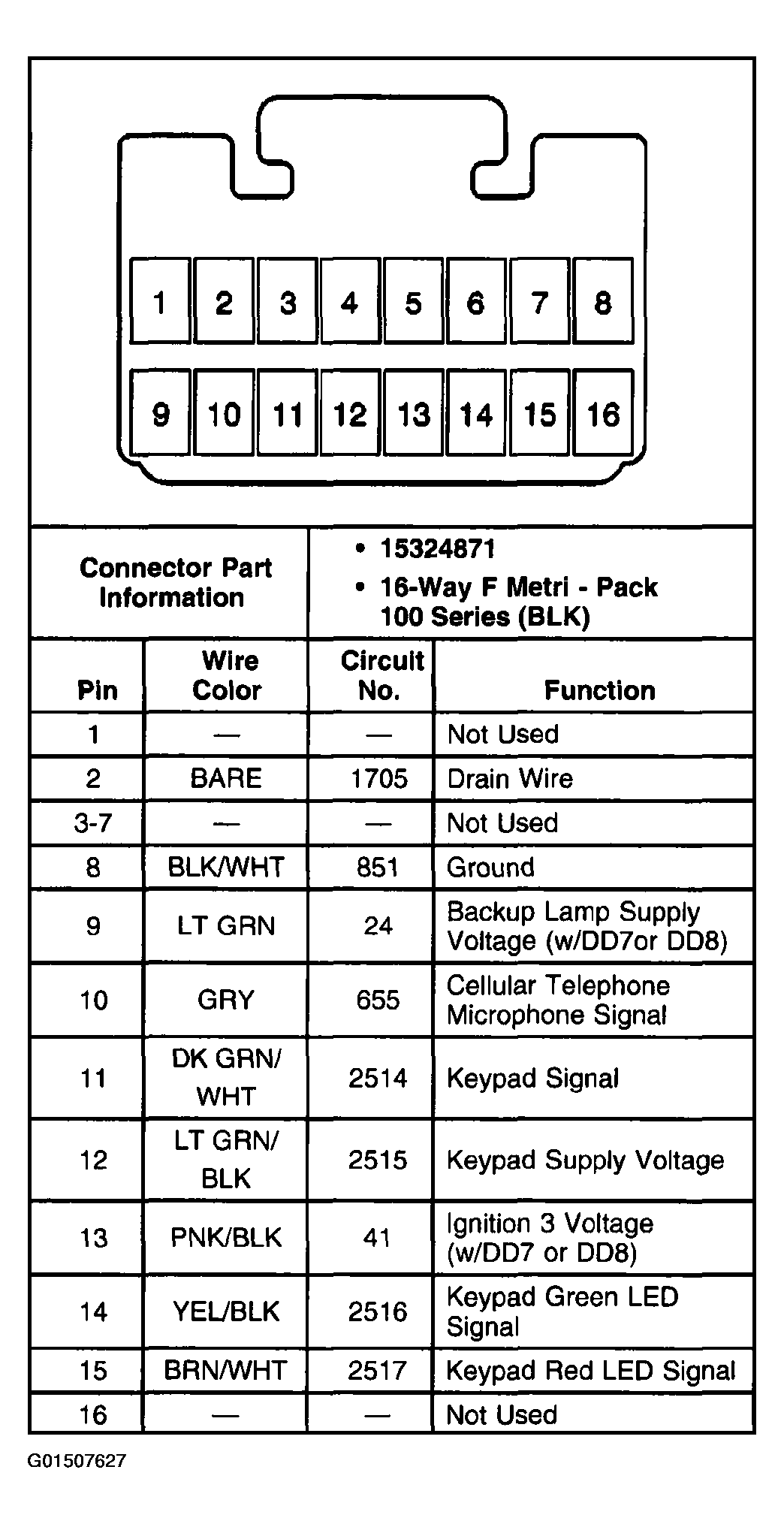

Fig 1: Identifying Inside Rearview Mirror Connector End View

Courtesy of GENERAL MOTORS CORP.

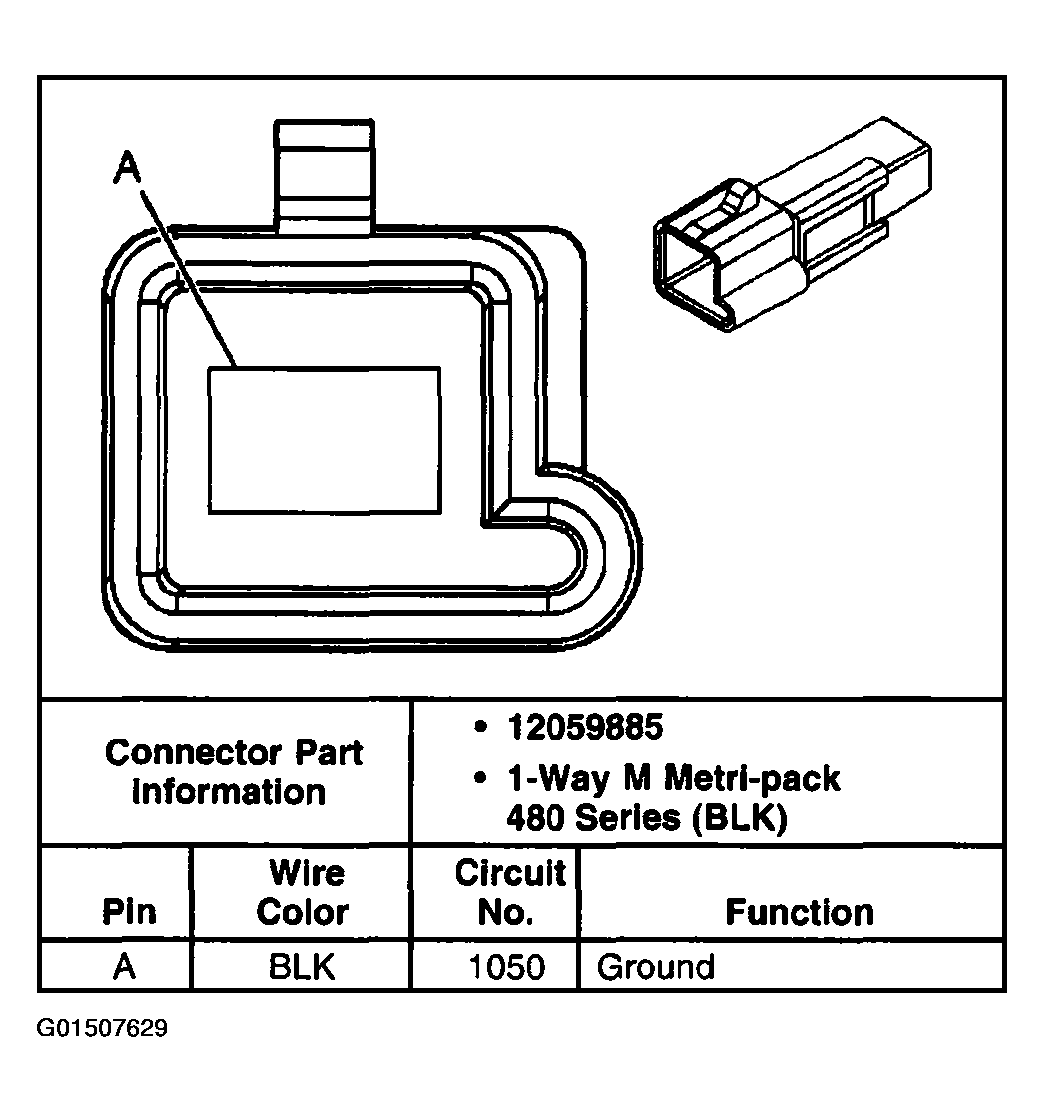

Fig 2: Identifying Rear Window Defogger Connector End View - Driver

Courtesy of GENERAL MOTORS CORP.

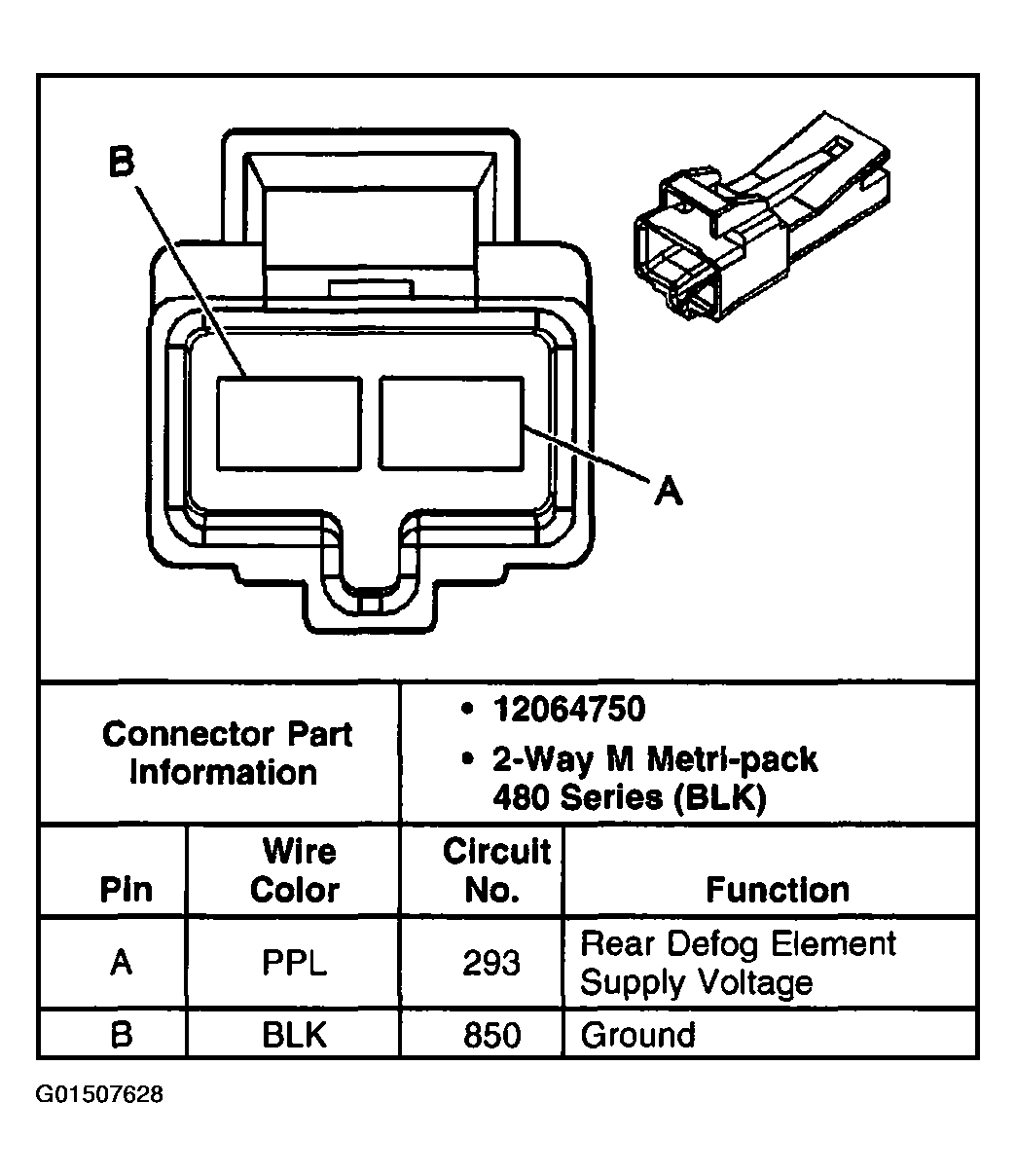

Fig 3: Identifying Rear Window Defogger Connector End View - Passenger

Courtesy of GENERAL MOTORS CORP.
