Defogger Schematics
Defogger Schematics

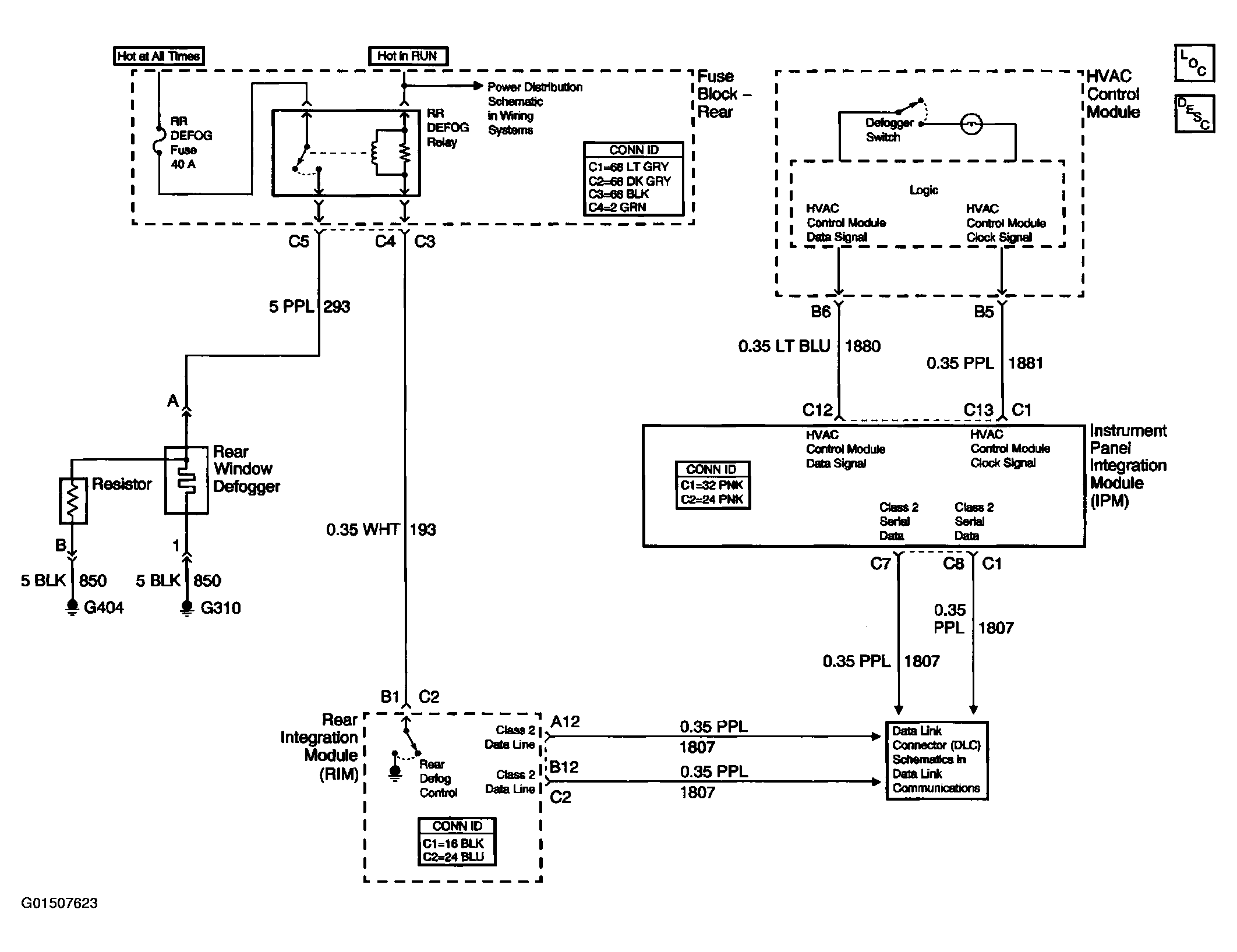

Fig 1: Defogger Schematics Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
