Driver Information Center Connector End View
Driver Information Center Connector End View

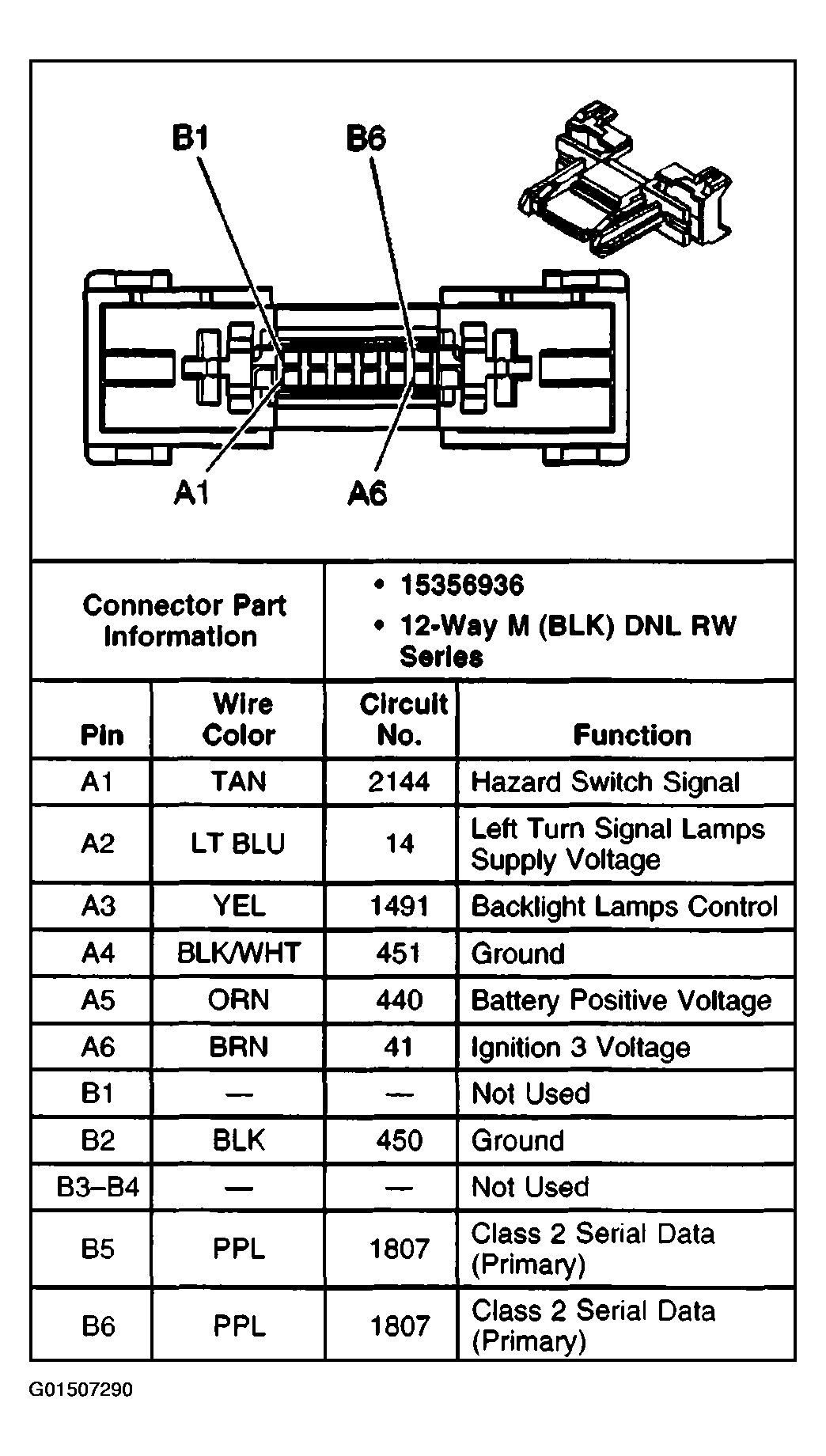

Fig 1: Driver Information Center Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
