Electronic Brake Control Module Connector End View (1 Of 2)
Electronic Brake Control Module Connector End View (1 Of 2)

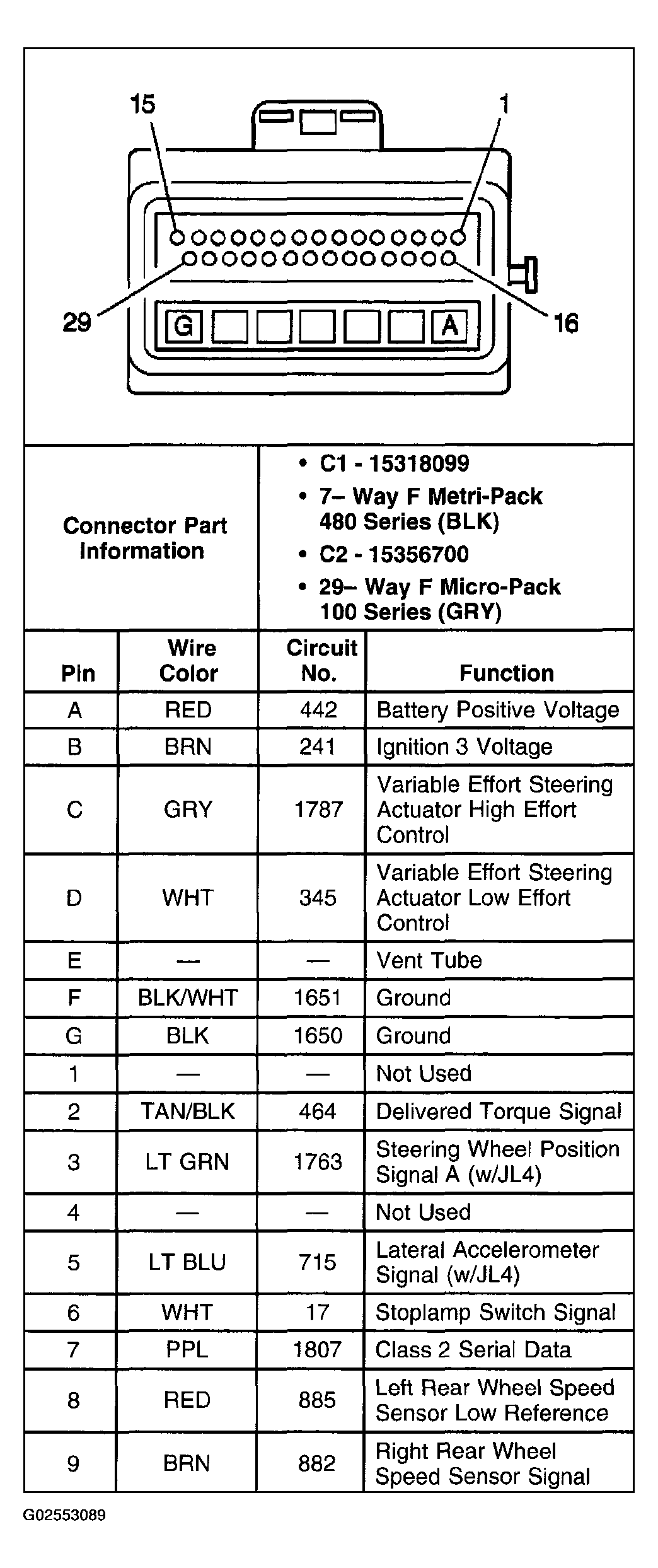

Fig 1: Electronic Brake Control Module Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
