Internal Mode Switch (IMS) Connector End View
Internal Mode Switch (IMS) Connector End View

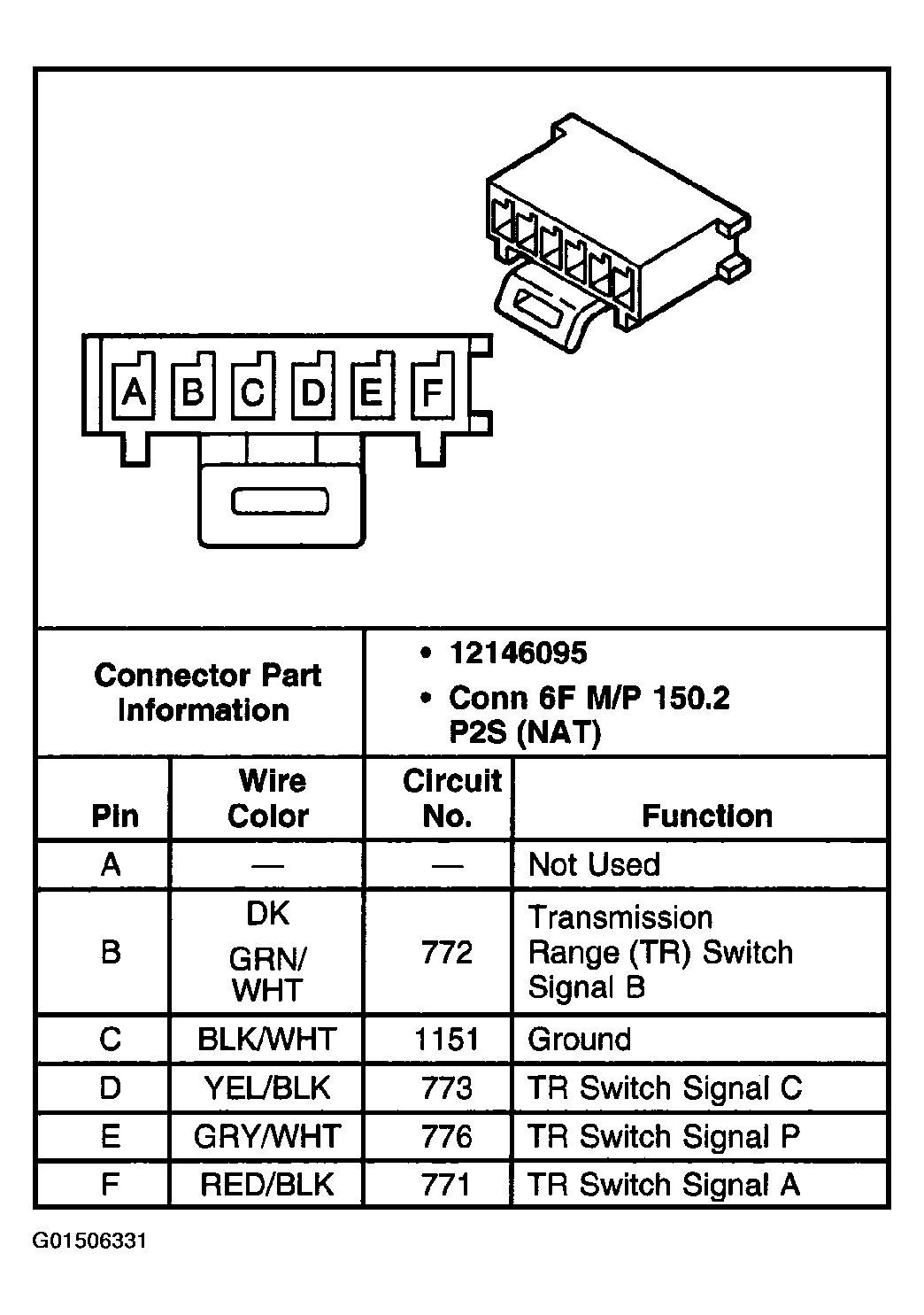

Fig 1: Internal Mode Switch (IMS) Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
