Power Sunroof Express Module Connector End View C1

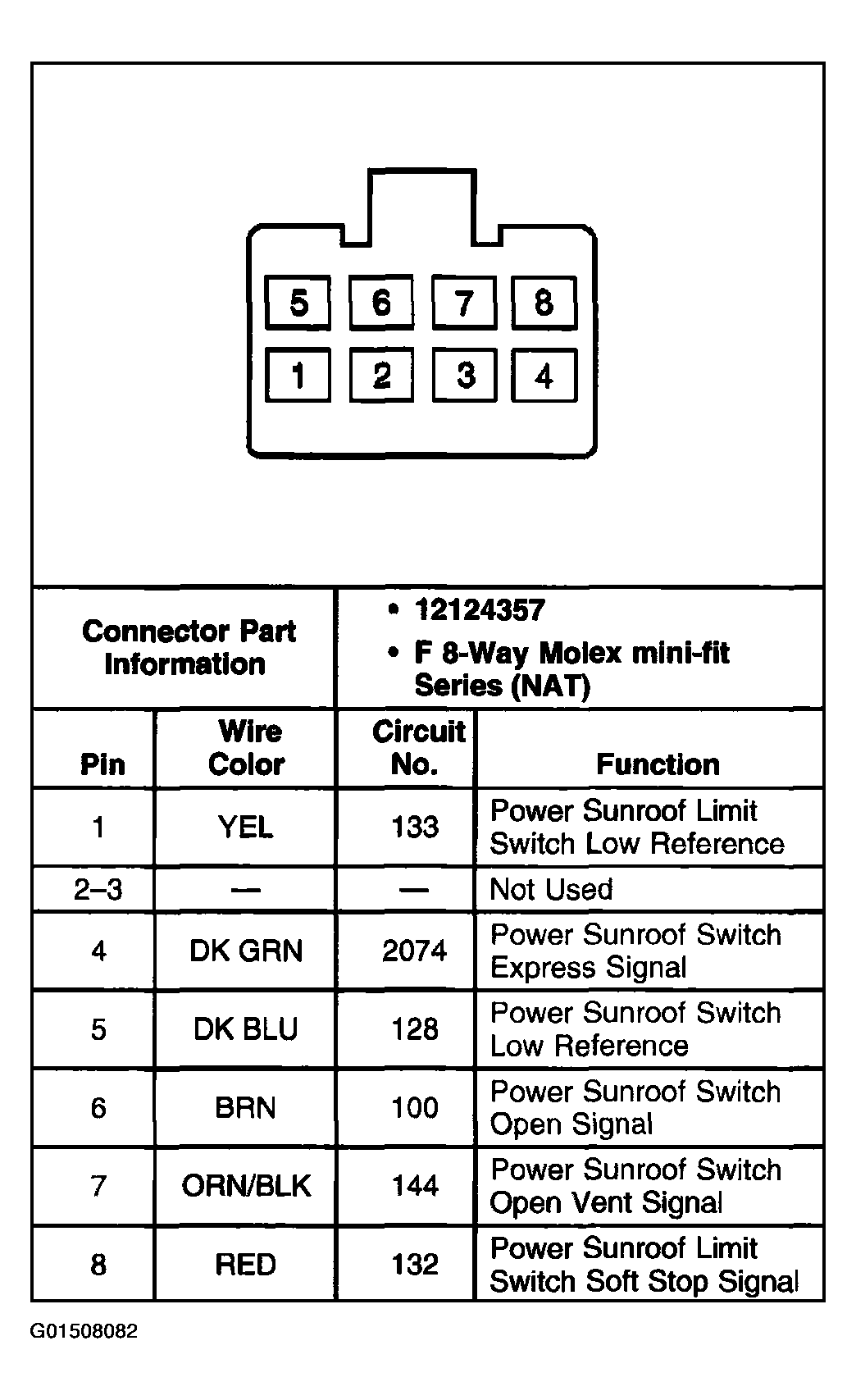

Fig 1: Power Sunroof Express Module Connector End View C1
G01508082Courtesy of GENERAL MOTORS CORP.
