Lower Left Air Temperature Sensor Connector End View
Lower Left Air Temperature Sensor Connector End View

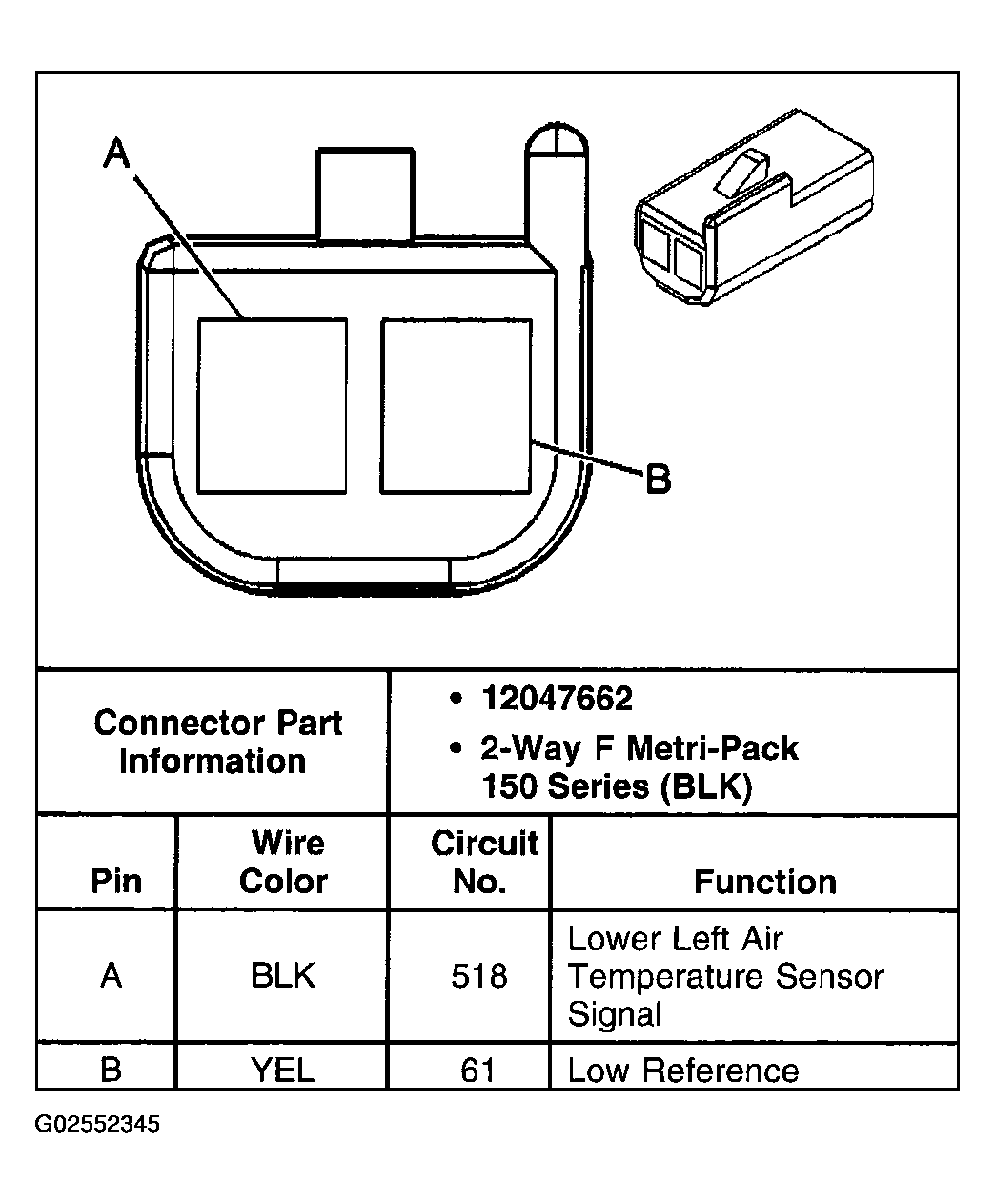

Fig 1: Lower Left Air Temperature Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
