Reverse Lockout System Inoperative

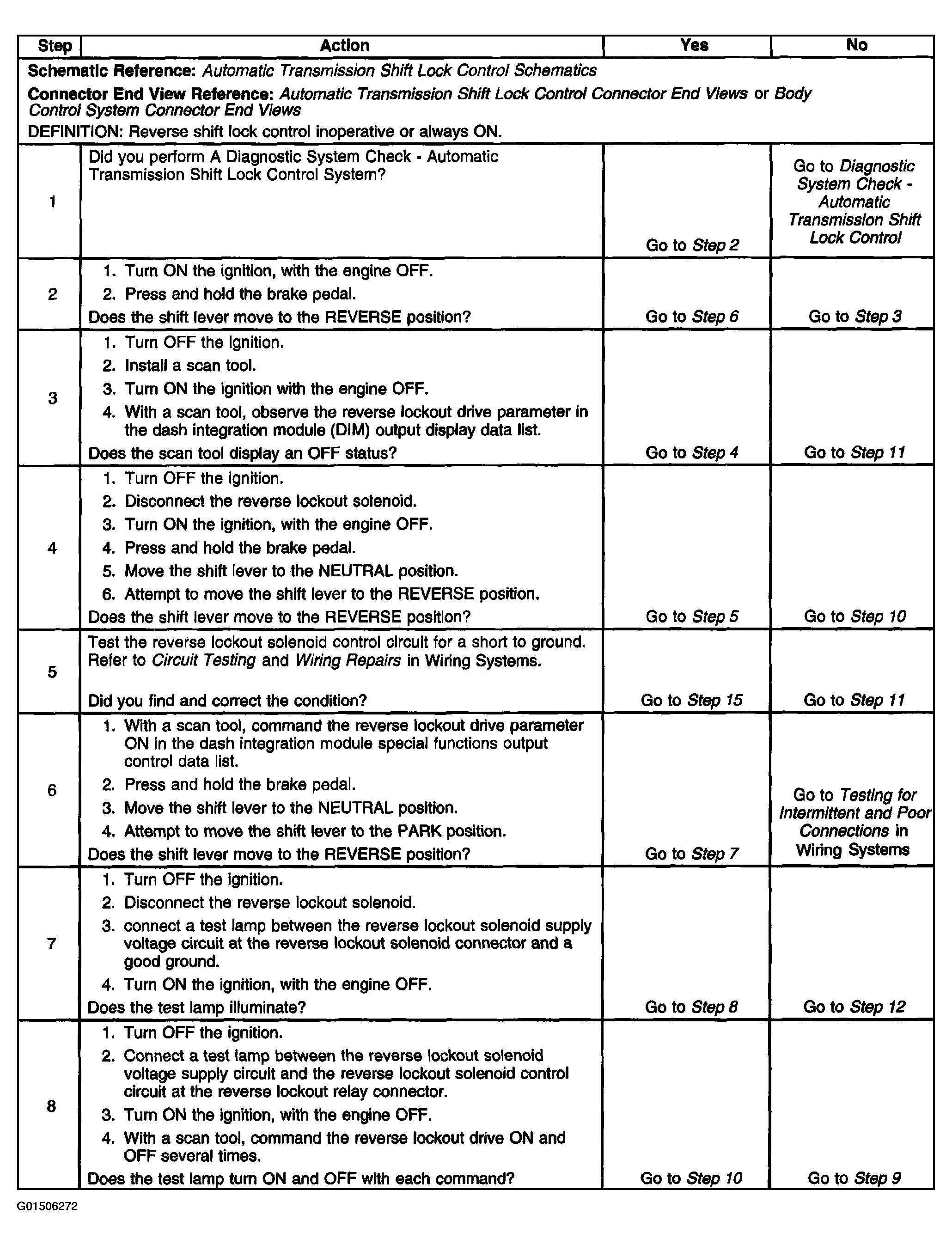

Fig 1: Reverse Lockout System Inoperative Table (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

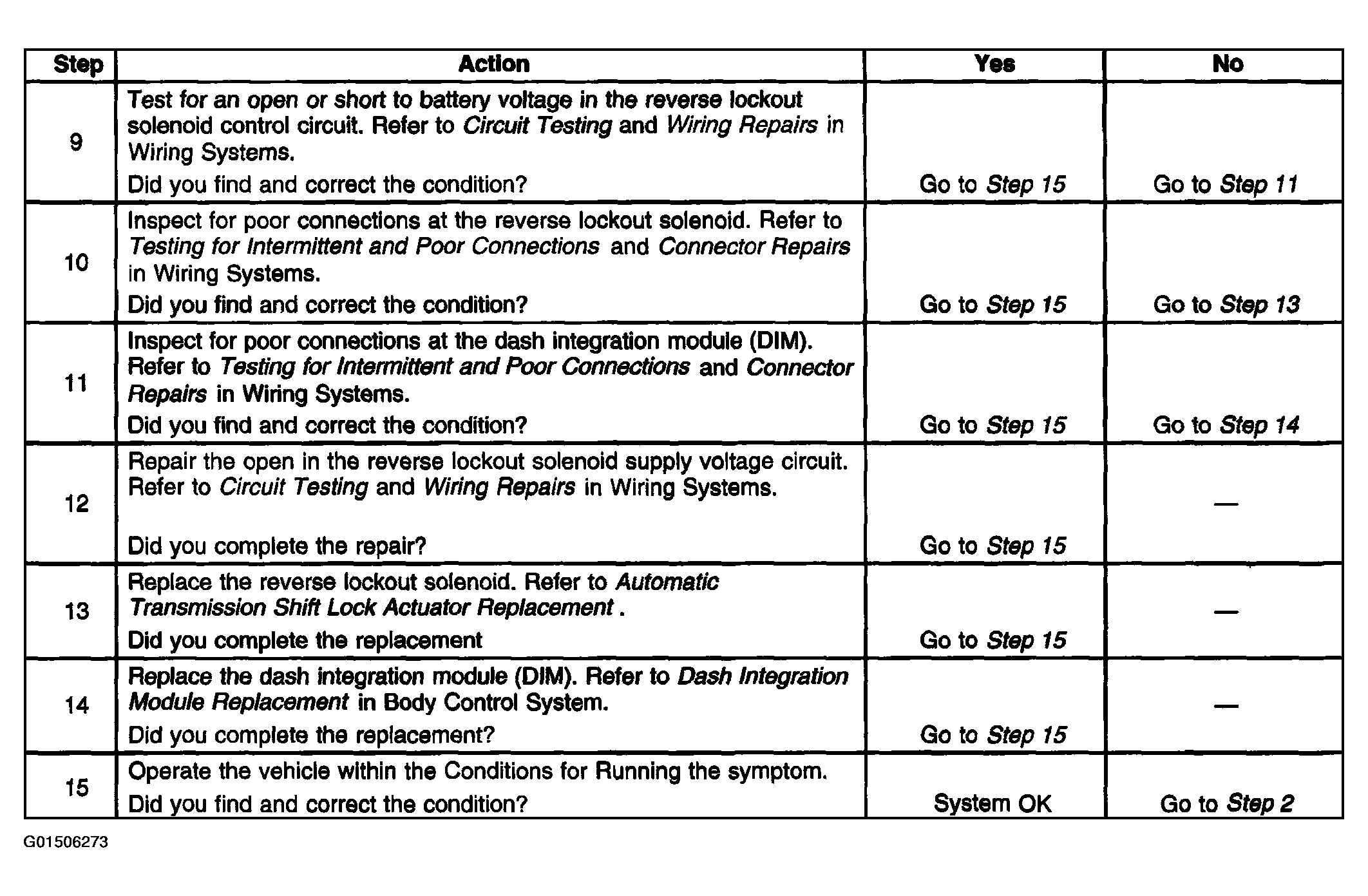

Fig 2: Reverse Lockout System Inoperative Table (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
