Diagnostic Procedures

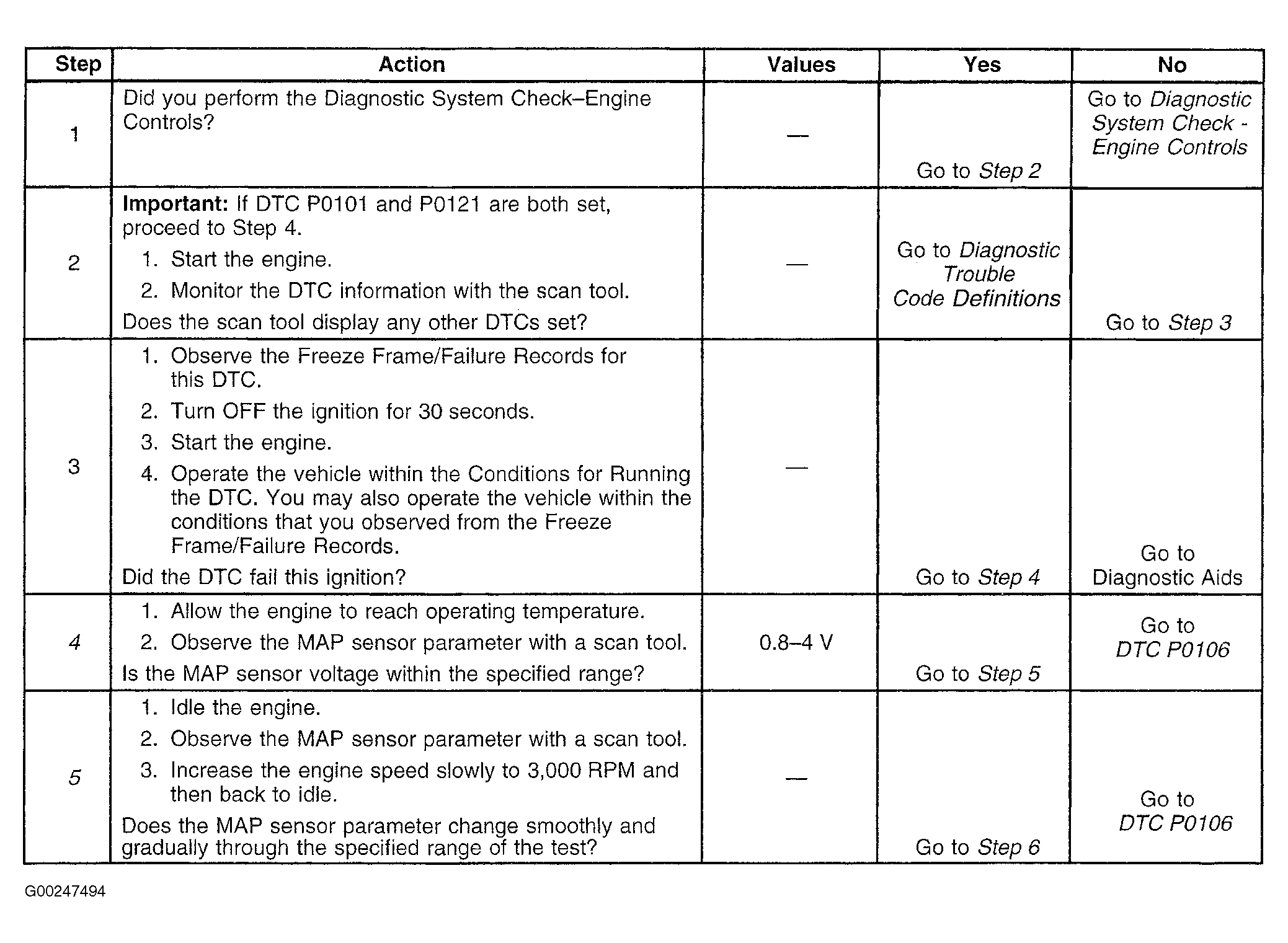

Fig 1: DTC P0101: Mass Airflow Sensor System Performance (Steps 1-5)
G00247494Courtesy of GENERAL MOTORS CORP.

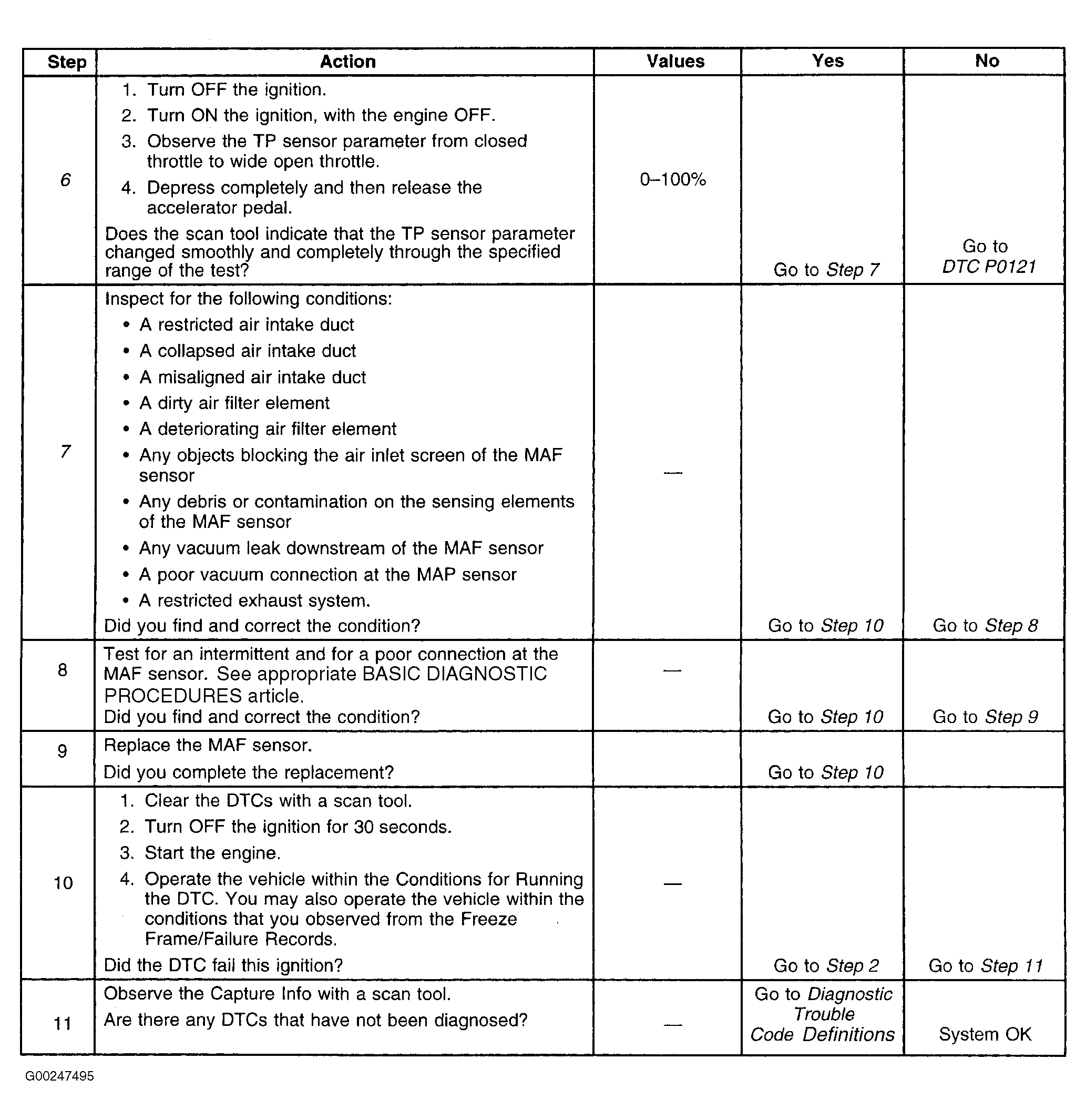

Fig 2: DTC P0101: Mass Airflow Sensor System Performance (Steps 6-11)
G00247495Courtesy of GENERAL MOTORS CORP.
