Diagnostic Procedures

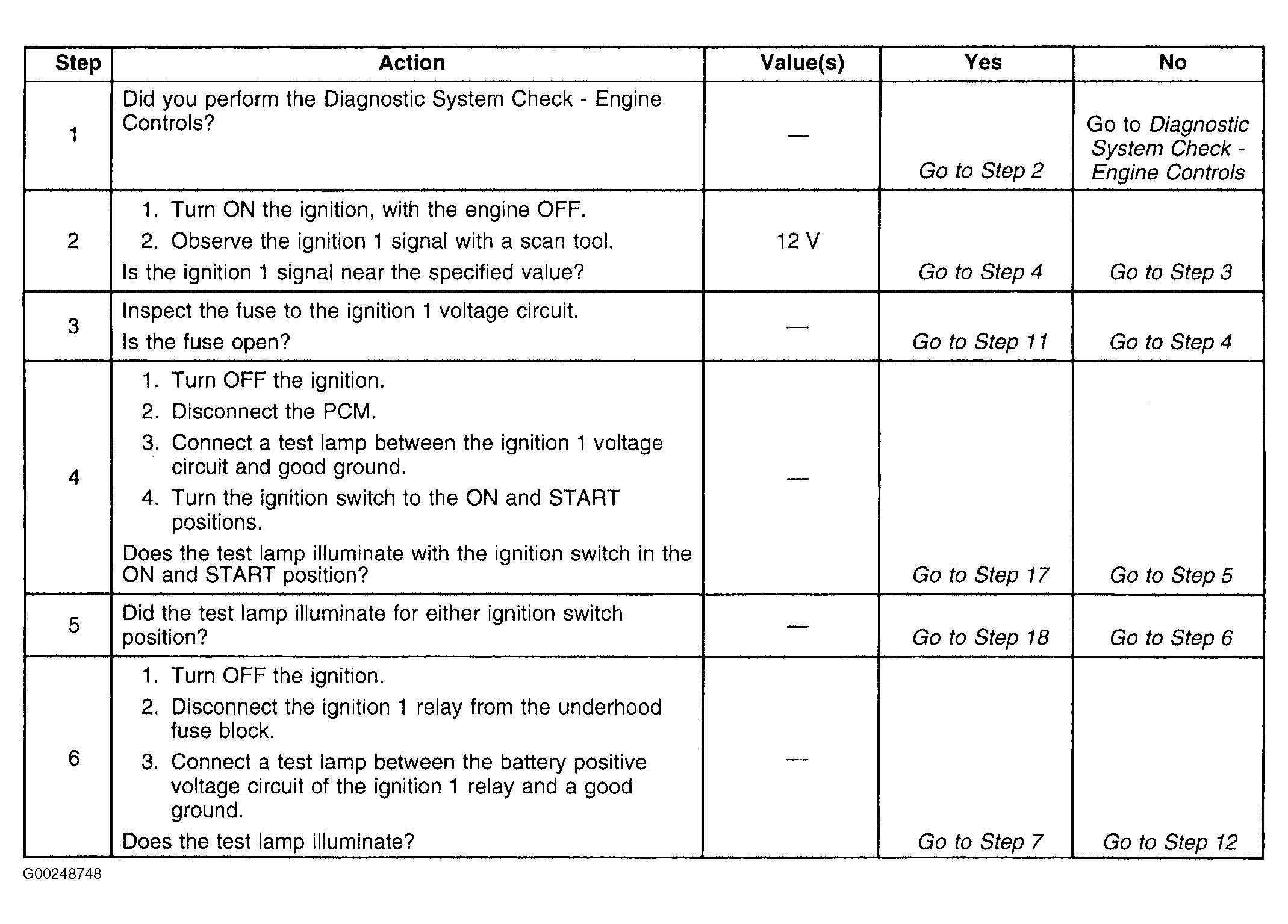

Fig 1: DTC P1634: Improper Ignition 1 Input (Steps 1-6)
G00248748Courtesy of GENERAL MOTORS CORP.

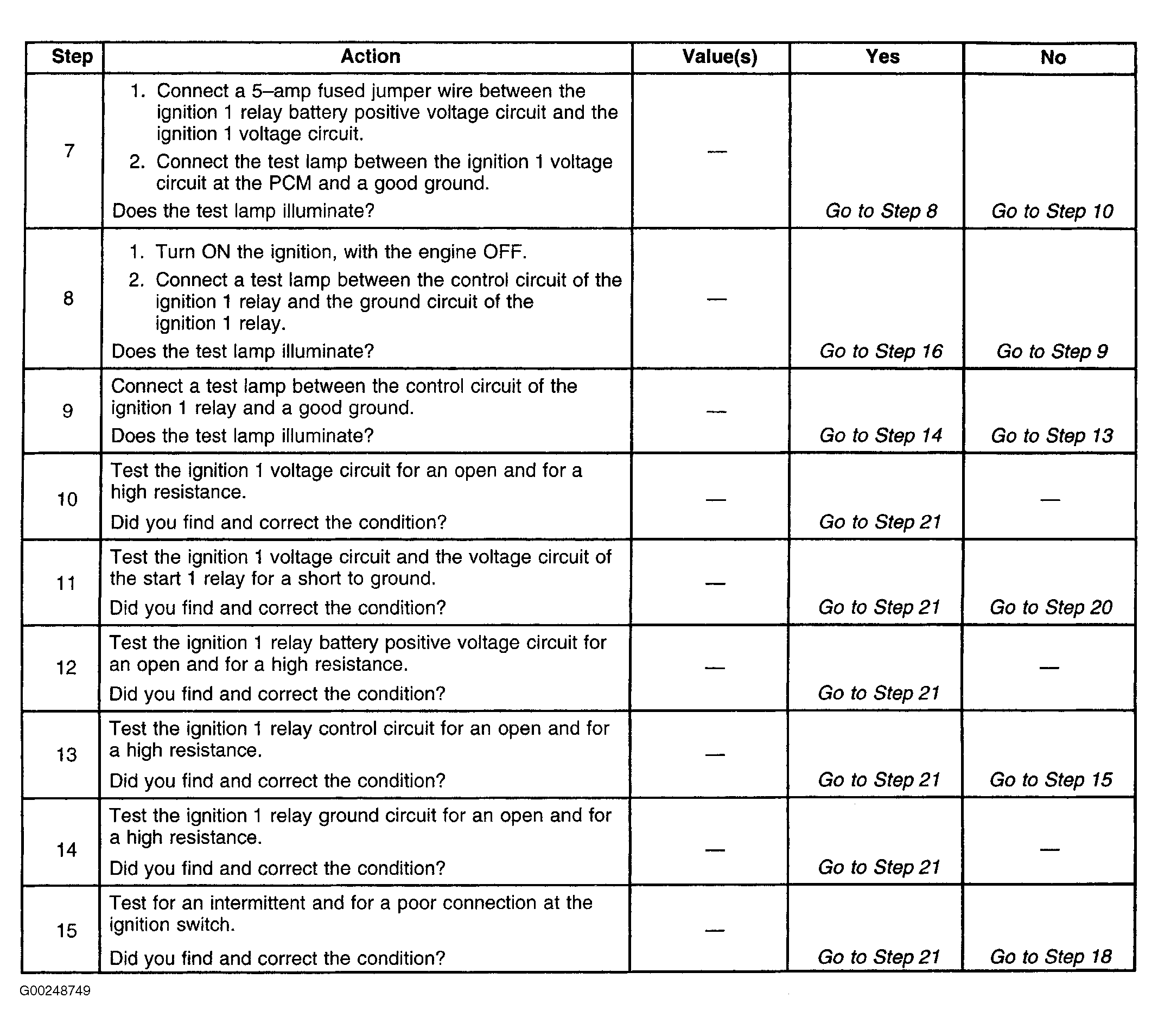

Fig 2: DTC P1634: Improper Ignition 1 Input (Steps 7-15)
G00248749Courtesy of GENERAL MOTORS CORP.

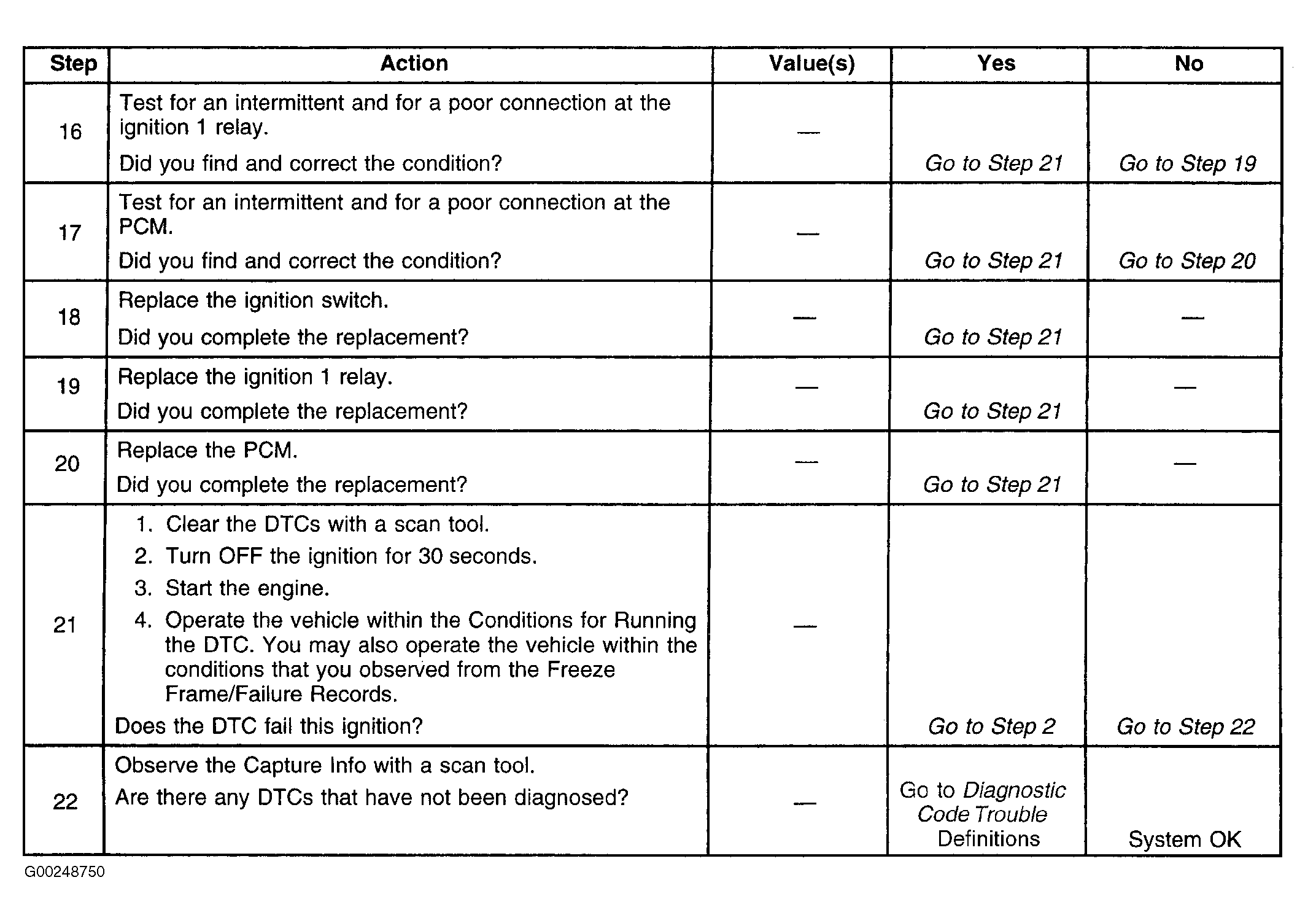

Fig 3: DTC P1634: Improper Ignition 1 Input (Steps 16-22)
G00248750Courtesy of GENERAL MOTORS CORP.
