Differential Removal/Installation: Notes
WARNING: This page is about a different car, the 2002 Mazda MX-5 Miata and 2001 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the differential oil.
- Remove the crossmember bracket. See CROSSMEMBER BRACKET REMOVAL/INSTALLATION .
- Remove the main silencer. See EXHAUST SYSTEM REMOVAL/INSTALLATION .

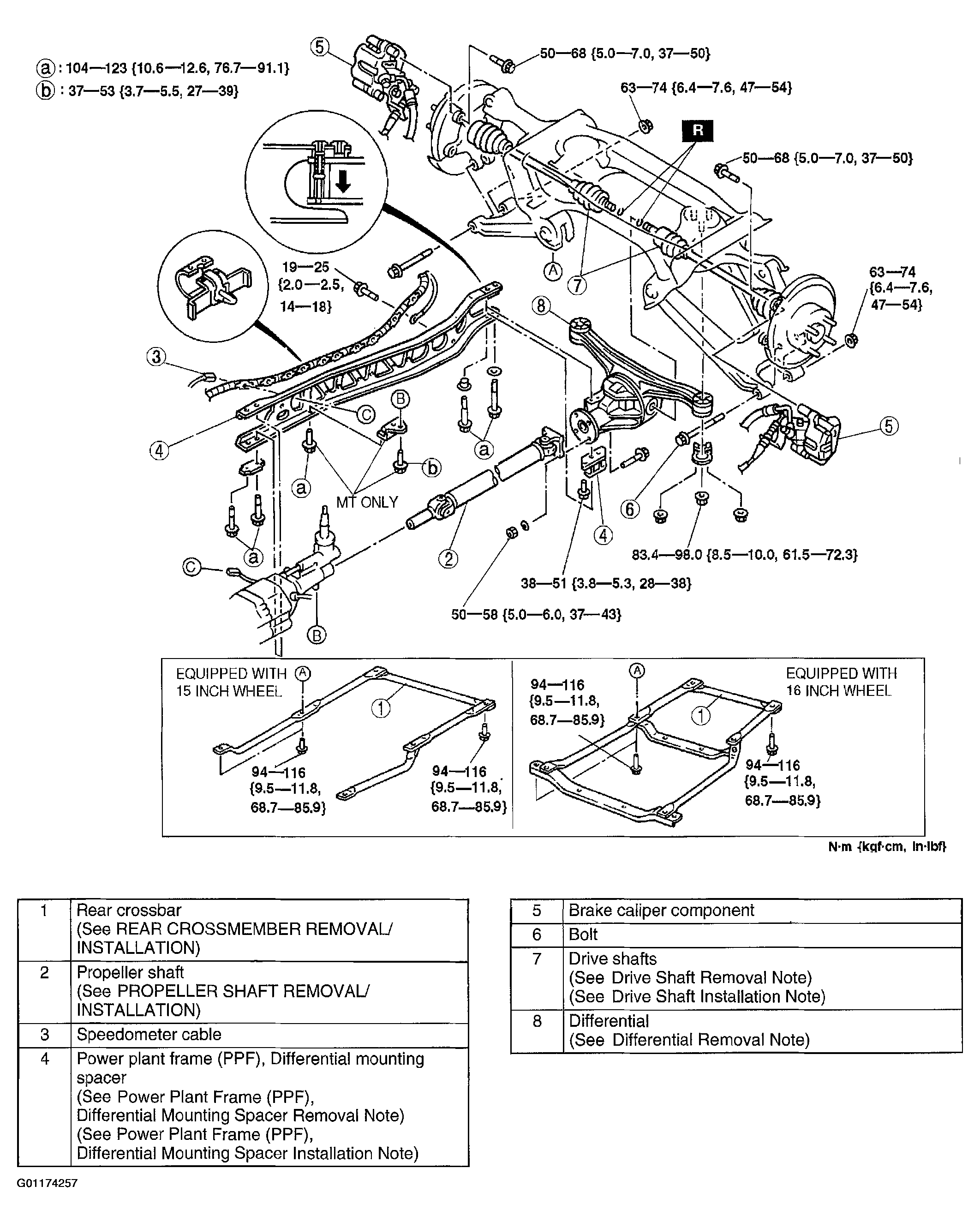

- Remove in the order indicated in the table. See Fig 1 .
- Install in the reverse order of removal.
- Add the specified oil to the specified level. See DIFFERENTIAL OIL REPLACEMENT .
