Section 36 (Disc Brake System): Overhaul

WARNING: This page is about a different car, the 2004 Mazda MX-5 Miata, 2003 Mazda MX-5 Miata, and 2002 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use appropriate illustrations for exploded view of front caliper assembly, rear caliper assembly, and master cylinder. See Fig 1 -Fig 3 .

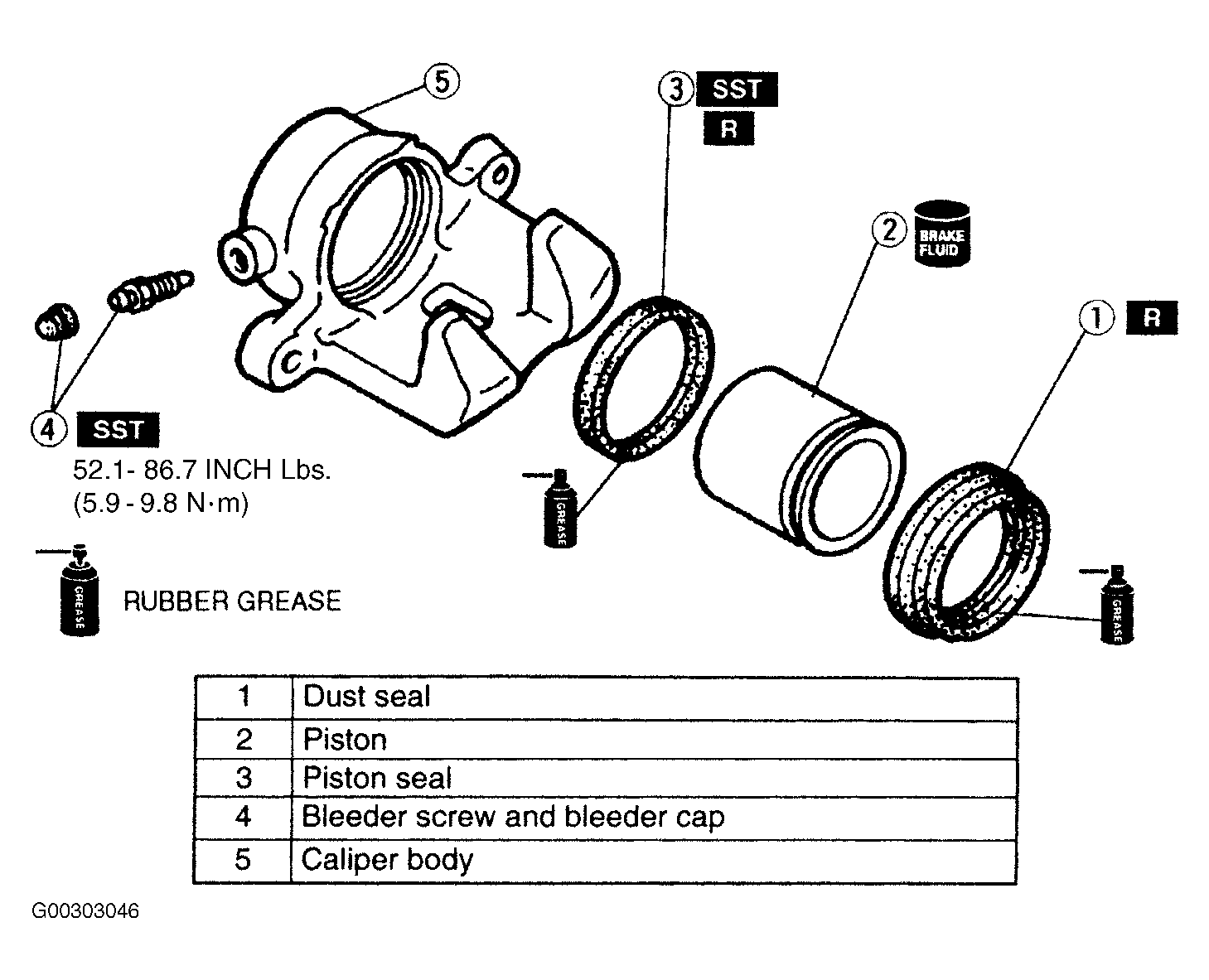

Fig 1: Exploded View Front Caliper Assembly

Courtesy of MAZDA MOTORS CORP.

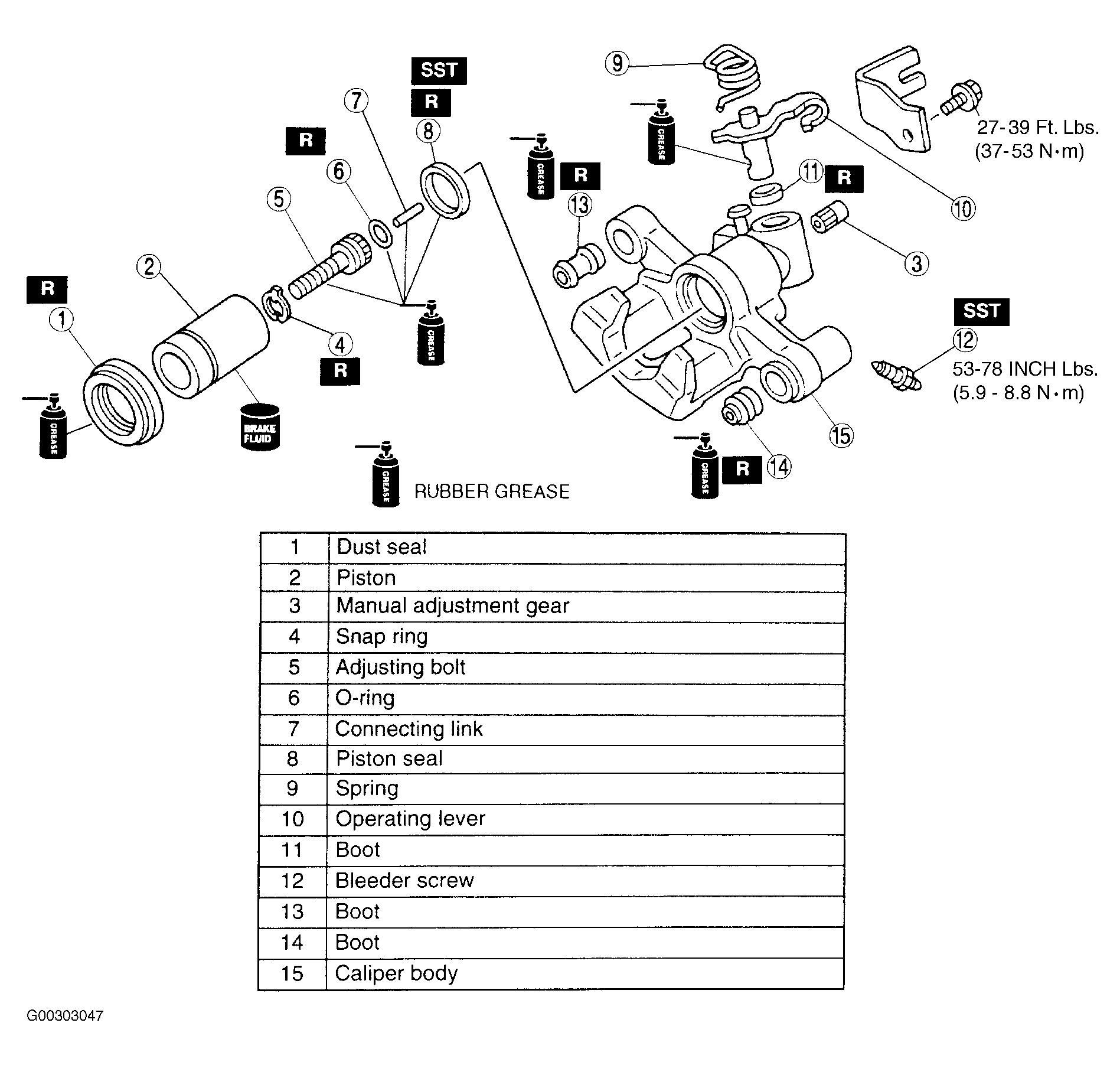

Fig 2: Exploded View Rear Caliper Assembly

Courtesy of MAZDA MOTORS CORP.

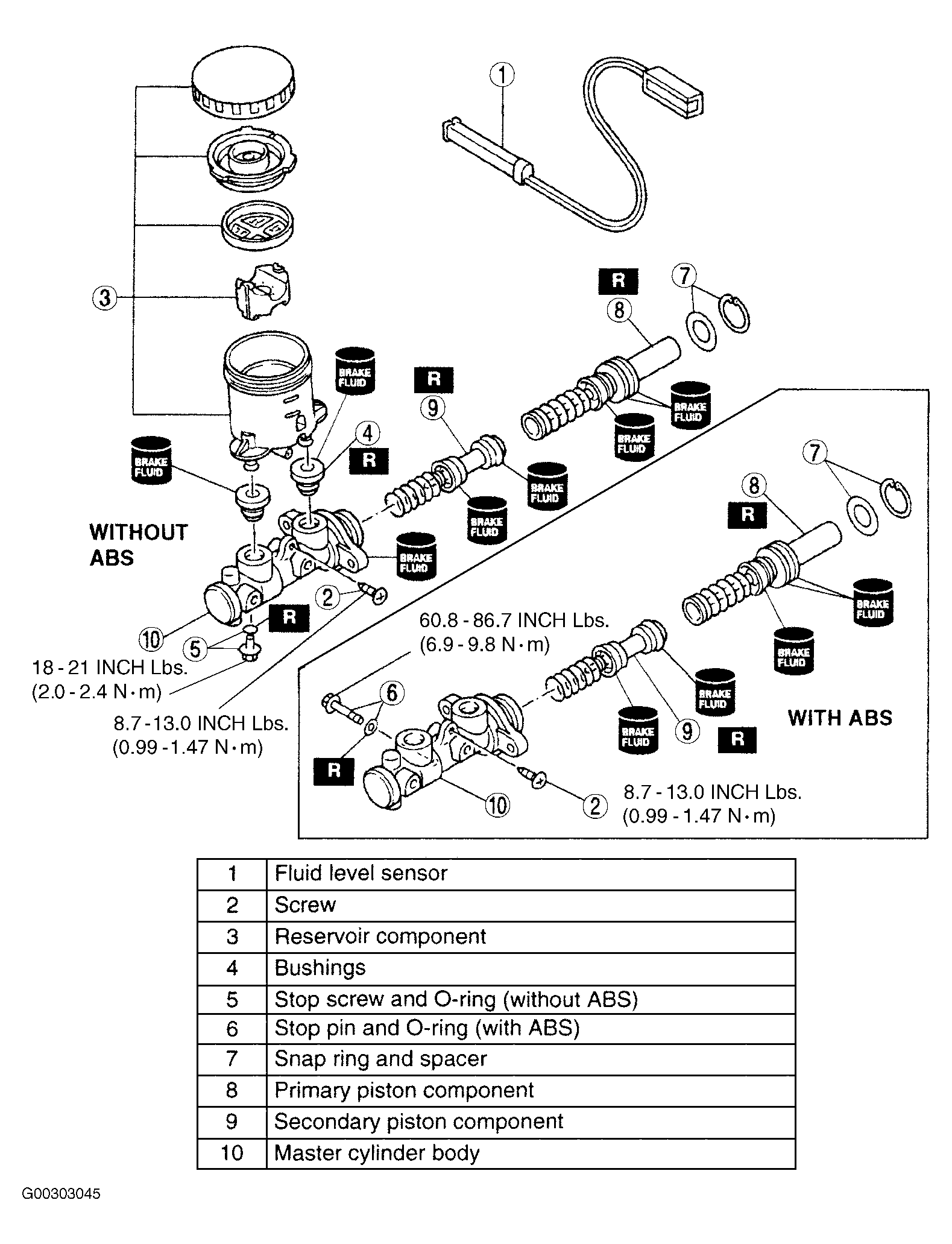

Fig 3: Exploded View Master Cylinder Assembly

Courtesy of MAZDA MOTORS CORP.
