Ambient Air Temperature Sensor Connector End View
Ambient Air Temperature Sensor Connector End View

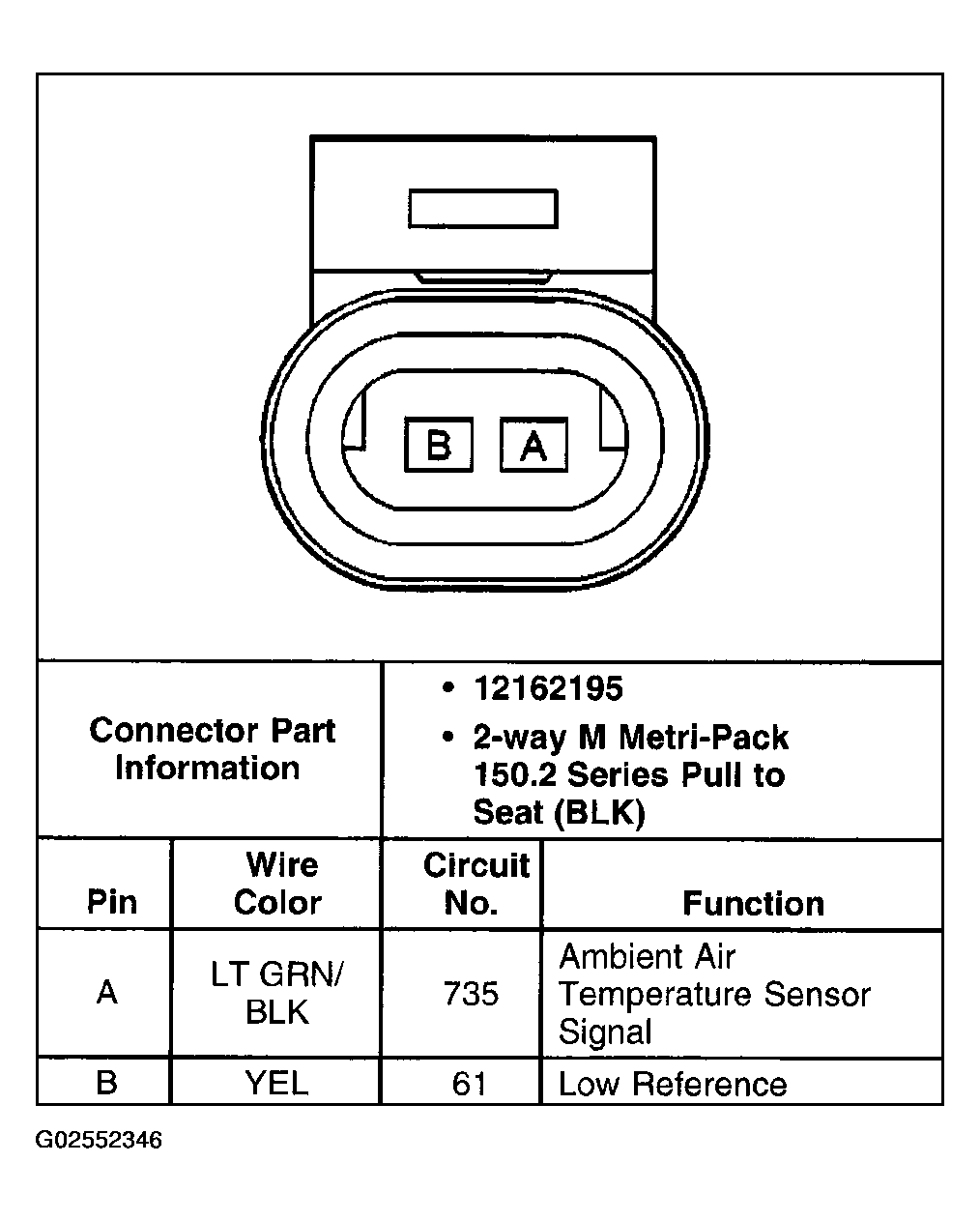

Fig 1: Ambient Air Temperature Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
