Automatic Transmission Inline Connector End View

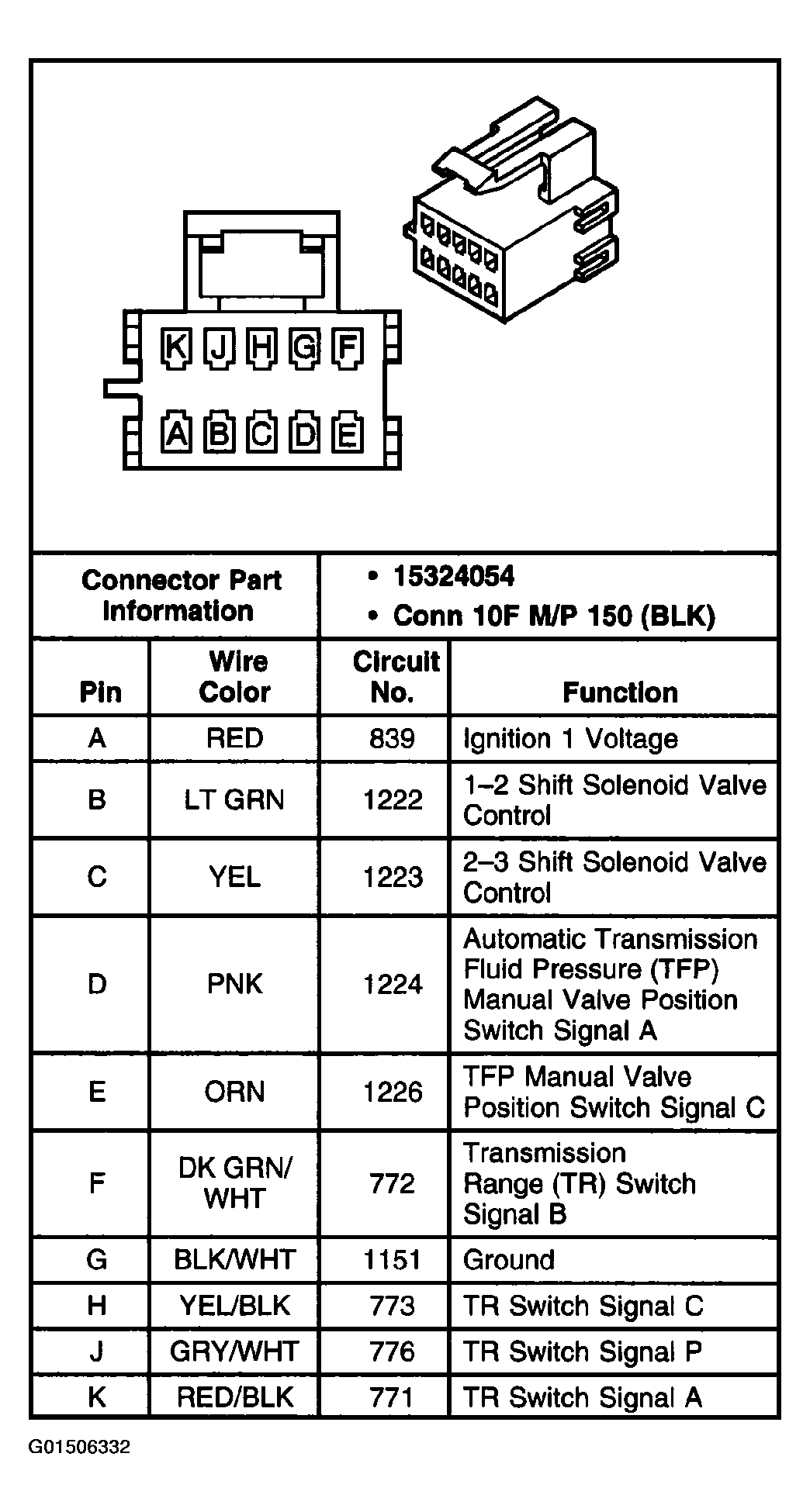

Fig 1: Automatic Transmission Inline Connector End View
G01506332Courtesy of GENERAL MOTORS CORP.

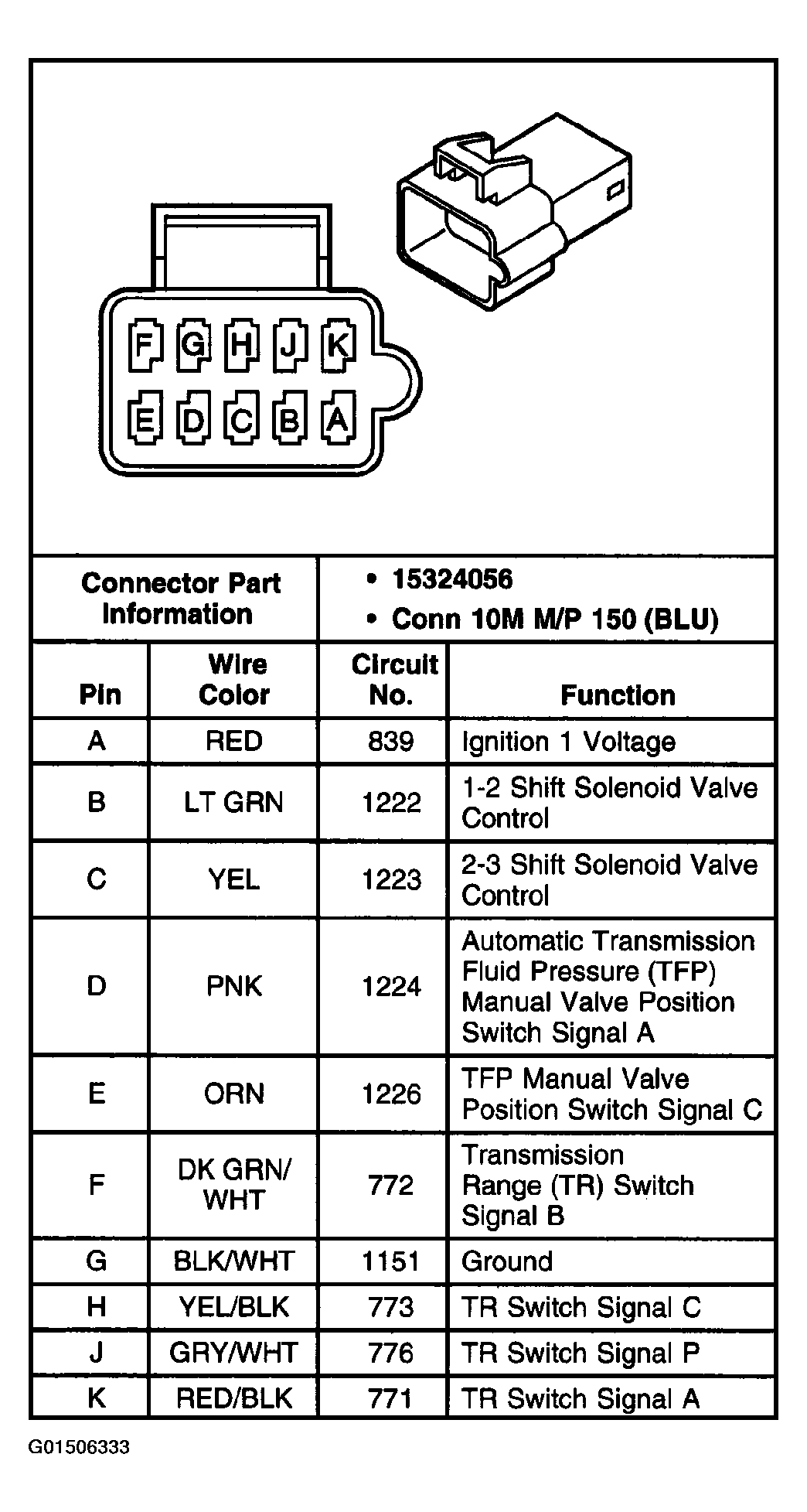

Fig 1: Automatic Transmission Inline Connector End View
G01506333Courtesy of GENERAL MOTORS CORP.
