Coolant Level Switch Connector End View

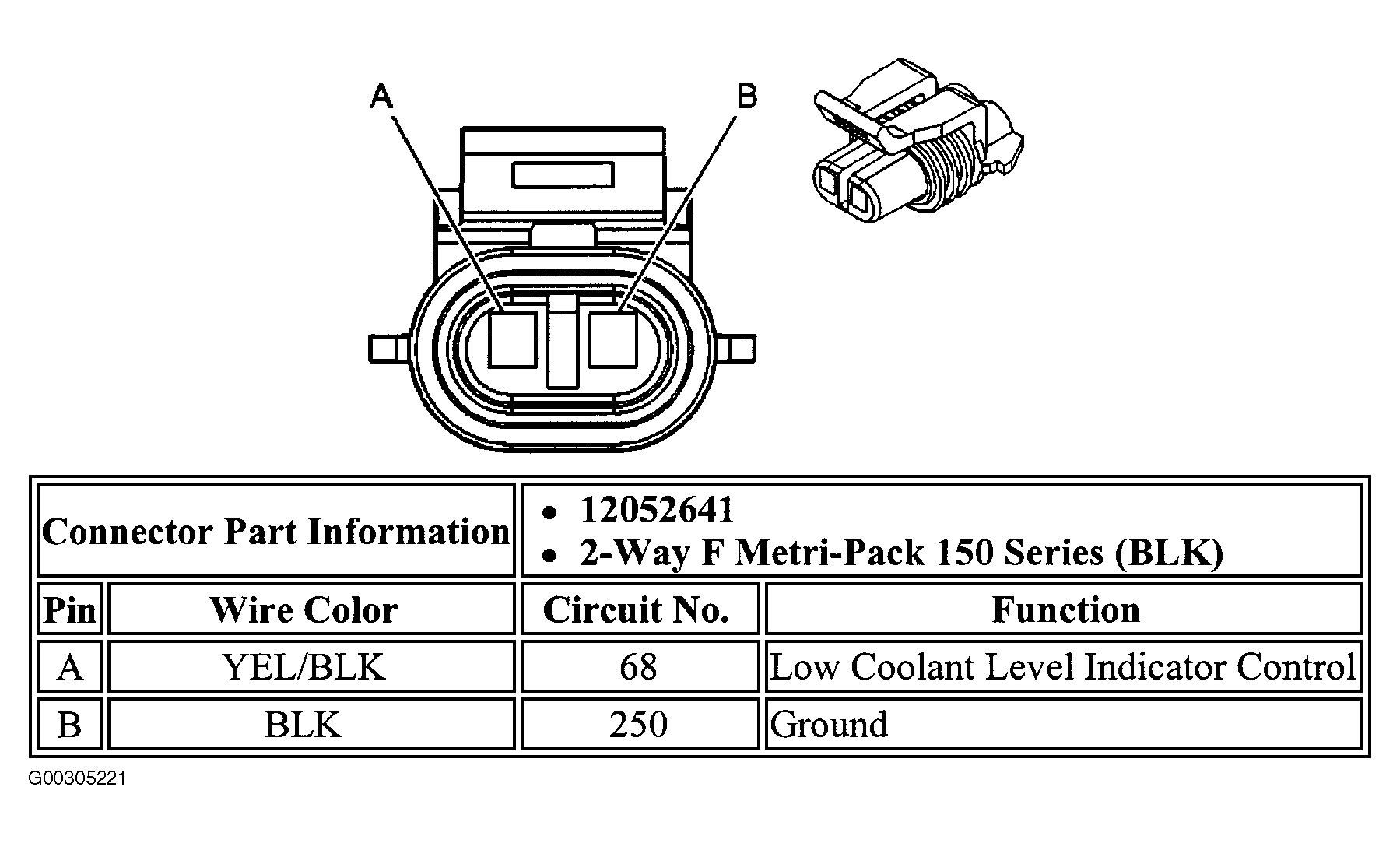

Fig 1: Coolant Level Switch Connector End View
G00305221Courtesy of GENERAL MOTORS CORP.


Fig 1: Coolant Level Switch Connector End View
G02554974Courtesy of GENERAL MOTORS CORP.
