In Line Connector C107 Connector End View
In Line Connector C107 Connector End View

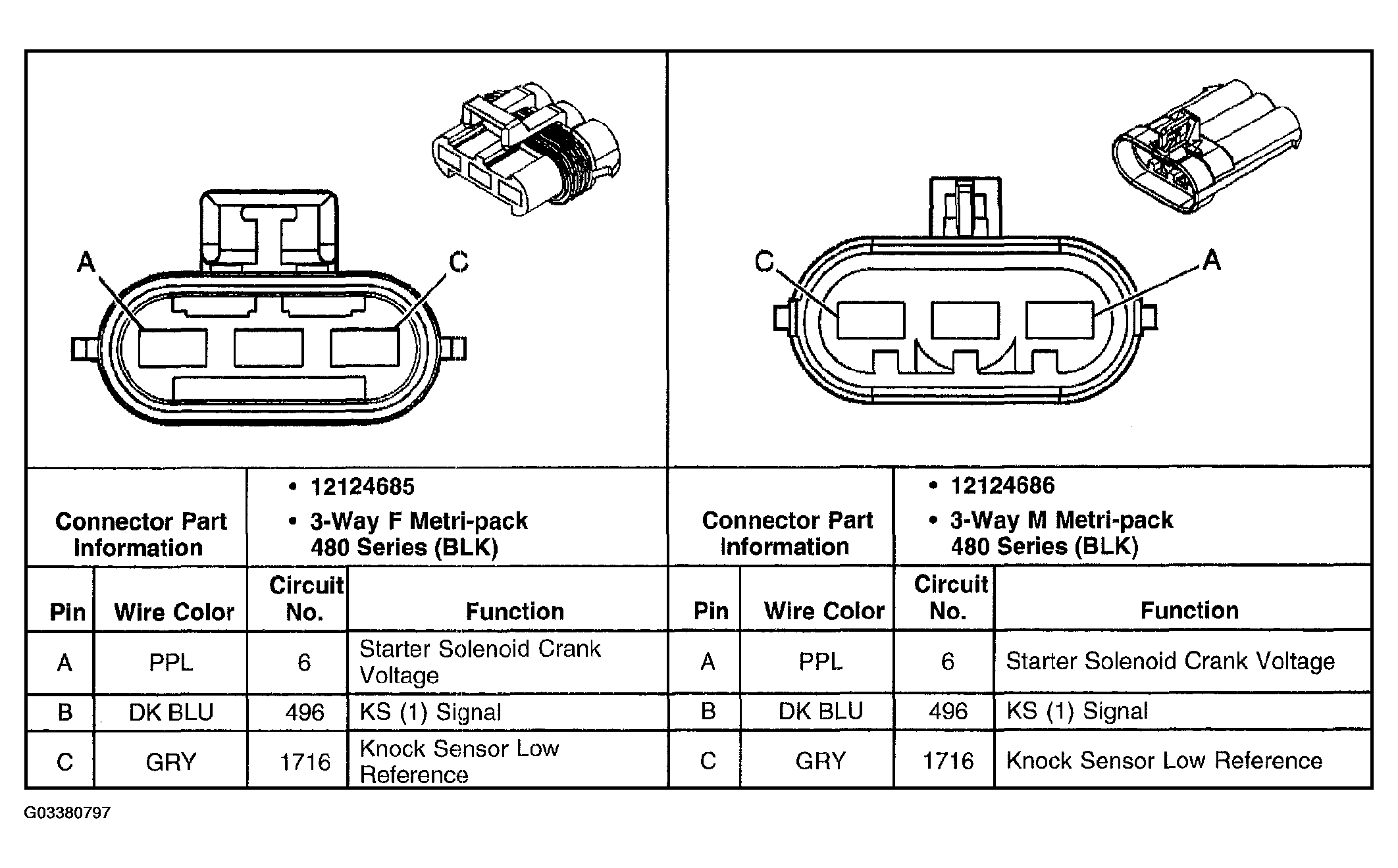

Fig 1: In Line Connector C107 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
