Lower Right Air Temperature Sensor Connector End View
Lower Right Air Temperature Sensor Connector End View

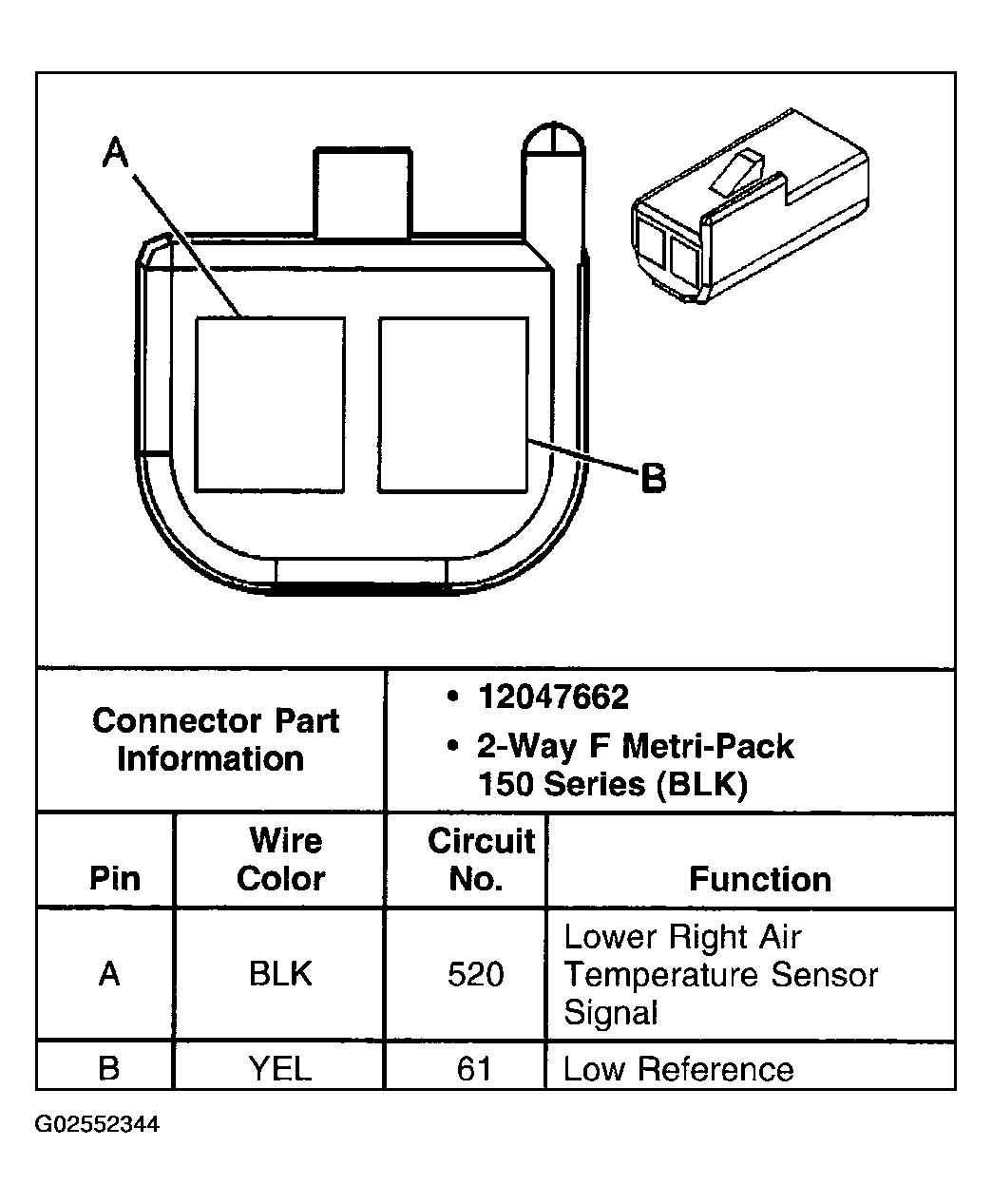

Fig 1: Lower Right Air Temperature Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
