Recirculation Actuator Connector End View
Recirculation Actuator Connector End View

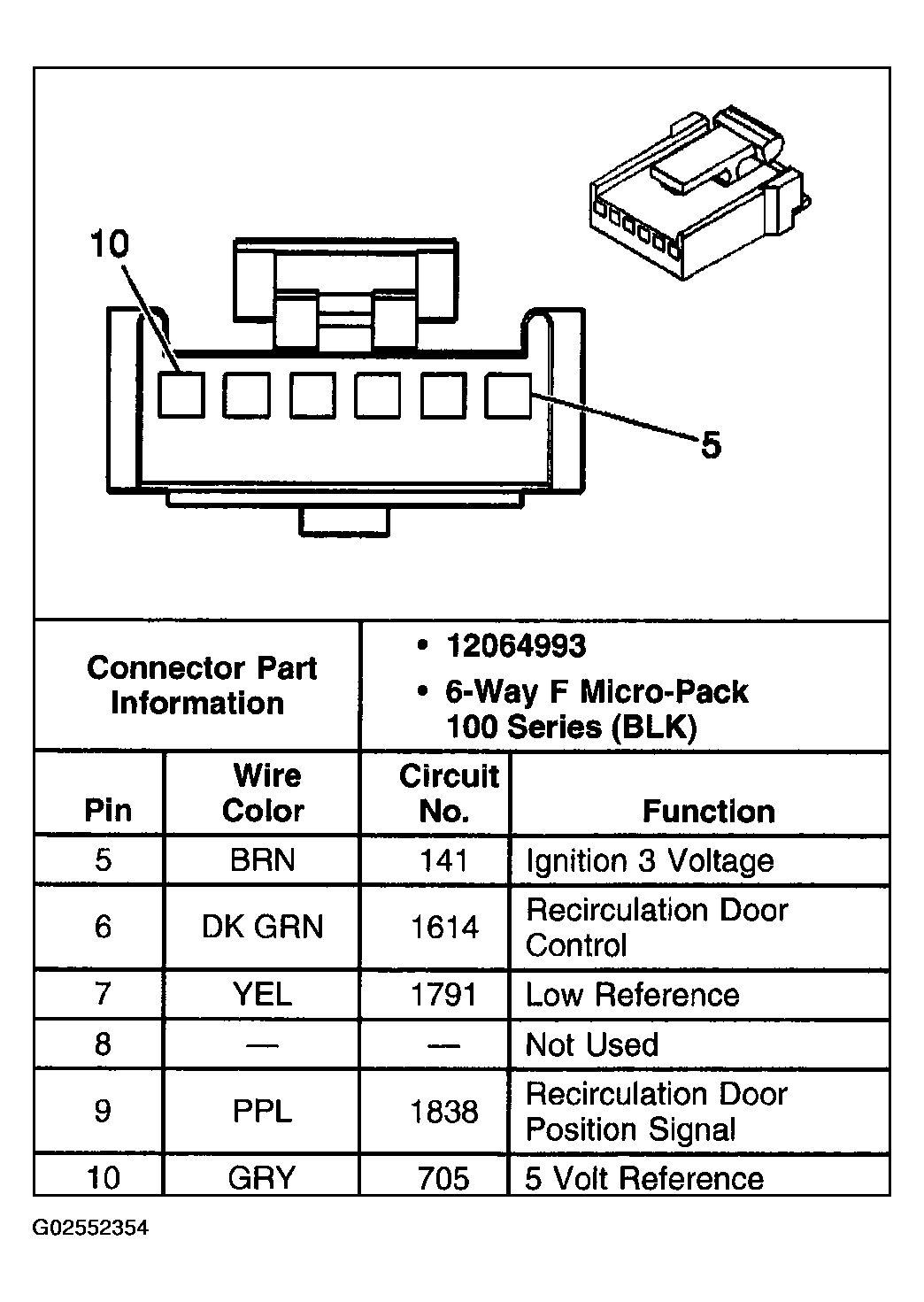

Fig 1: Recirculation Actuator Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
