Splice Pack SP310 Connector End View
Splice Pack SP310 Connector End View

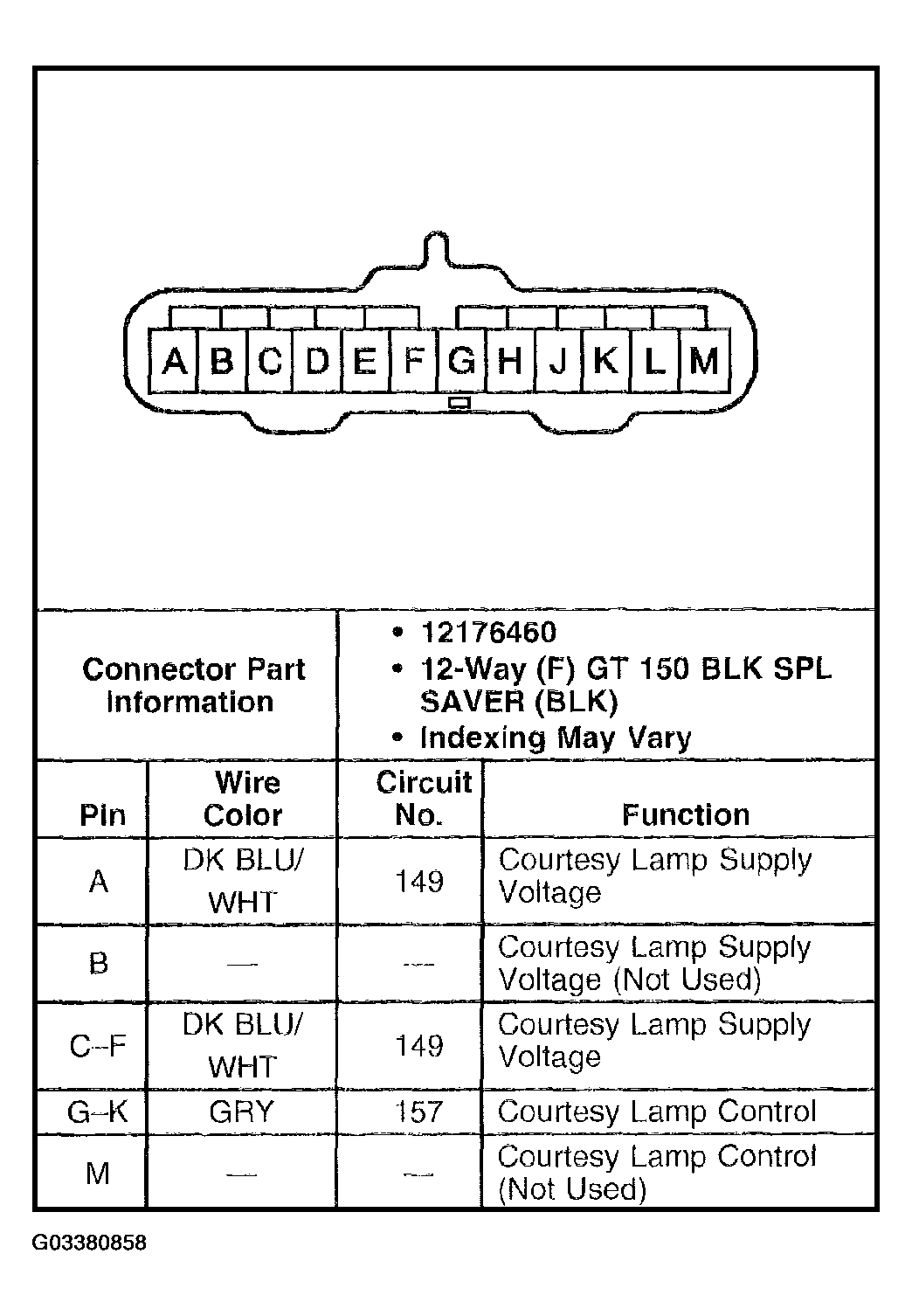

Fig 1: Splice Pack SP310 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
