Theft Deterrent Control Module Connector End View (2 Of 2)

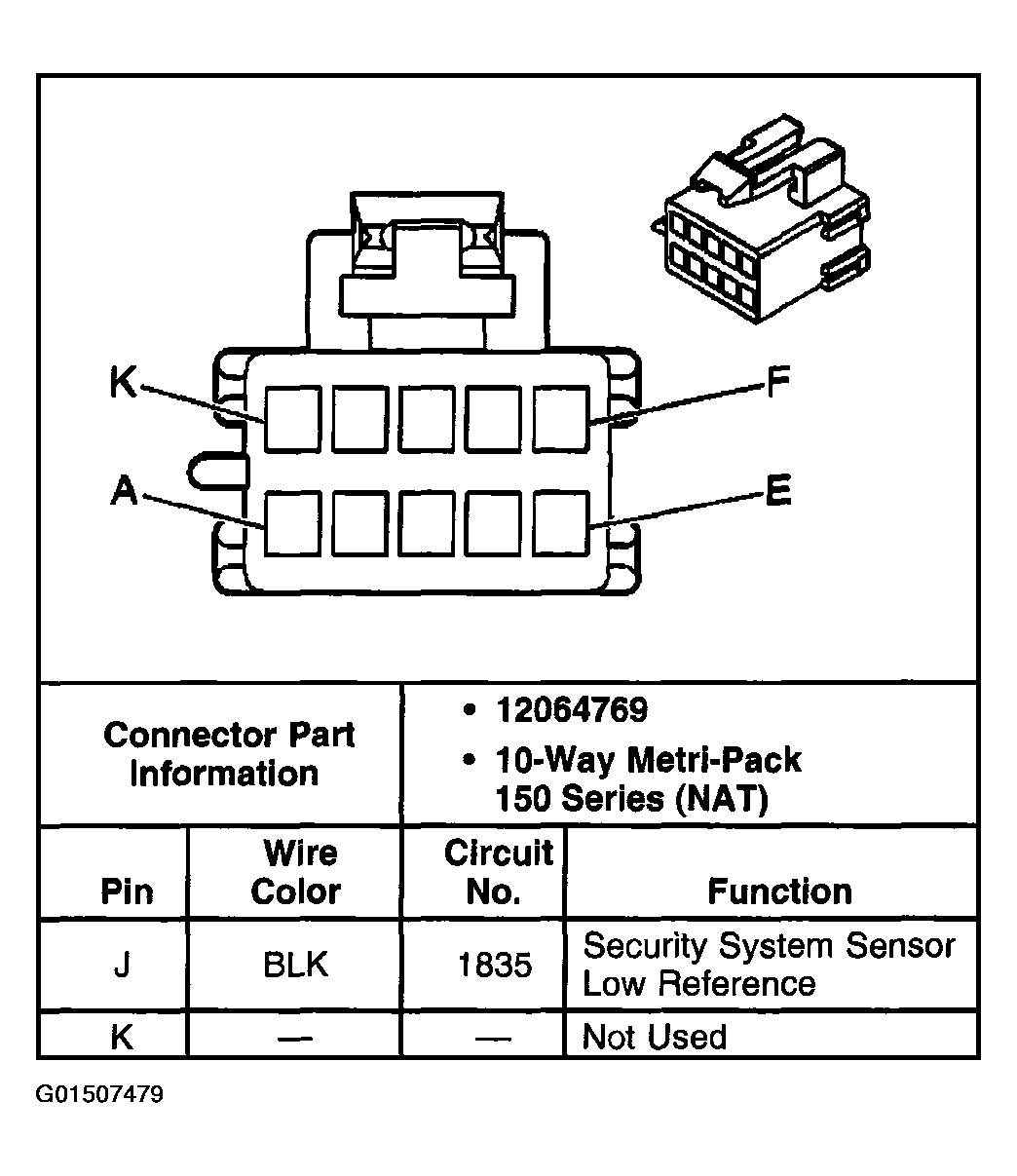

Fig 1: Theft Deterrent Control Module Connector End View (2 Of 2)
G01507479Courtesy of GENERAL MOTORS CORP.
