Theft Deterrent Exciter Module Connector End View

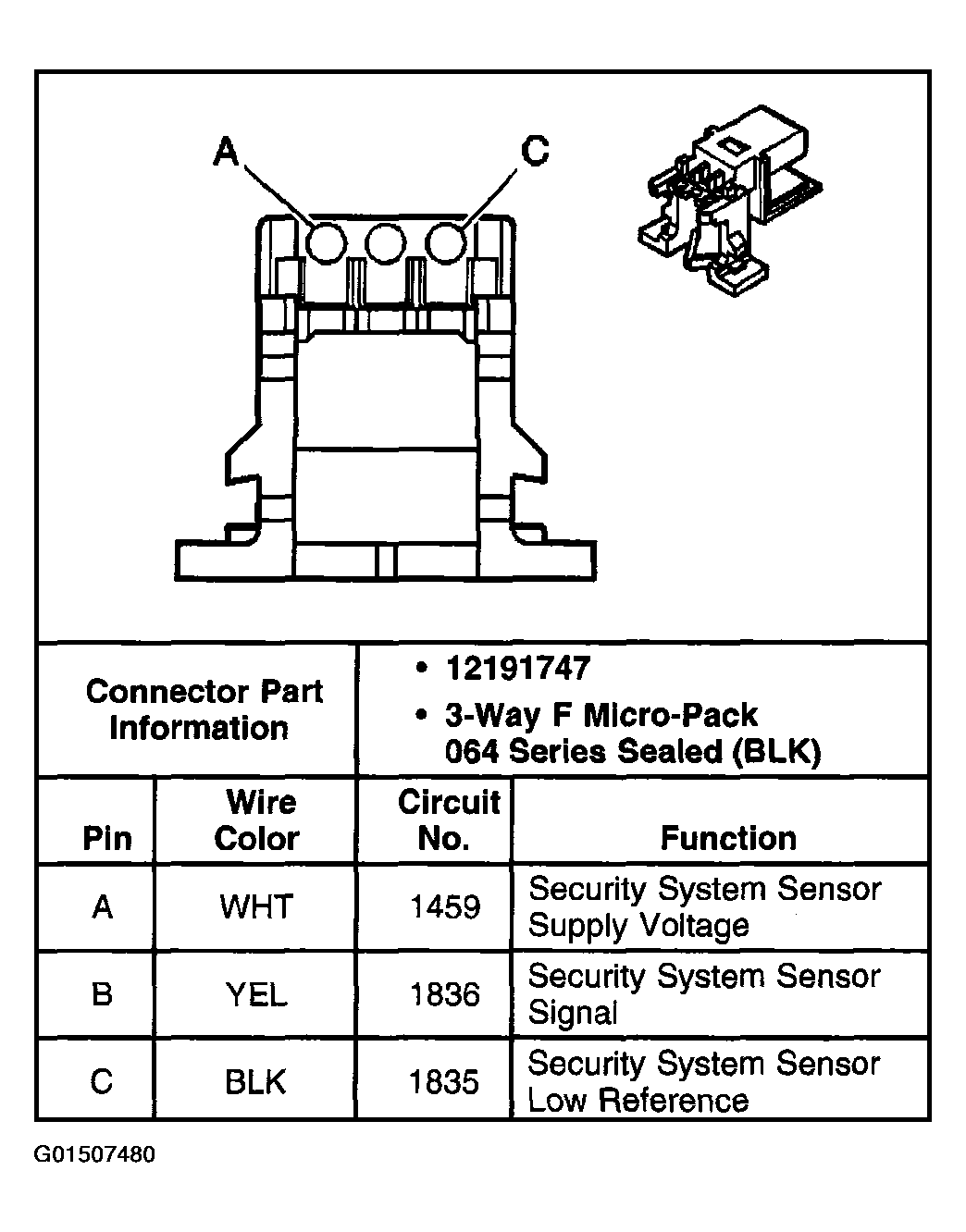

Fig 1: Theft Deterrent Exciter Module Connector End View
G01507480Courtesy of GENERAL MOTORS CORP.
