Upper Left Air Temperature Sensor Connector End View
Upper Left Air Temperature Sensor Connector End View

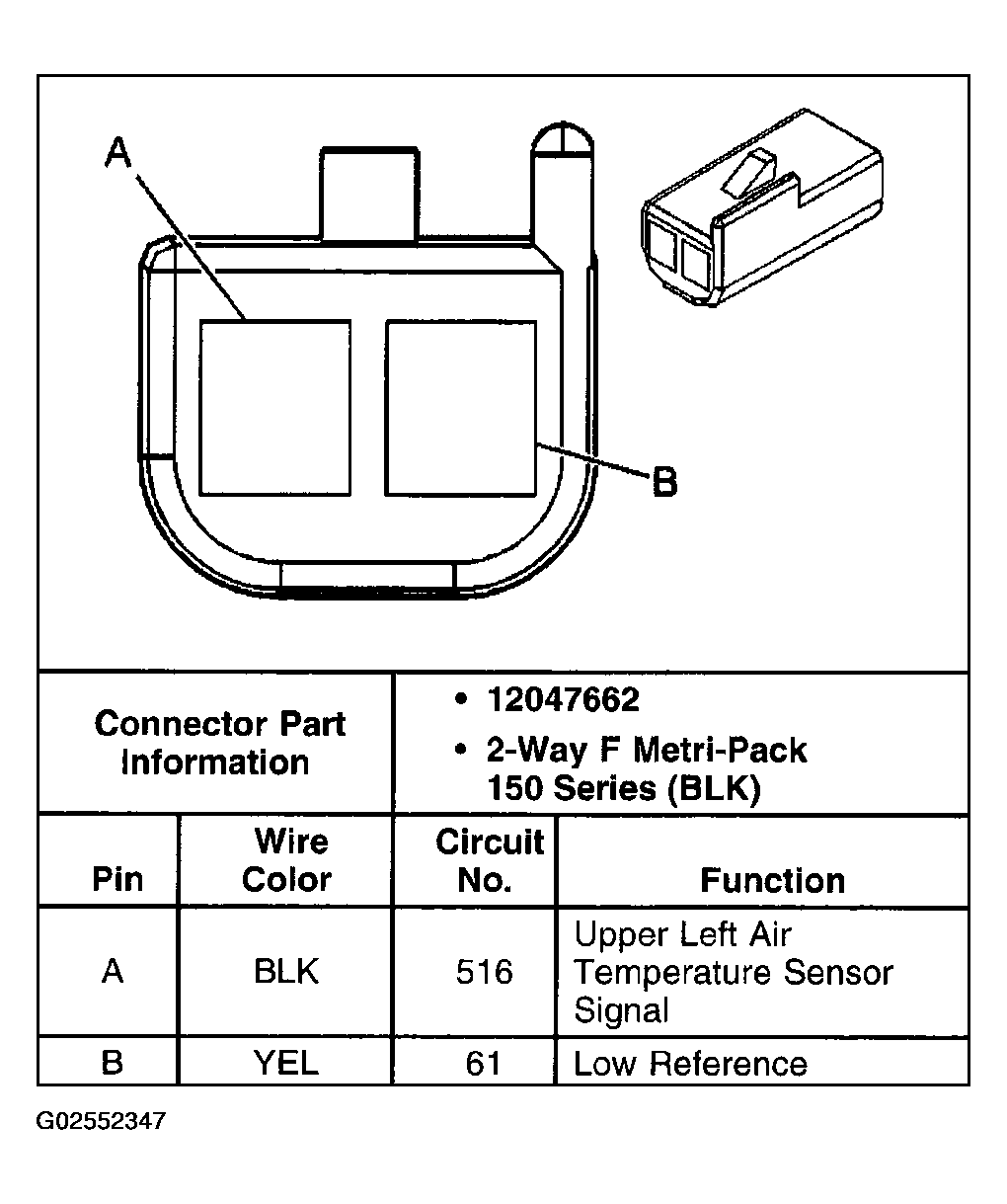

Fig 1: Upper Left Air Temperature Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
