Upper Right Air Temperature Sensor Connector End View
Upper Right Air Temperature Sensor Connector End View

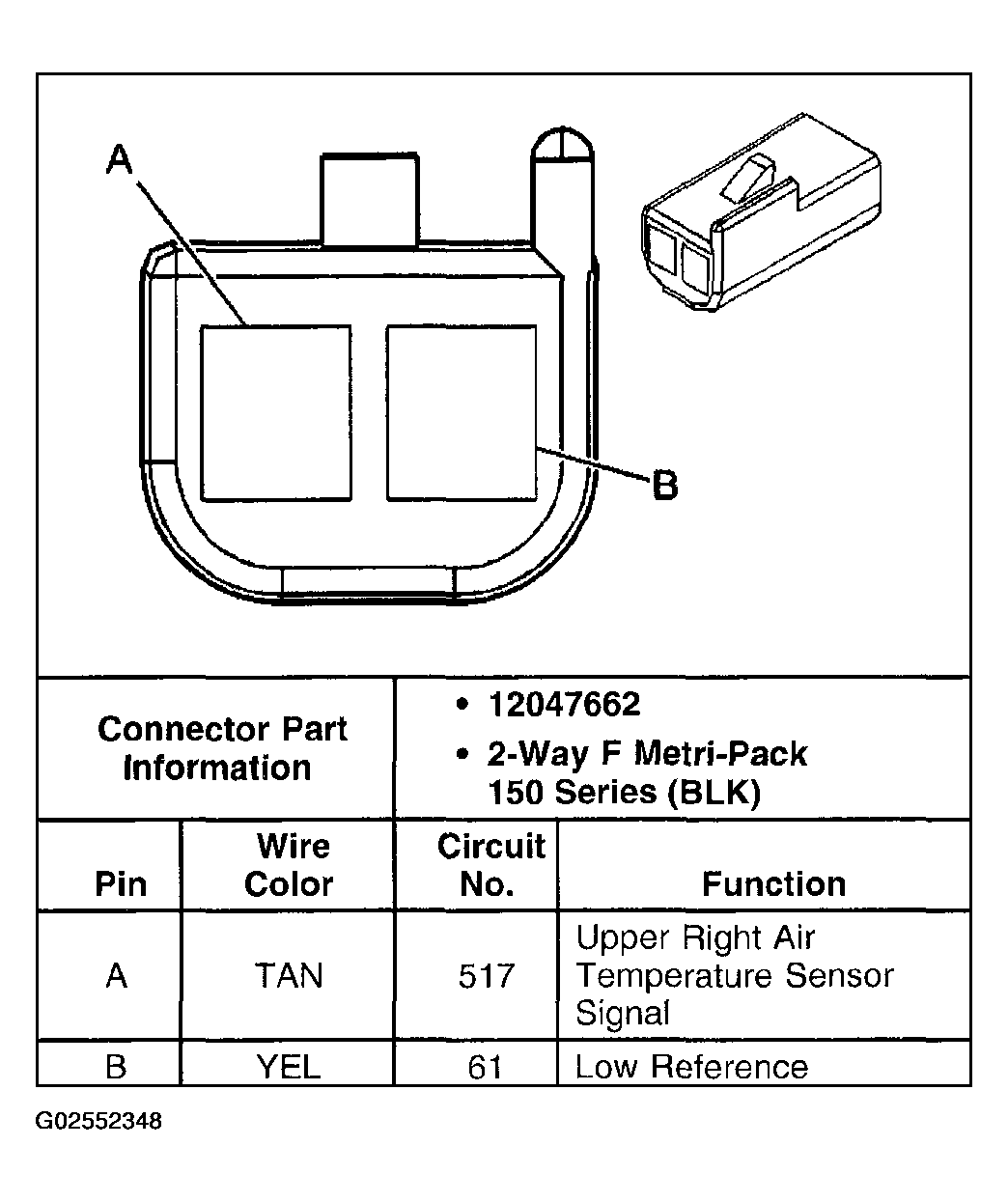

Fig 1: Upper Right Air Temperature Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
