Seat Belt Connector End Views

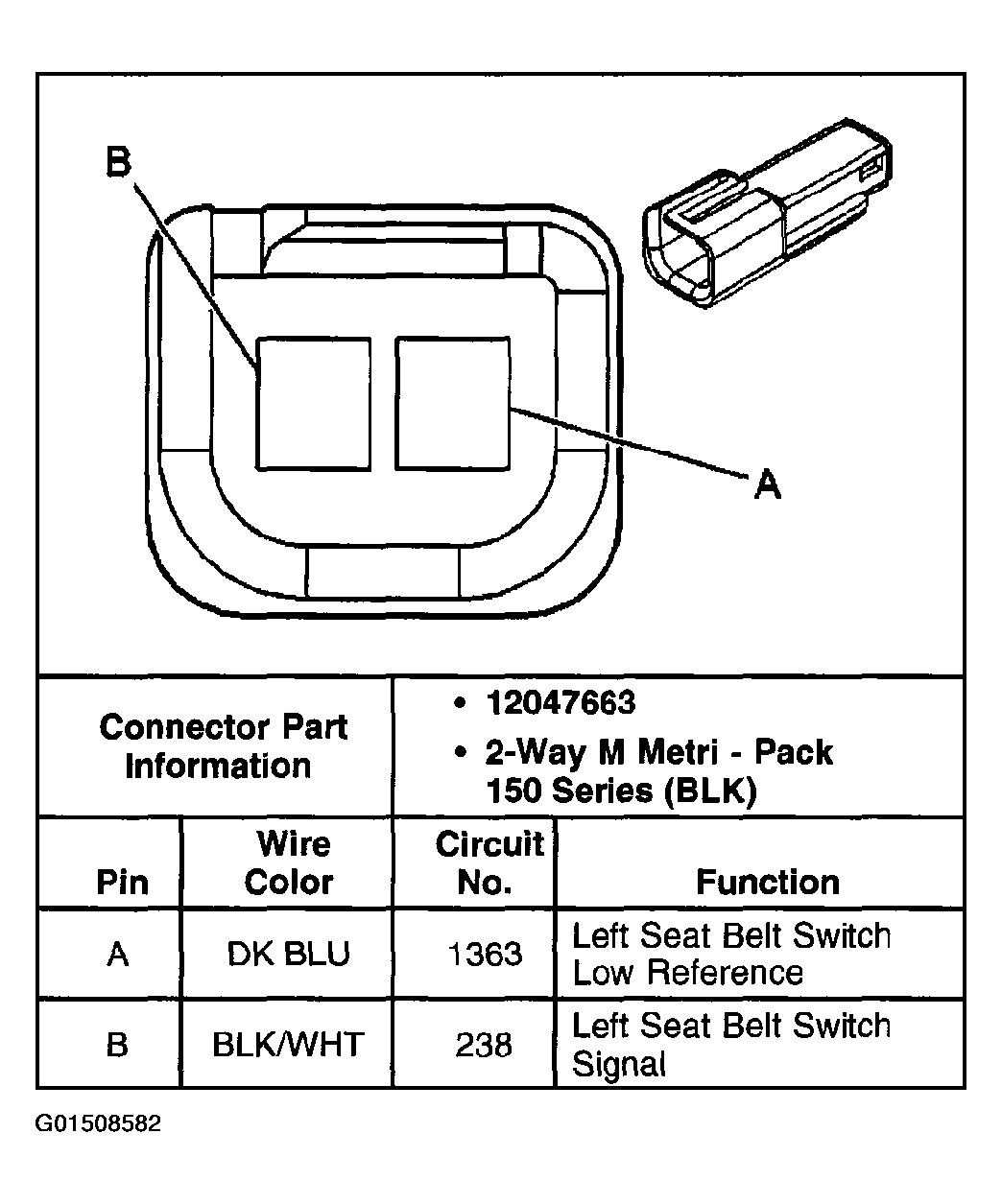

Fig 1: Seat Belt Switch Connector Terminal End View (Left Front)
G01508582Courtesy of GENERAL MOTORS CORP.
