Steering Controls Connector End Views

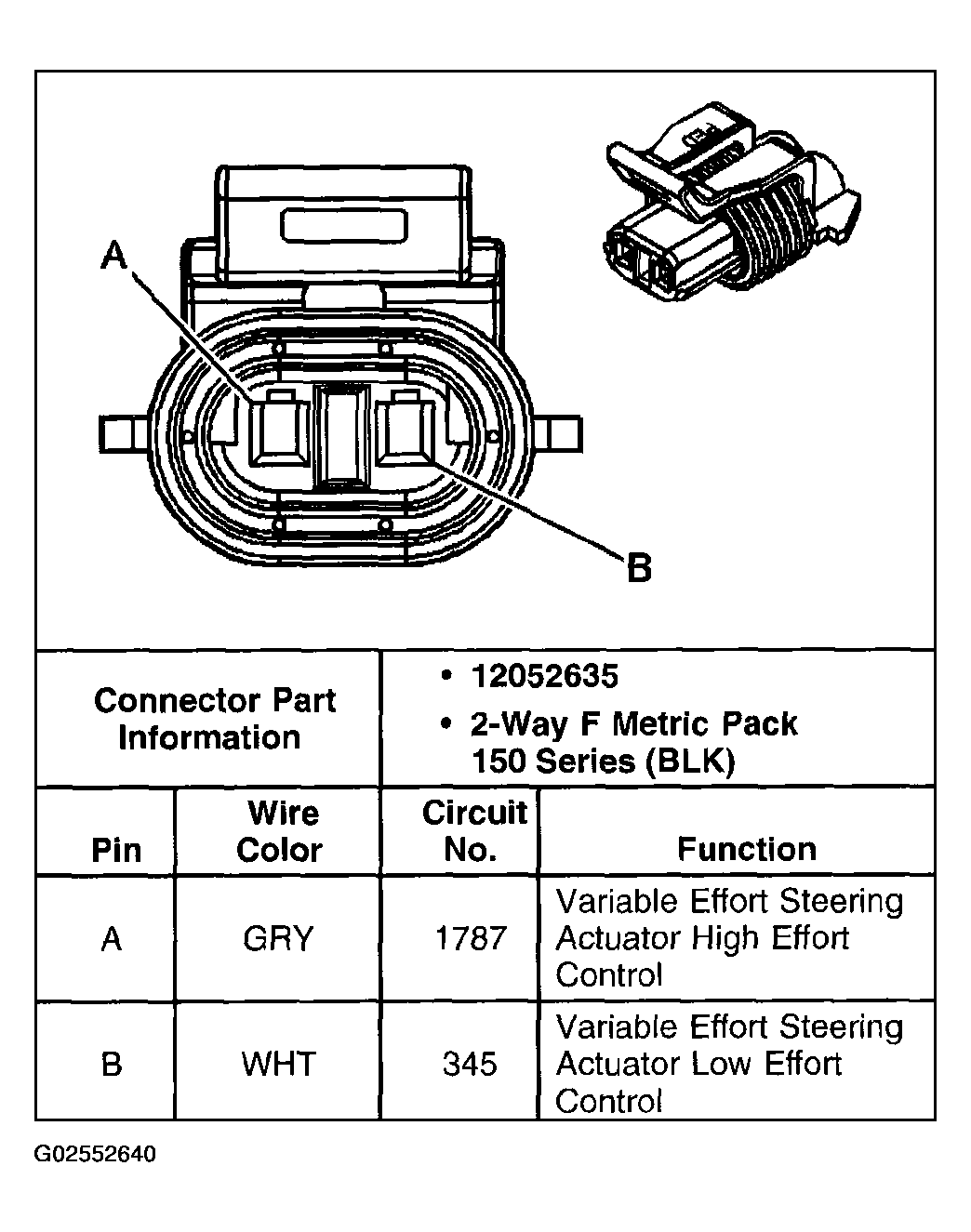

Fig 1: Variable Effort Steering Actuator
G02552640Courtesy of GENERAL MOTORS CORP.
