Power Steering Gear Disassembled View (Magnasteer)

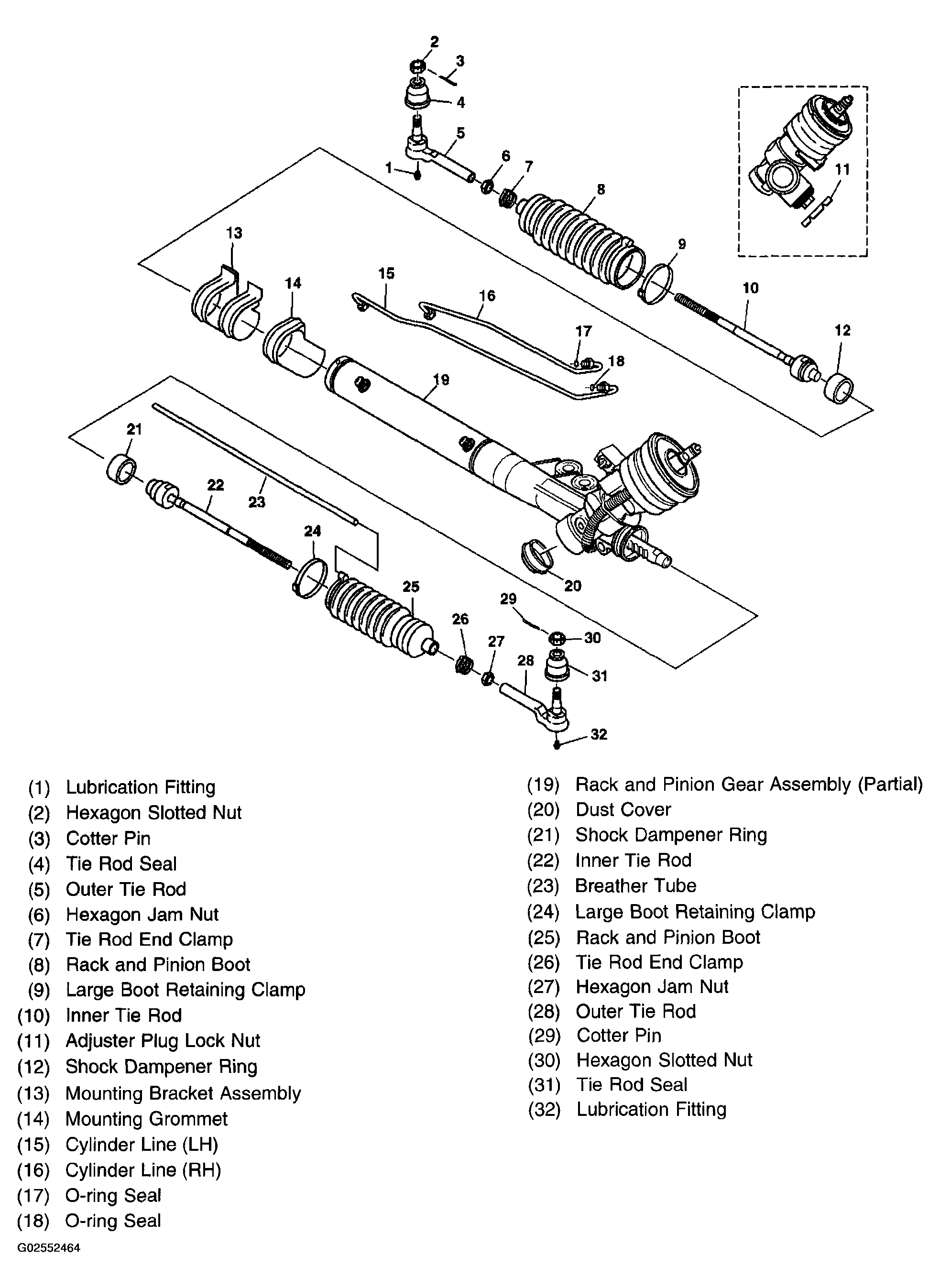

Fig 1: Disassembled View Of Magnasteer Power Steering Gear
G02552464Courtesy of GENERAL MOTORS CORP.
