Removal Procedure

  1. Carefully use a flat-bladed tool in order to release the outside mirror switch retaining tabs from the trim panel.
  2. Remove the outside mirror switch from the trim panel.
  3. Disconnect the electrical connector from the power folding mirror switch.

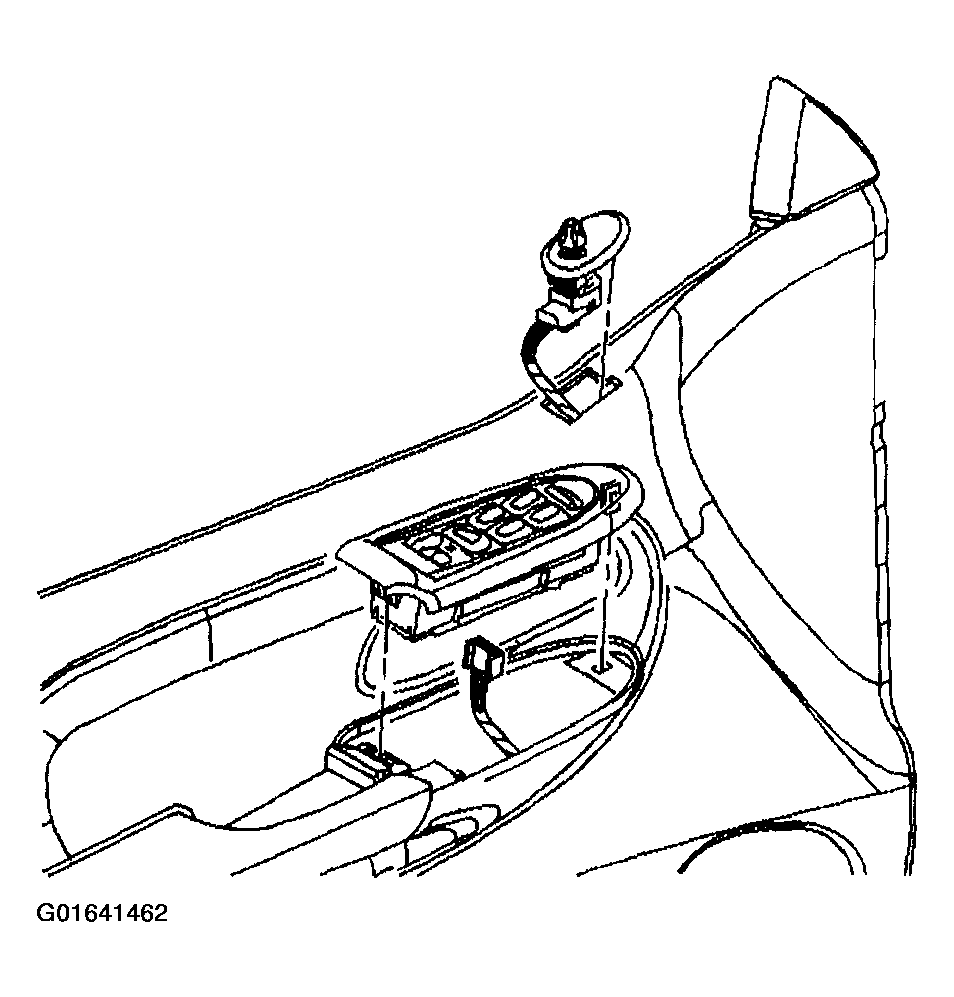

  4. Fig 1: Removing Power Mirror Switch
    G01641462Courtesy of GENERAL MOTORS CORP.
