Power Mirrors - Memory Functions Inoperative

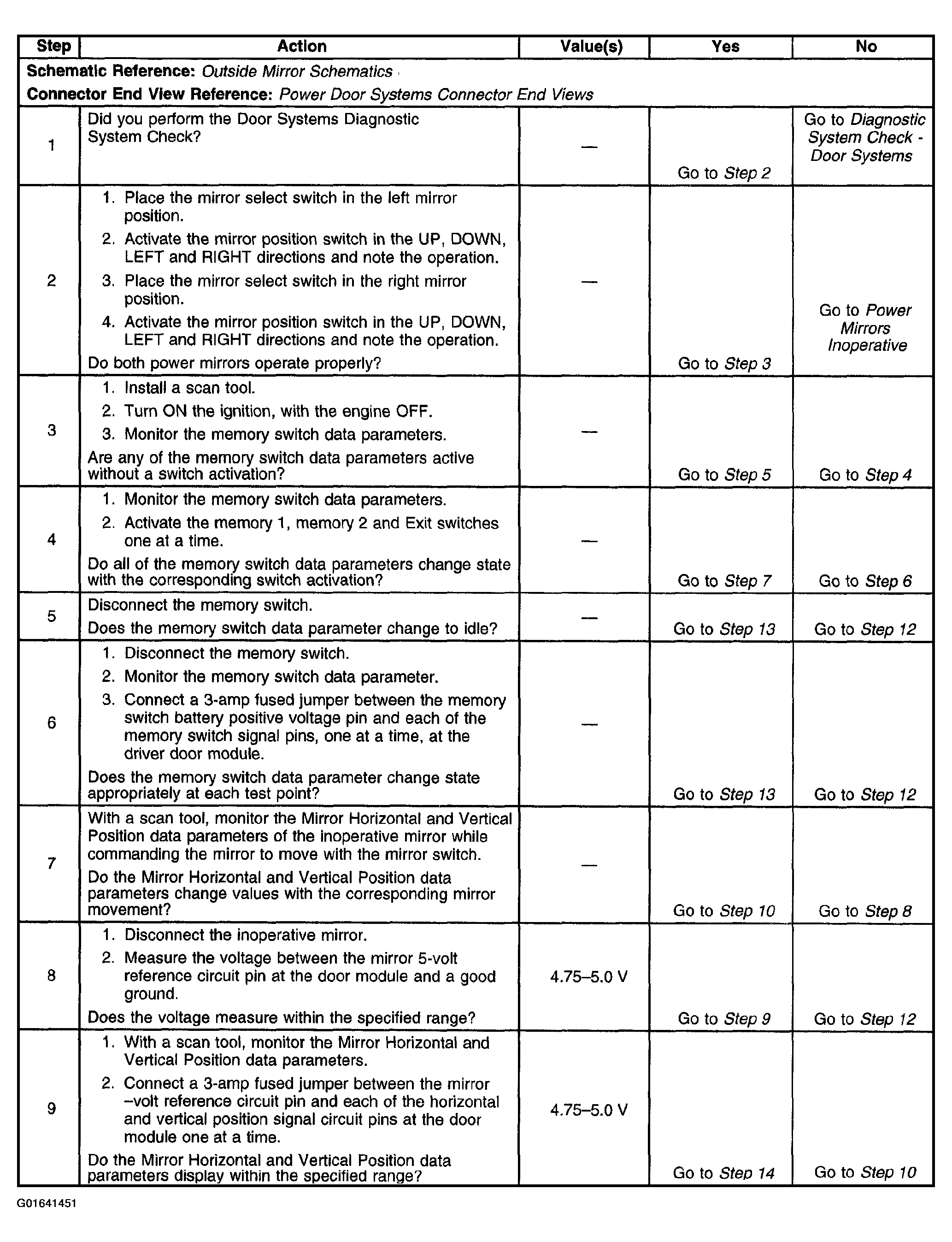

Fig 1: Power Mirrors Symptom Tests - Memory Functions Inoperative Procedure (Steps 1-9)

Courtesy of GENERAL MOTORS CORP.

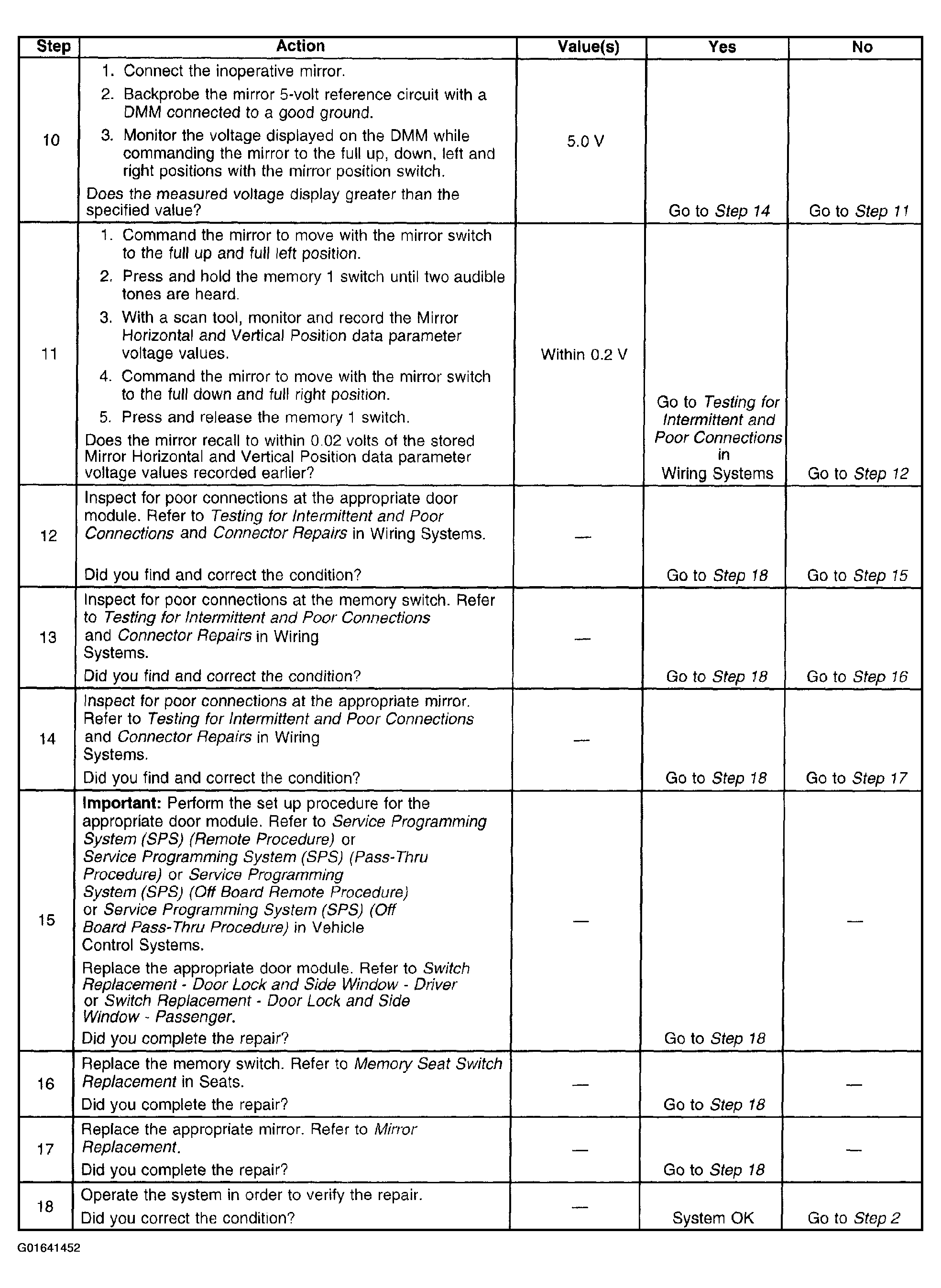

Fig 2: Power Mirrors Symptom Tests - Memory Functions Inoperative Procedure (Steps 10-18)

Courtesy of GENERAL MOTORS CORP.
