Removal Procedure
IMPORTANT:
- In order to identify the electrochromic mirror (1), take note of the glass bezel thickness of 5 mm (3/16 in).
- Only the electrochromic mirror (1) has identification numbers located at the bottom center edge of the glass.
- In order to identify the non-electrochromic mirror (2), take note of the glass bezel thickness of 3 mm (1/8 in).
- The electrochromic glass is not serviceable.
Replace the mirror only as an assembly. Refer to MIRROR REPLACEMENT .
CAUTION:
Approved safety glasses and gloves should be worn when performing this procedure to reduce the chance of personal Injury.
- To remove the non-electrochmic glass, manually tilt the top edge of the glass away from the mirror housing in order to gain access to the retaining tab located behind the glass.

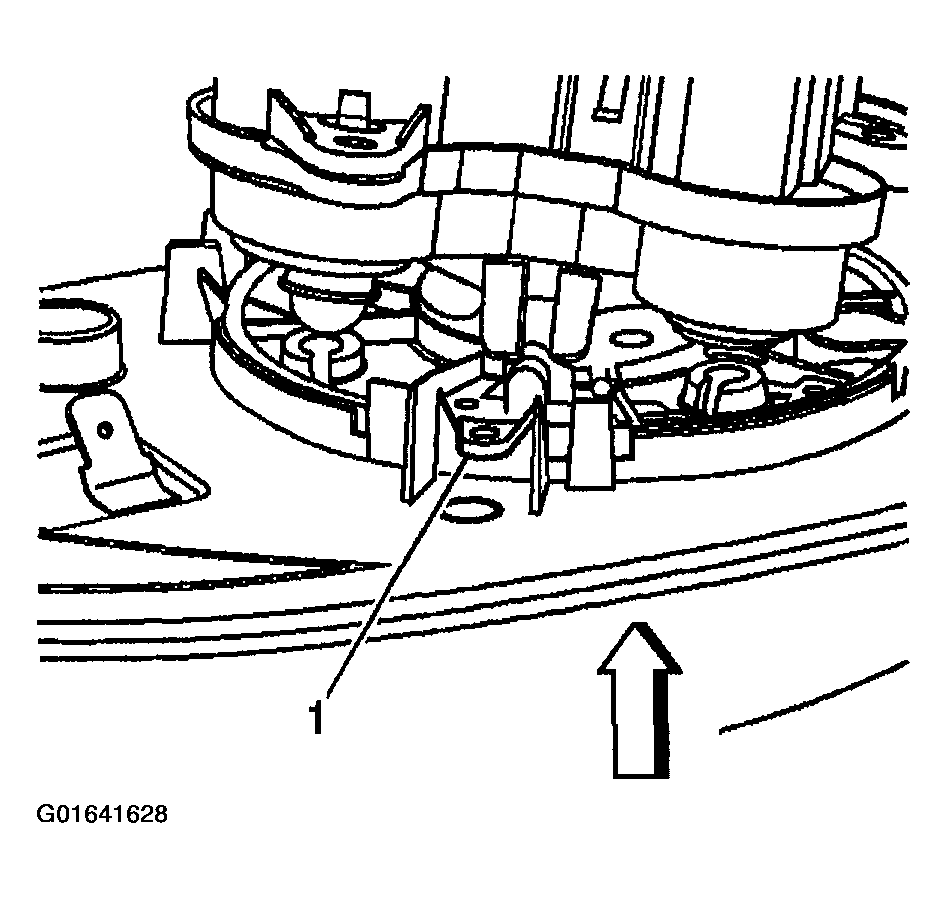

- Using a flat-bladed tool, carefully release the upper tab (1) that retains the glass to the actuator while simultaneously tilting the glass away from the mirror housing.
- Partially remove the glass from the mirror assembly.
- Disconnect the 2 heated mirror connectors from the glass, if equipped.
- Remove the glass from the mirror assembly.
