Installation Procedure

  1. Install the weatherstrip side retainer to the windshield pillar.

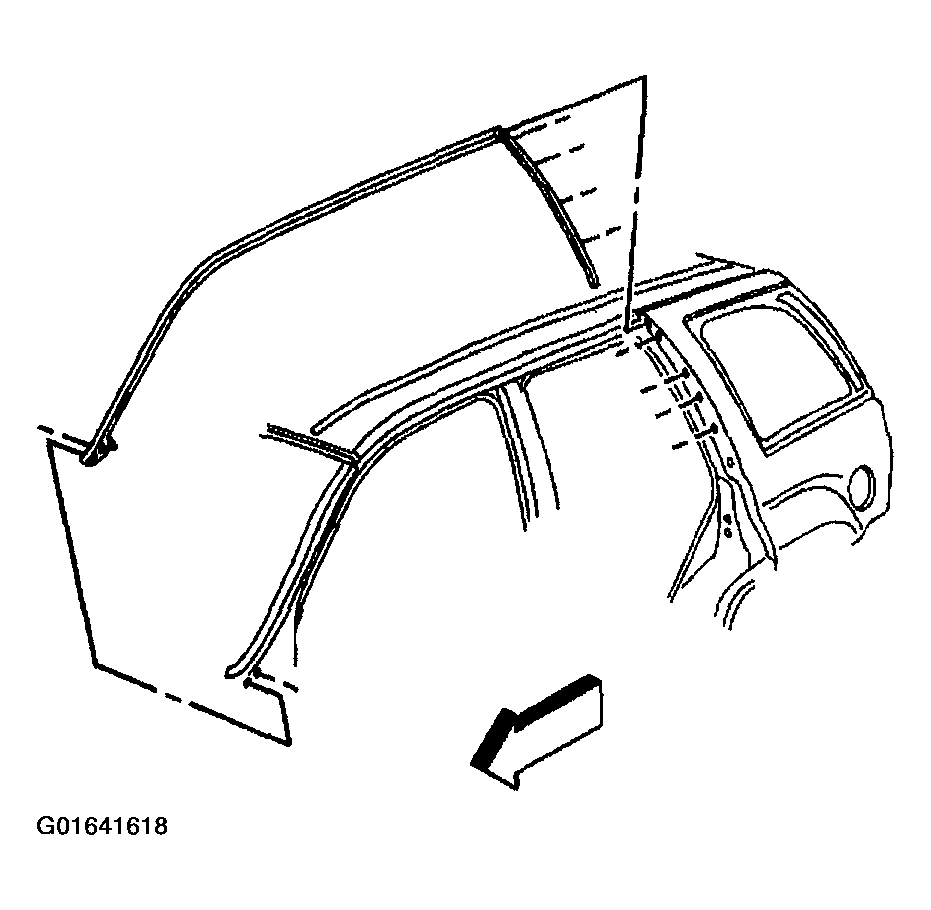

    2. Fig 1: Installing Weatherstrip Side Retainer To Windshield Pillar - Auxiliary
    G01641618Courtesy of GENERAL MOTORS CORP.
  2. Install the screws to the weatherstrip side retainer.

    Tighten

    Tighten the screws to the weatherstrip side retainer to 2 N.m (18 lb in).

  3. Install the push pin retainers to the front door sealing weatherstrip located at the base of the pillar.
  4. Close the doors.
