Stationary Windows Connector End Views
›
Rear Window Defogger C2
Rear Window Defogger C2

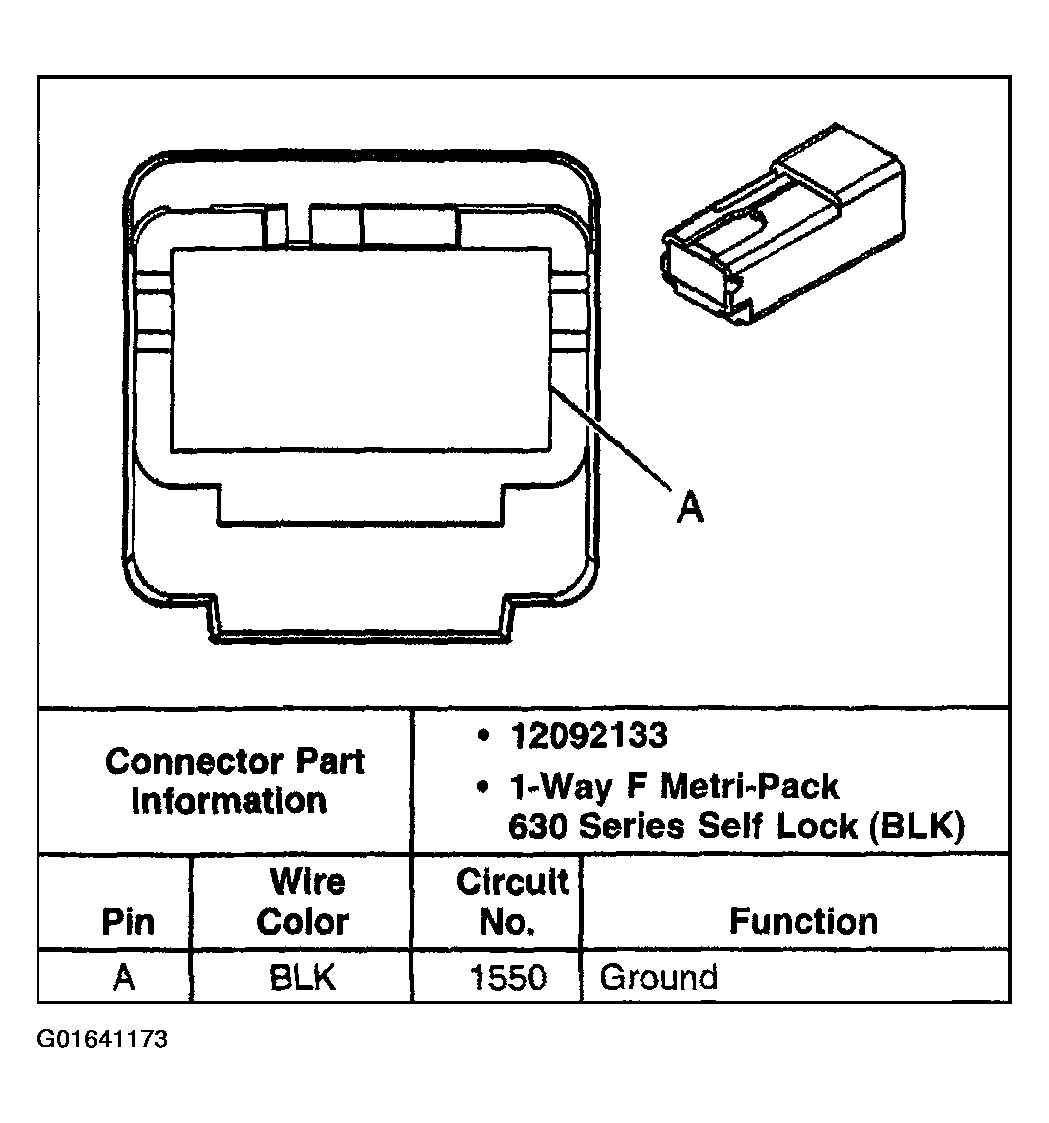

Fig 1: Identifying Rear Window Defogger C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
