Installation Procedure

Slide the mirror onto the support.

Fig 1: Sliding Mirror Onto Support
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the set screw.
Tighten

Tighten the set screw to 2 N.m (18 lb in).
Connect the electrical connector (1), if equipped.

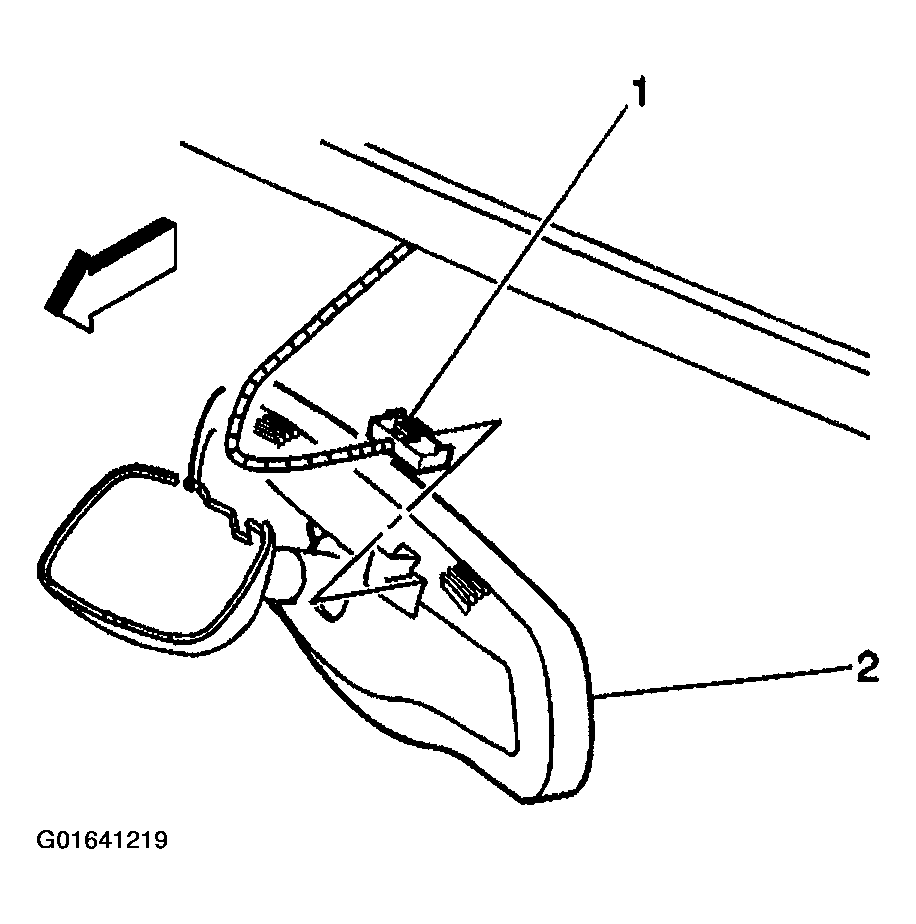

Fig 2: Connecting Electrical Connector
Courtesy of GENERAL MOTORS CORP.
