Defogger Schematics

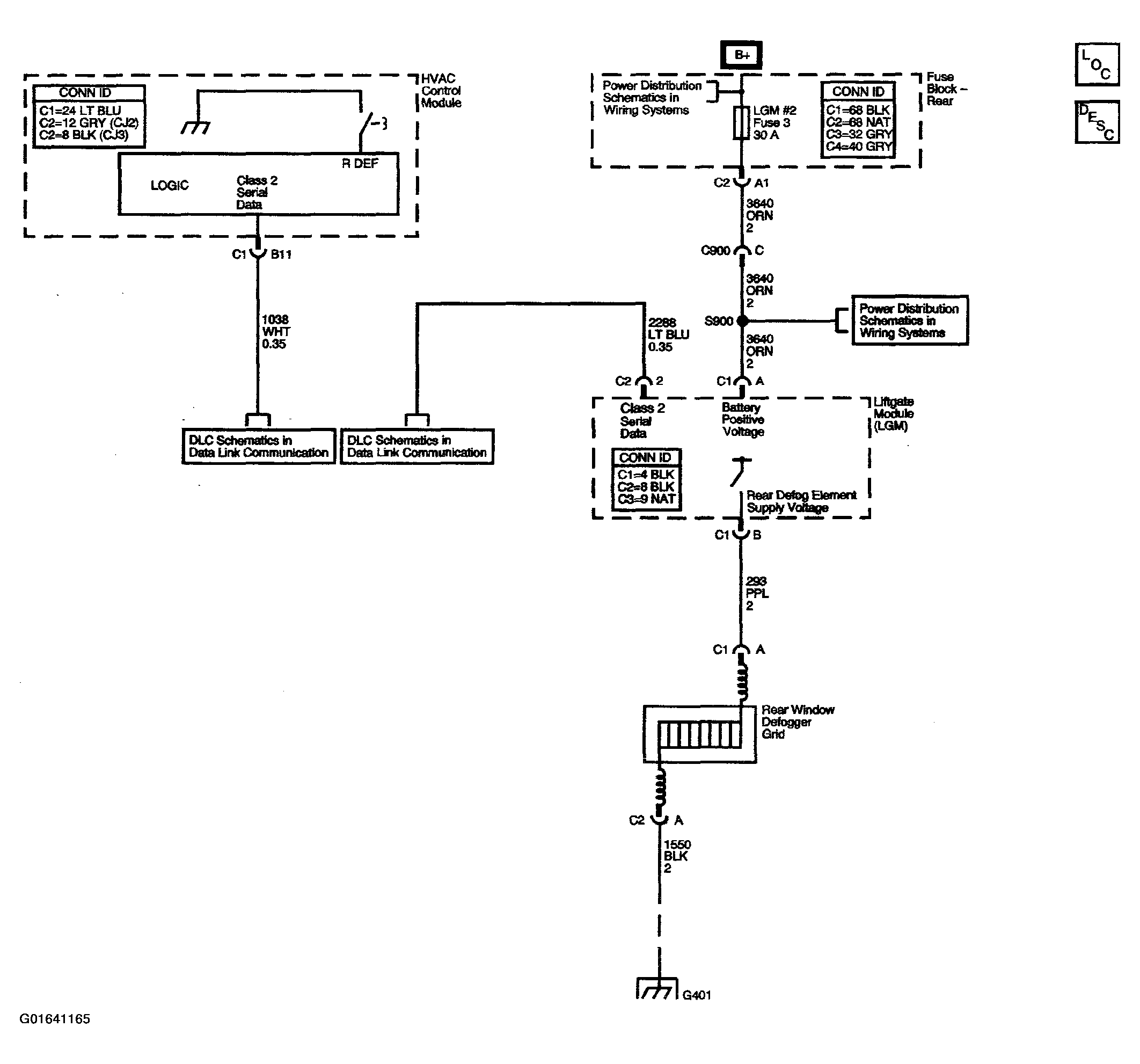

Fig 1: Defogger Schematic Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
