Home › Oldsmobile › 2003 › Bravada AWD › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector End View › Air Temperature Sensor Connector End View - Lower Left

Air Temperature Sensor Connector End View - Lower Left

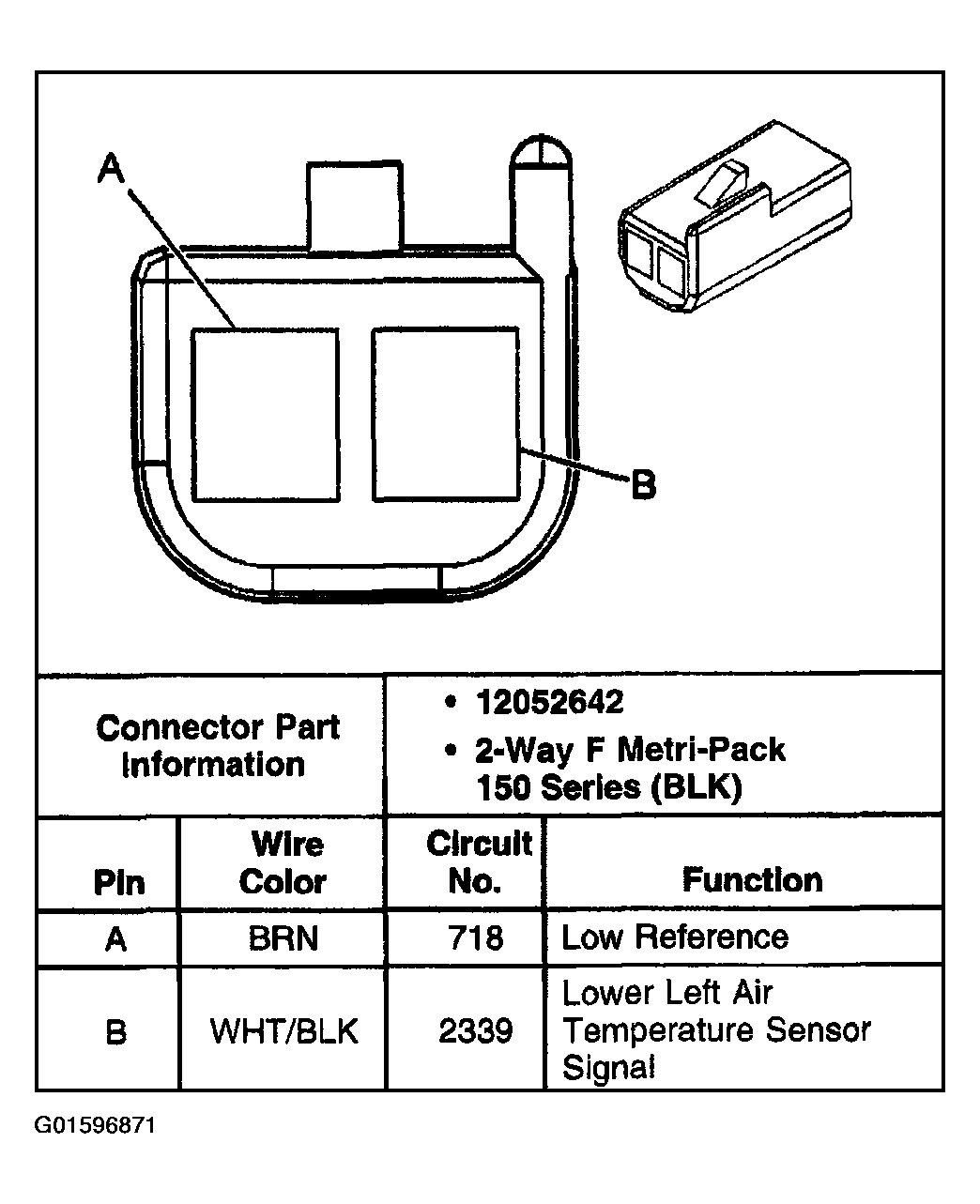

Fig 1: Air Temperature Sensor Connector End View - Lower Left
G01596871Courtesy of GENERAL MOTORS CORP.
