Ambient Light/Sunload Sensor Assembly Connector End View
Ambient Light/Sunload Sensor Assembly Connector End View

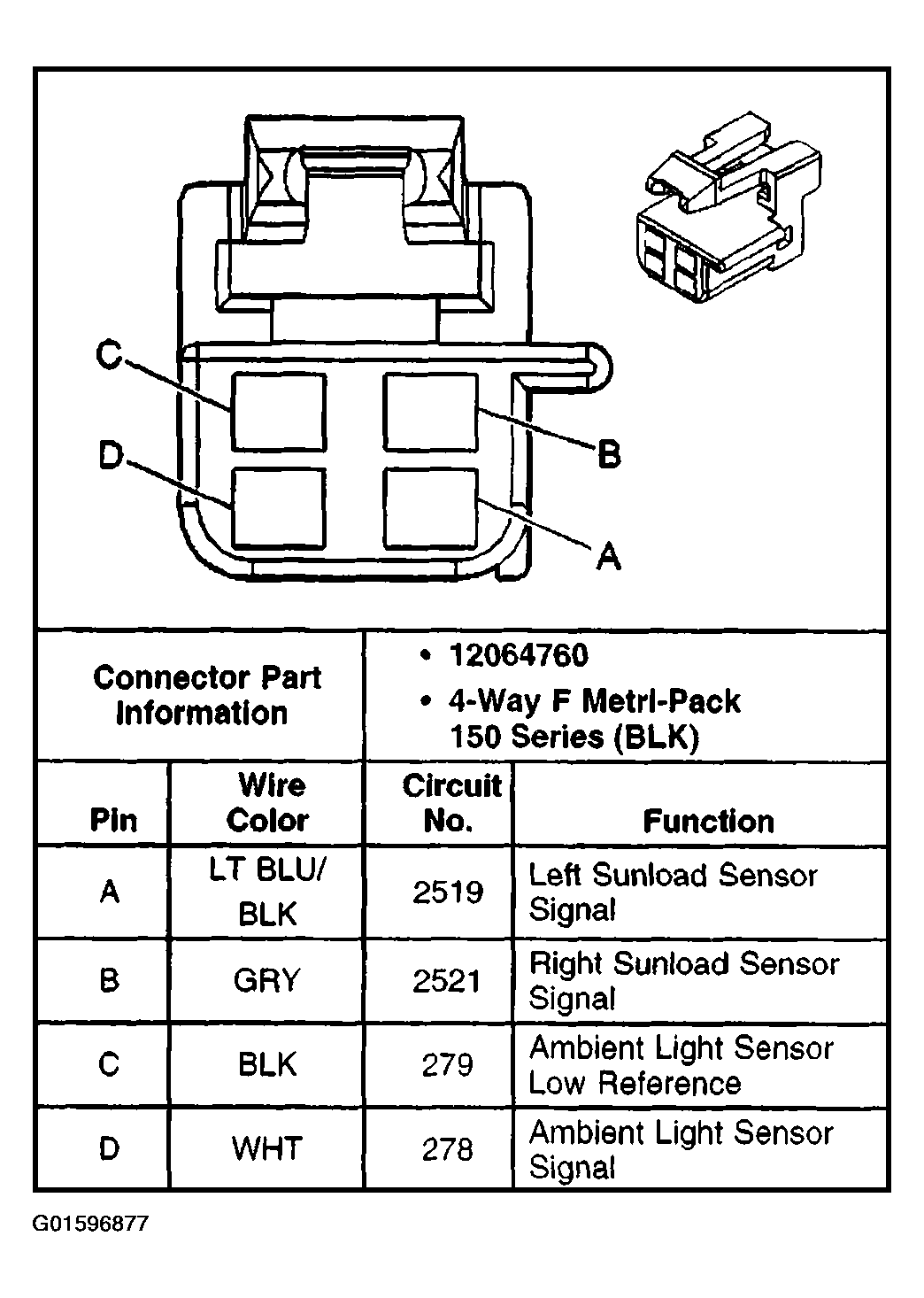

Fig 1: Ambient Light/Sunload Sensor Assembly Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
