Blower Motor Connector End View

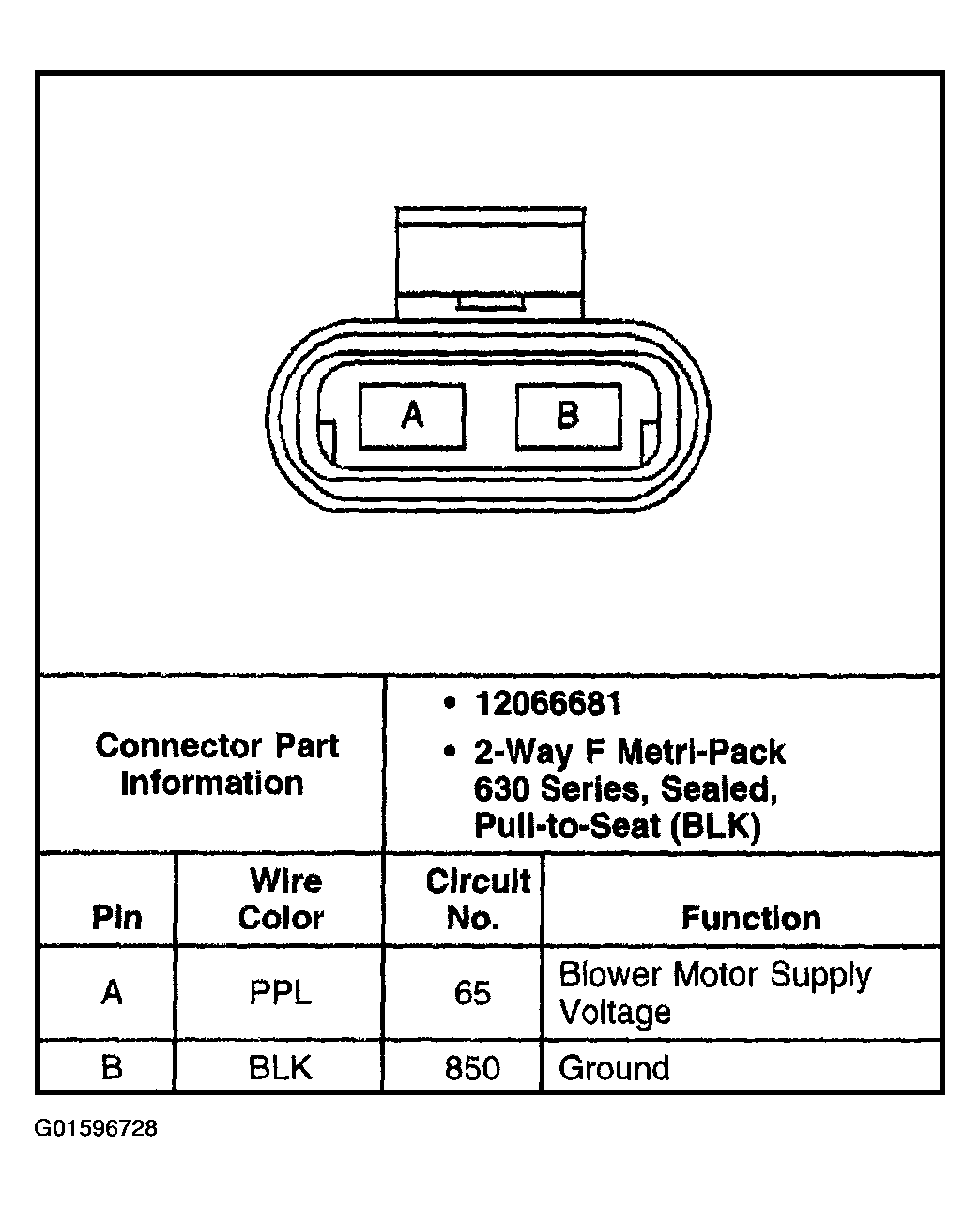

Fig 1: Blower Motor Connector End View
G01596728Courtesy of GENERAL MOTORS CORP.

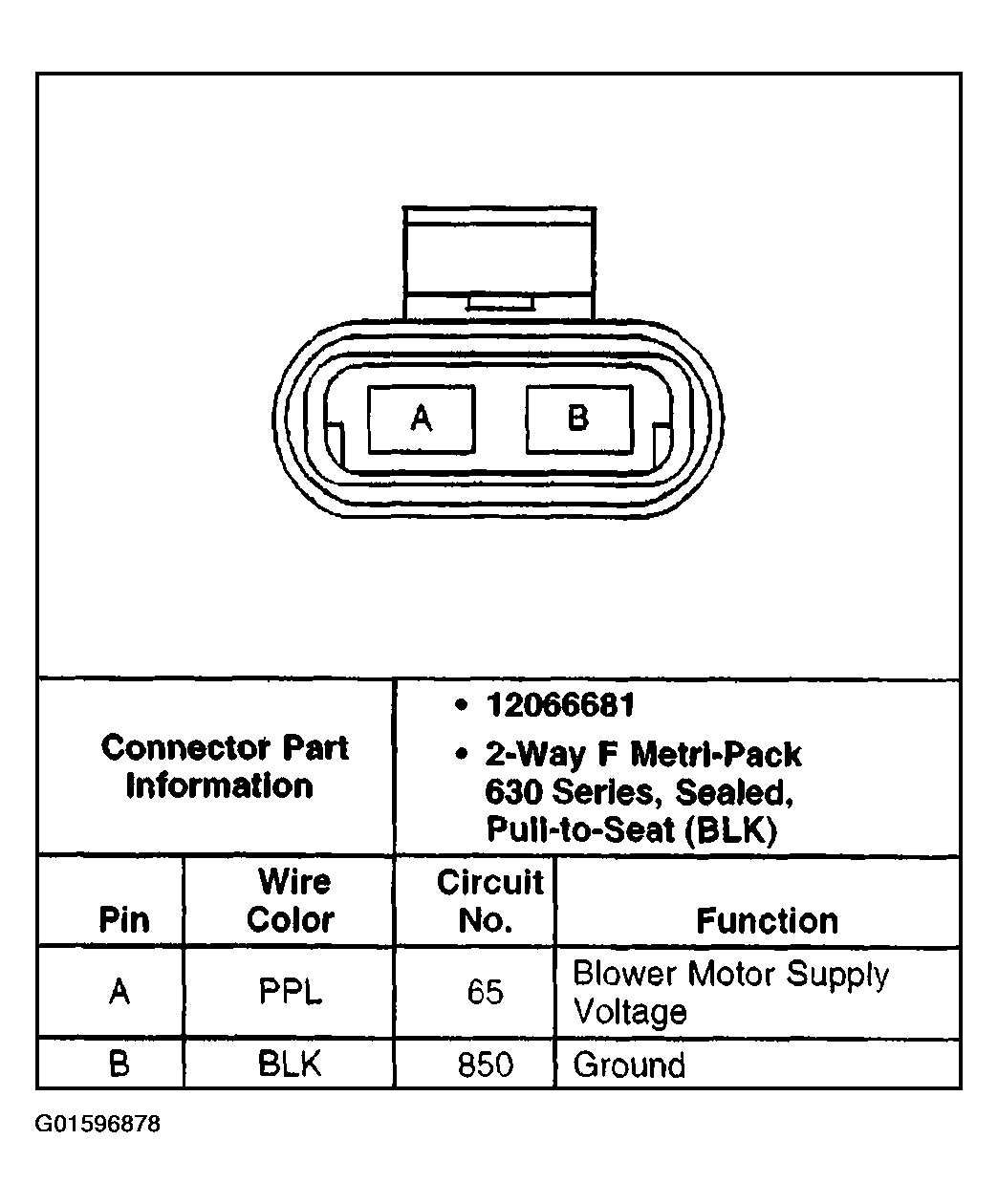

Fig 1: Blower Motor Connector End View
G01596878Courtesy of GENERAL MOTORS CORP.
