Defrost Actuator Connector End View

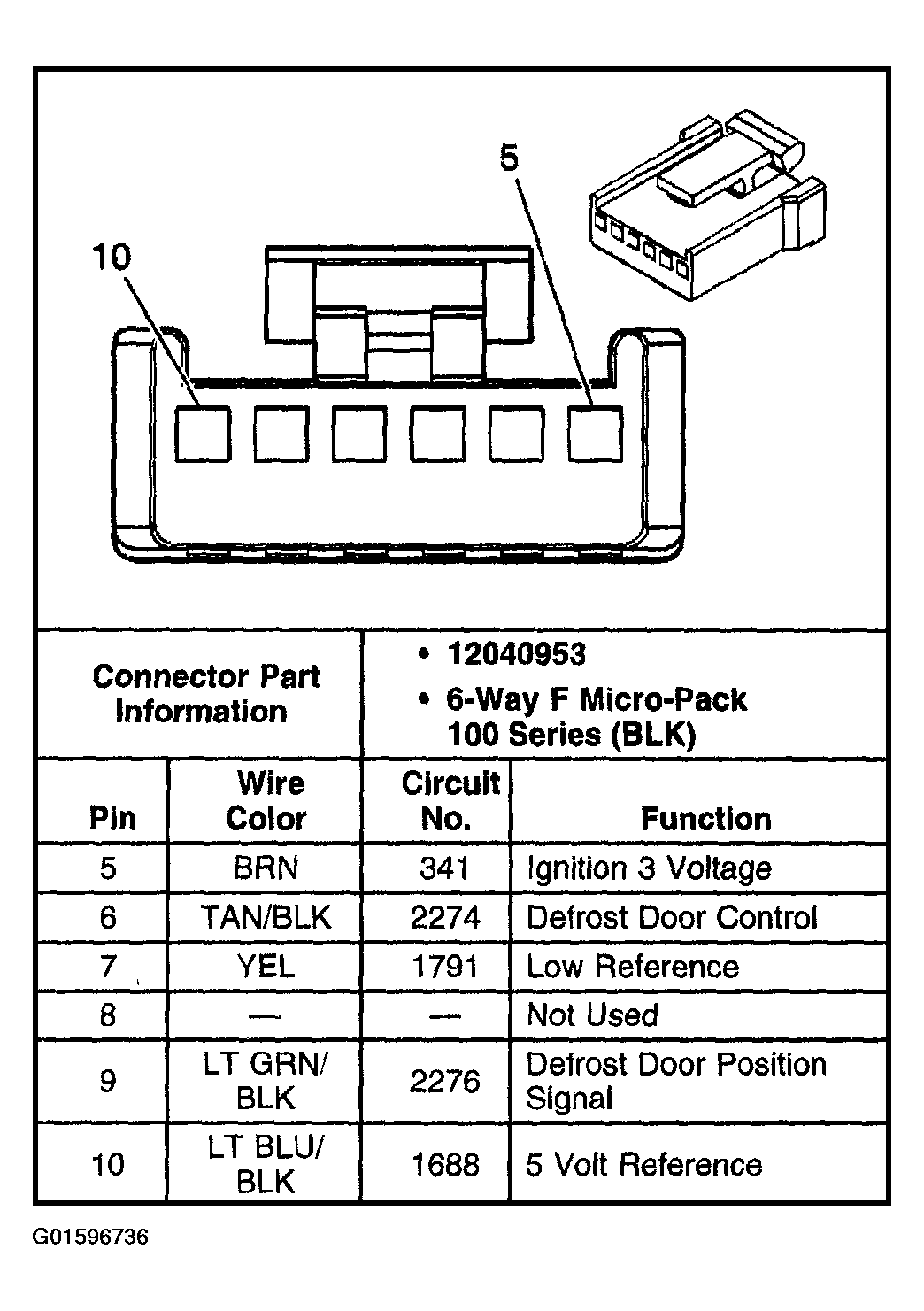

Fig 1: Defrost Actuator Connector End View
G01596736Courtesy of GENERAL MOTORS CORP.

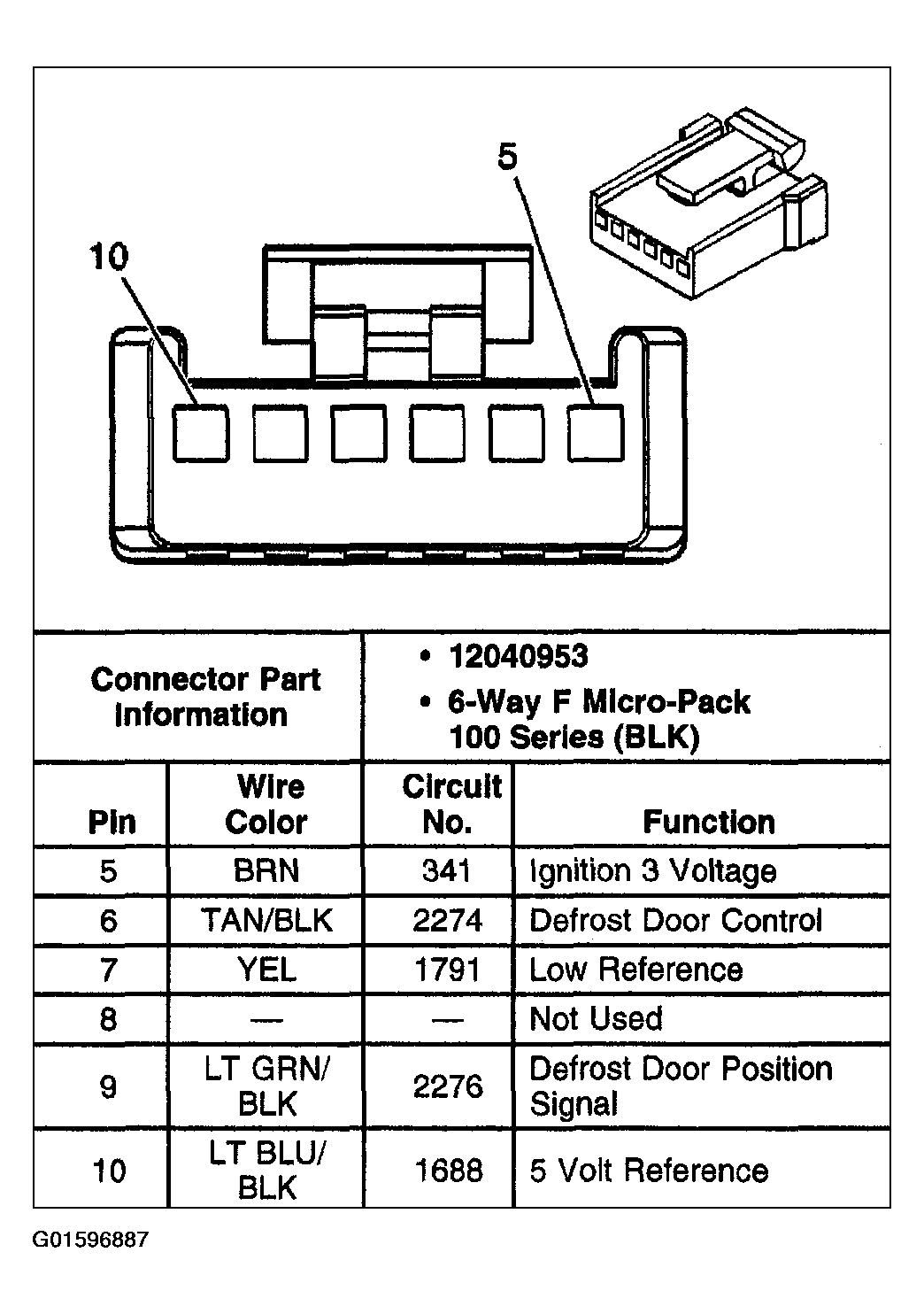

Fig 1: Defrost Actuator Connector End View
G01596887Courtesy of GENERAL MOTORS CORP.
