Driver Door Module (DDM) Connector End View C2

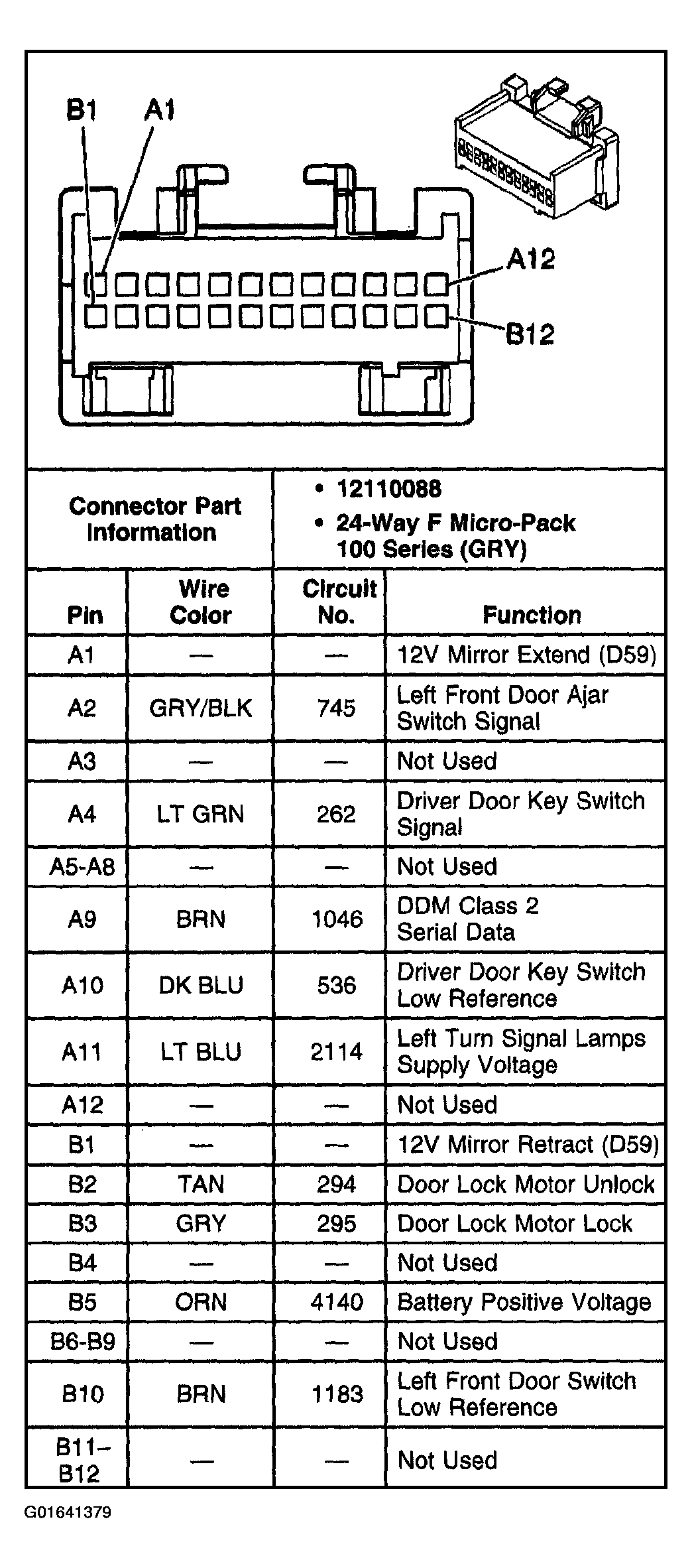

Fig 1: Driver Door Module (DDM) Connector End View C2
G01641379Courtesy of GENERAL MOTORS CORP.
