Driver Window Motor Connector End View

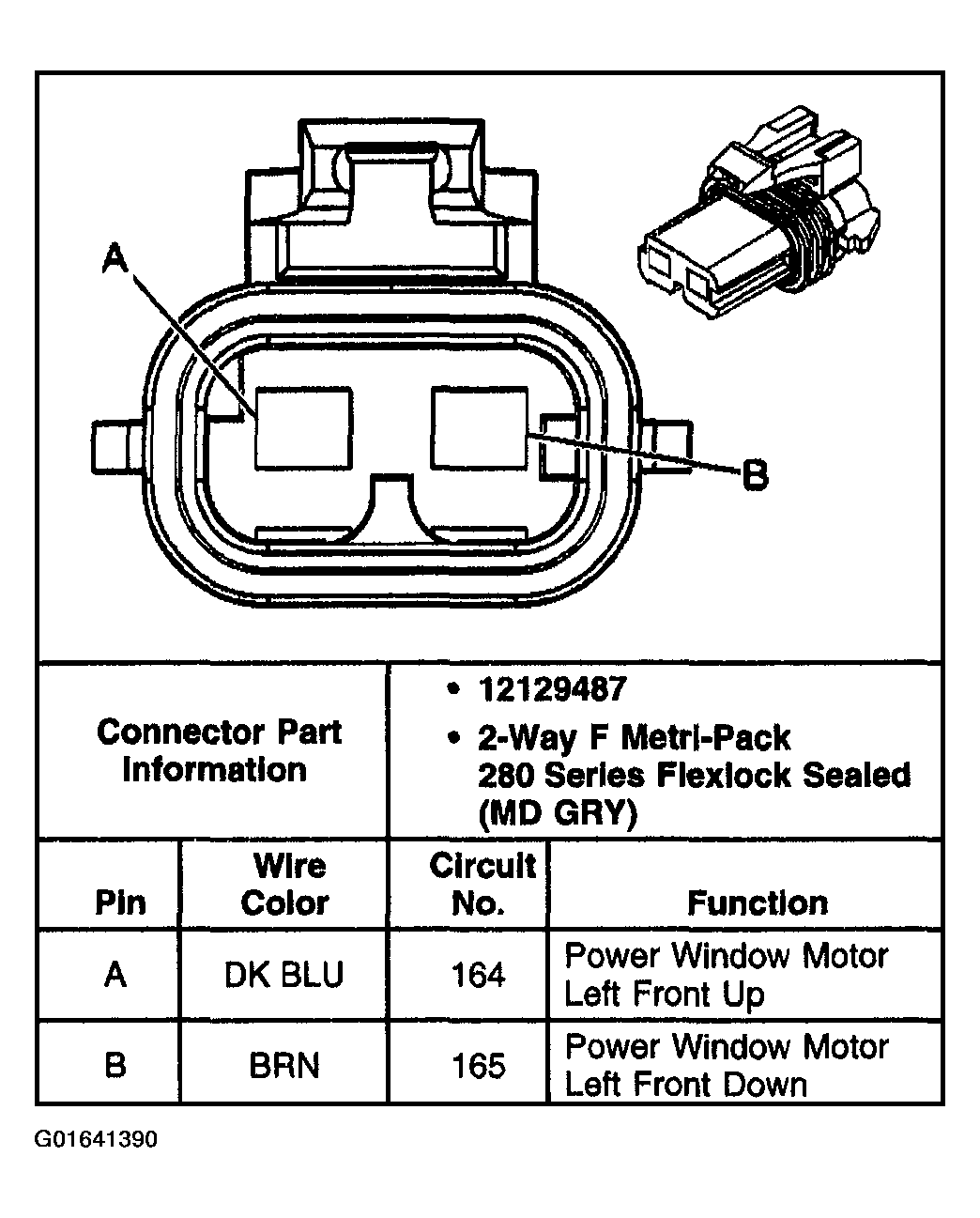

Fig 1: Driver Window Motor Connector End View
G01641390Courtesy of GENERAL MOTORS CORP.
