Connector End View
›
Front Axle Actuator Connector End View
Front Axle Actuator Connector End View

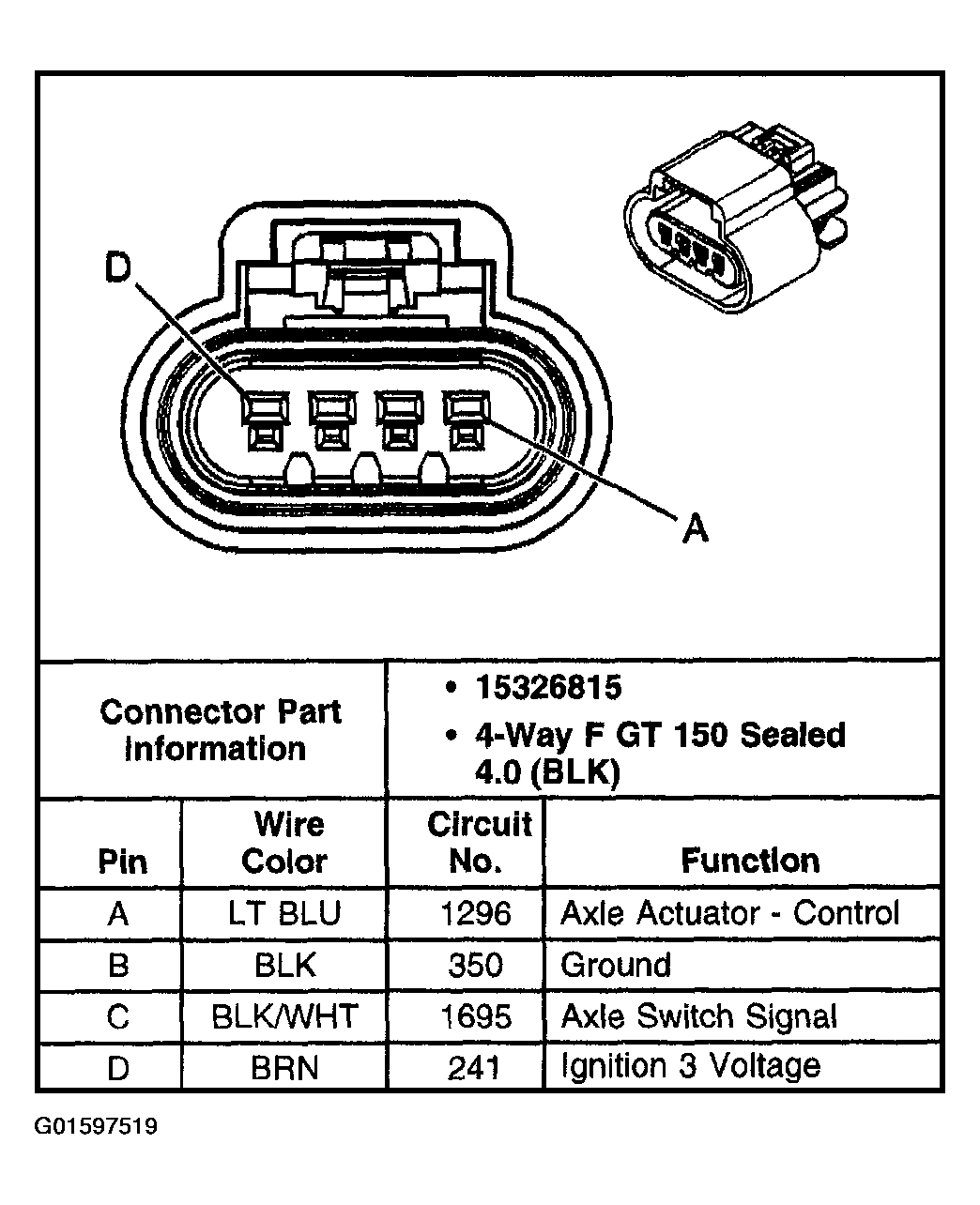

Fig 1: Front Axle Actuator Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
