Front Passenger Door Module (FPDM) Connector End View C1

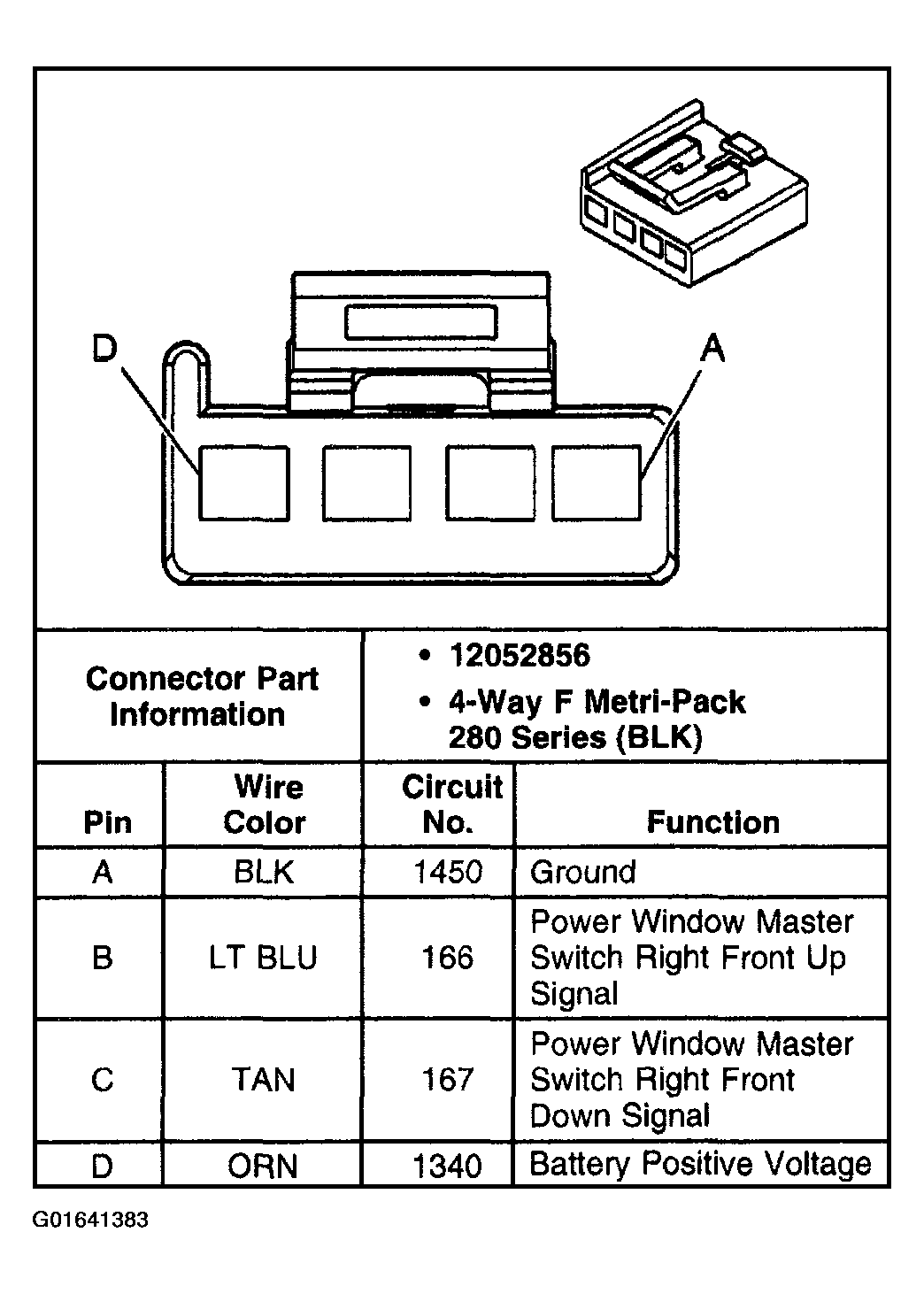

Fig 1: Front Passenger Door Module (FPDM) Connector End View C1
G01641383Courtesy of GENERAL MOTORS CORP.
